B-12 PCWS 2015 Setup Guide - 2nd Edition
Connector and Cable Diagrams
Hook-up Cables
8-Pin to 6-Pin Hook-up RS422 Cable (300319-001)
This cable brings out the RS422 signals from the IDN port connector to a 6-pin
wall plate connector or directly to the IDN connector on the printing device.

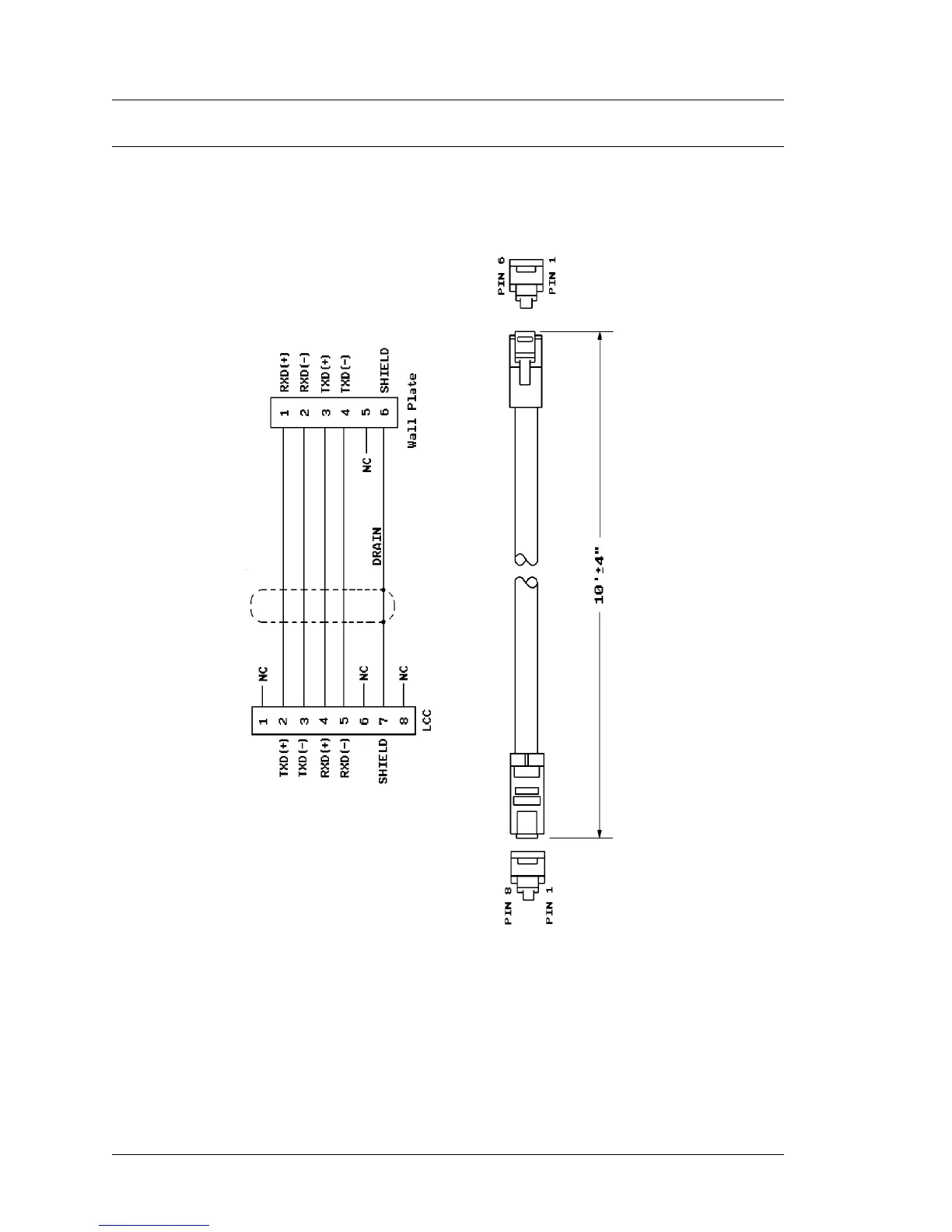

Figure B-17: 8-Pin to 6-Pin IDN Hook-up Cable Diagram
