1. HI: Determines the high scale. The reference scale changes when the high scale is changed.
2. LO: Determines the low scale. The reference scale changes when the low scale is changed.
3. VAL: Determines the reference scale and position. The high and low scales remain
unchanged when the reference scale is changed.
NOTE
z The high scale should not be smaller than the low scale; the low scale should not
be larger than the high scale.
z The waveform amplitude changes when the high and low scales are adjusted.
EXPAND PRESSURE Selecting this option opens the following menu. You can
select the pressure to be measured by P1 and P2.
Options: SYS, MEAN, DIA (three pressures are all
measured); MEAN (only the mean pressure is measured).

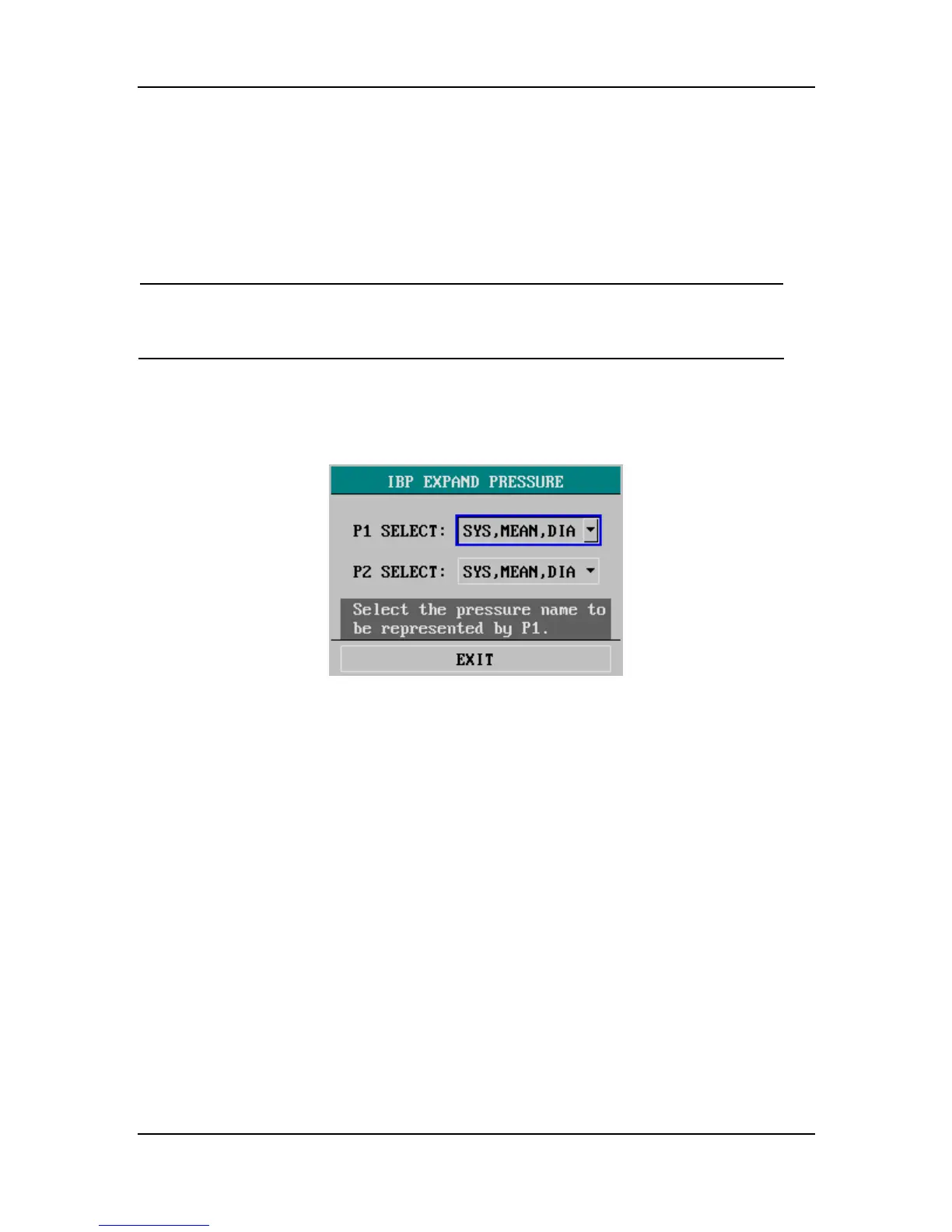

Figure 14-8 IBP Pressure Setup Menu
CONFIG >> You can select this option to access the IBP (1,2) CONFIG
menu, in which you may select FACTORY CONFIG or
USER CONFIG. After finishing your selection and exiting
the menu, the system pops up a dialog box asking for your
confirmation.
