2. Product presentation
MiR1350 User Guide (en) 05/2022 - v.1.2 ©Copyright 2021-2022: Mobile Industrial Robots A/S. 27
NOTICE
The unique nameplate of your robot is to be mounted on the right
side compartment hatch—see Mounting the nameplate on
page72. Make sure you do not swap the hatch with hatches from
other robots.
Side compartment components
The left and right side compartment components are listed in Table 2.5.

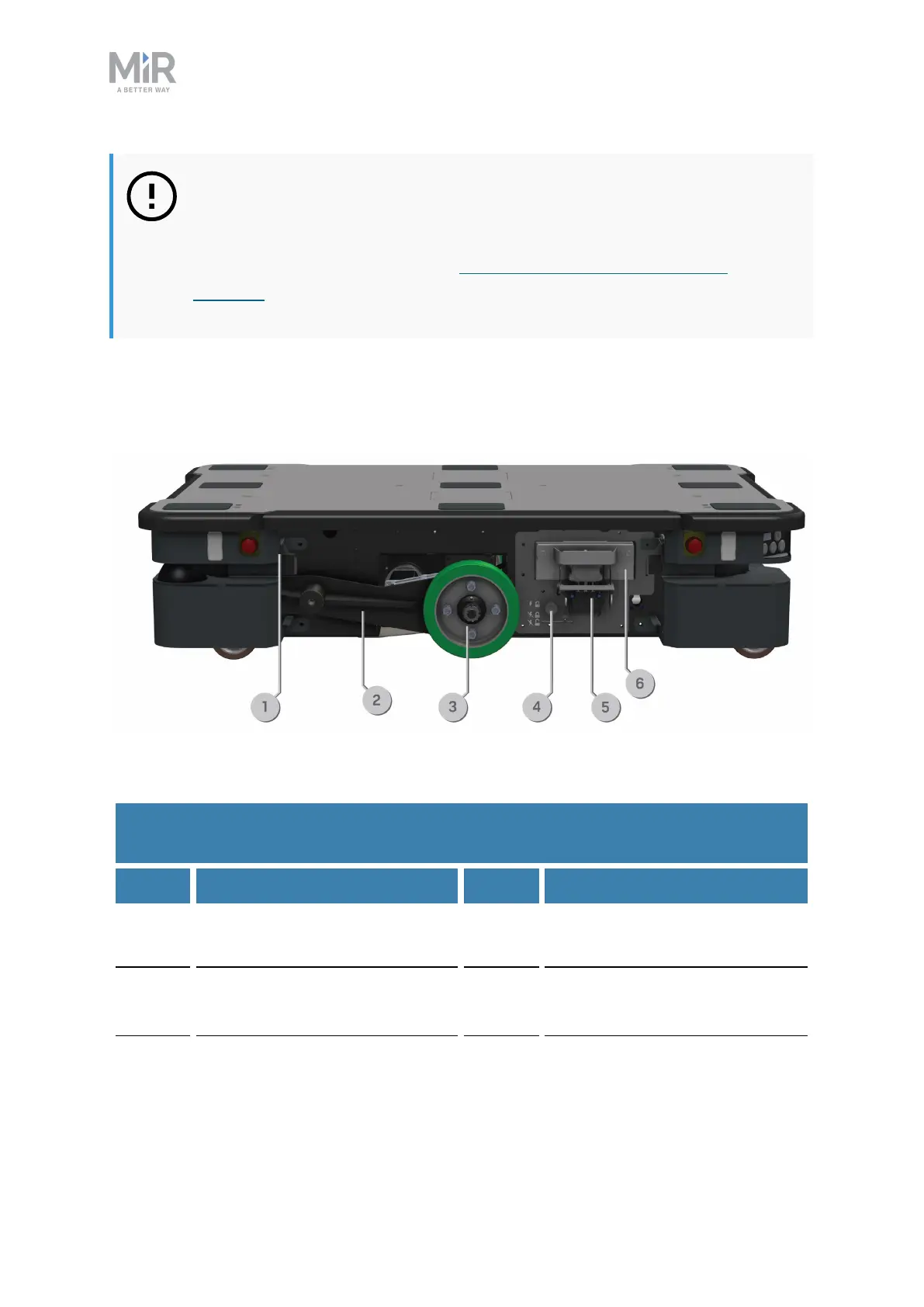

Figure 2.8. Internal parts of the MiR1350 left and right side compartments.
Pos. Description Pos. Description
1 Connector for the status
light band
2
Bogie
3
Drive wheel
4 Battery lock pin (only in left
side compartment)
Table 2.5.
Identification of internal parts in Figure 2.8
