Mitsubishi MELSEC Q Series User Manual

5
SETTINGS AND PROCEDURES BEFORE OPERATION
5.8 Installing/Removing CompactFlash Card and Access Stop
5.8.1 Installing/removing CompactFlash card
5 - 43
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
FUNCTIONS
5
SETTING AND PROCEDURES
6
I/O NUMBER ASSIGNMENT
7
MEMORIES AND FILES
8
INSTALLING / UNINSTALLING
[Removing or replacing CompactFlash card]
Before removing or replacing the CompactFlash card, be sure to stop access to the
CompactFlash card according to the following procedures.

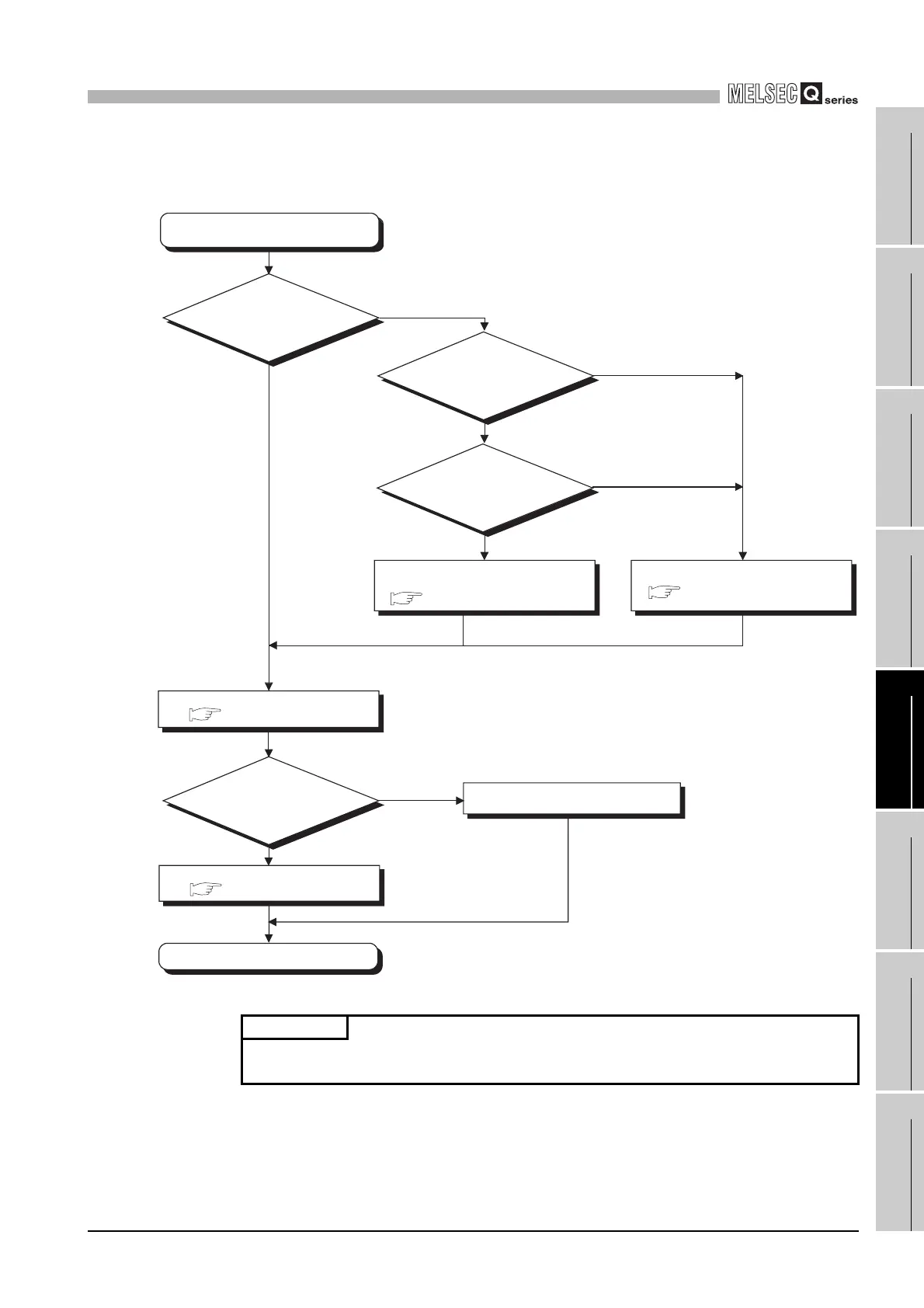

Figure 5.38 Removing or replacing CompactFlash card
IMPORTANT
Failure to observe the above procedures may corrupt the CompactFlash card data or
generate a file system error.
No
No
No
No
Yes
Yes
Yes
Yes
Removal or replacement of
CompactFlash card
Has the C Controller system
been powered off?
Remove the CompactFlash card.
( )
Is the CompactFlash card
to be replaced?
Install a new CompactFlash card.
( )
Completed
Is any file being written
to the CompactFlash card?
Unmount the CompactFlash card
without user program?
Unmount the CompactFlash card by the
RESET/SELECT switch.
( Section 5.8.3 )
Stop access to the CompactFlash card.
( Section 5.8.2 )
Install the dummy CompactFlash card.
Section 5.8.3
Section 5.8.2
This section (1)
This section (2)
