5.8 Installing/Removing CompactFlash Card and Access Stop
5.8.1 Installing/removing CompactFlash card
5 - 45
1
OVERVIEW
2
SYSTEM
CONFIGURATION
3
SPECIFICATIONS
4
FUNCTIONS
5
SETTING AND
PROCEDURES
6
I/O NUMBER
ASSIGNMENT
7
MEMORIES AND
FILES
8
INSTALLING /
UNINSTALLING
(b) Installing a CompactFlash card
When installing a CompactFlash card into the C Controller module, pay attention
to its orientation.
Push the CompactFlash card into the slot until the CompactFlash card edge is
flush with the EJECT button.
(c) Closing the front cover
Close the front cover of the C Controller module until it clicks.
Store the removed dummy CompactFlash card in a safe place for future use.
(d) Checking the installation
Check whether the CompactFlash card has been correctly installed into the C
Controller module.
(Make sure that the CF CARD LED turns on at power-on.)

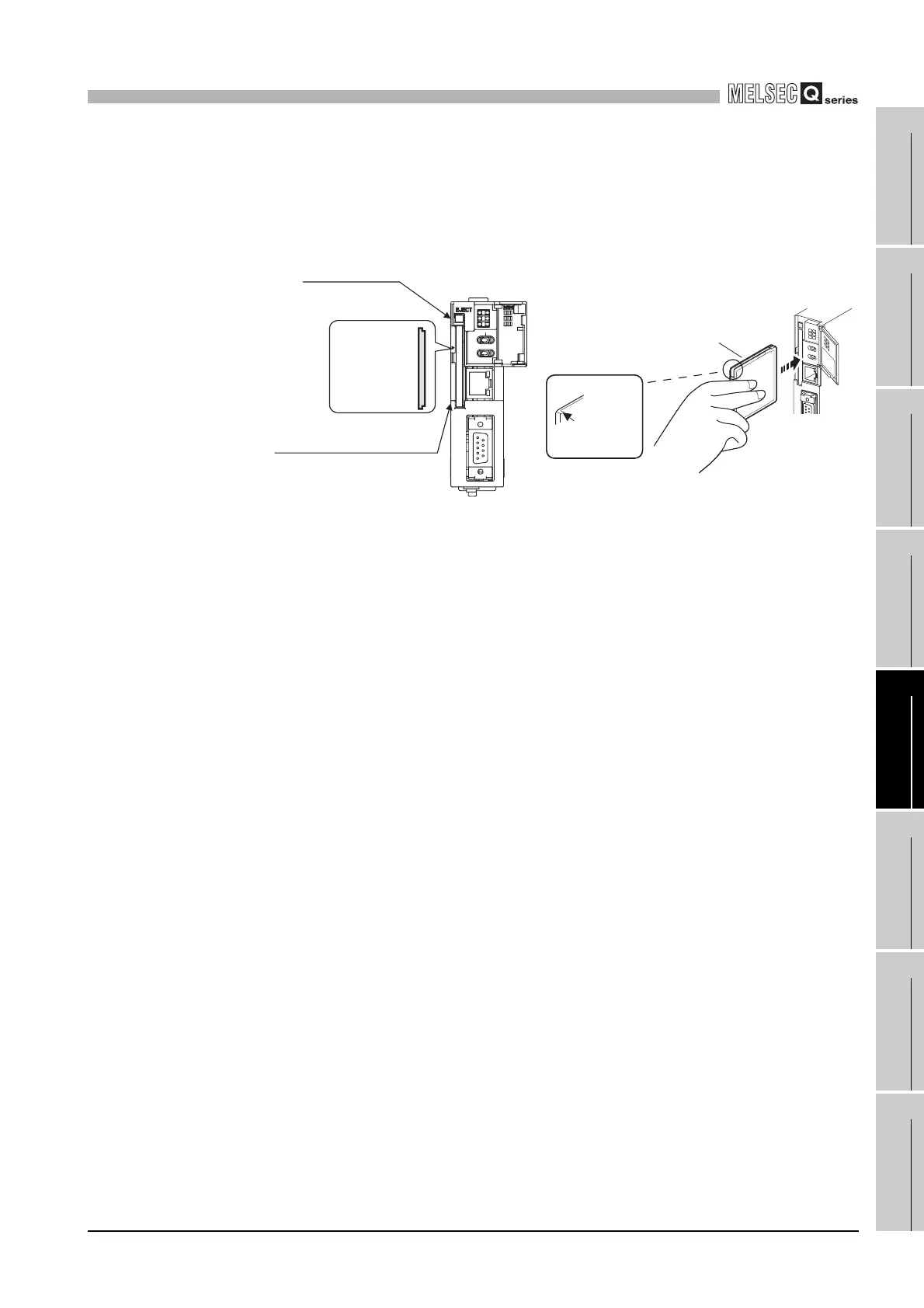

Figure 5.41 Installing a CompactFlash card
MODE
STOP
RUN
SEL.RESET
100
M
SD/
RD
100BASE-TX
CH1
10BASE-T/
RS-232
CH2
CF CARD
EJECT button
Orientation of
CompactFlash
card
CompactFlash card slot
CompactFlash card
Projected part
To Next Page
