9.4 MELSECNET/H Utility
9.4.4 Operating Other station monitor screen
9
UTILITY OPERATION
(a) Communication status of each station screen
Displays the baton pass status (availability of transient transmission).
The number of displayed stations is equal to the "Total stations" set on the
"Parameter setting" screen.

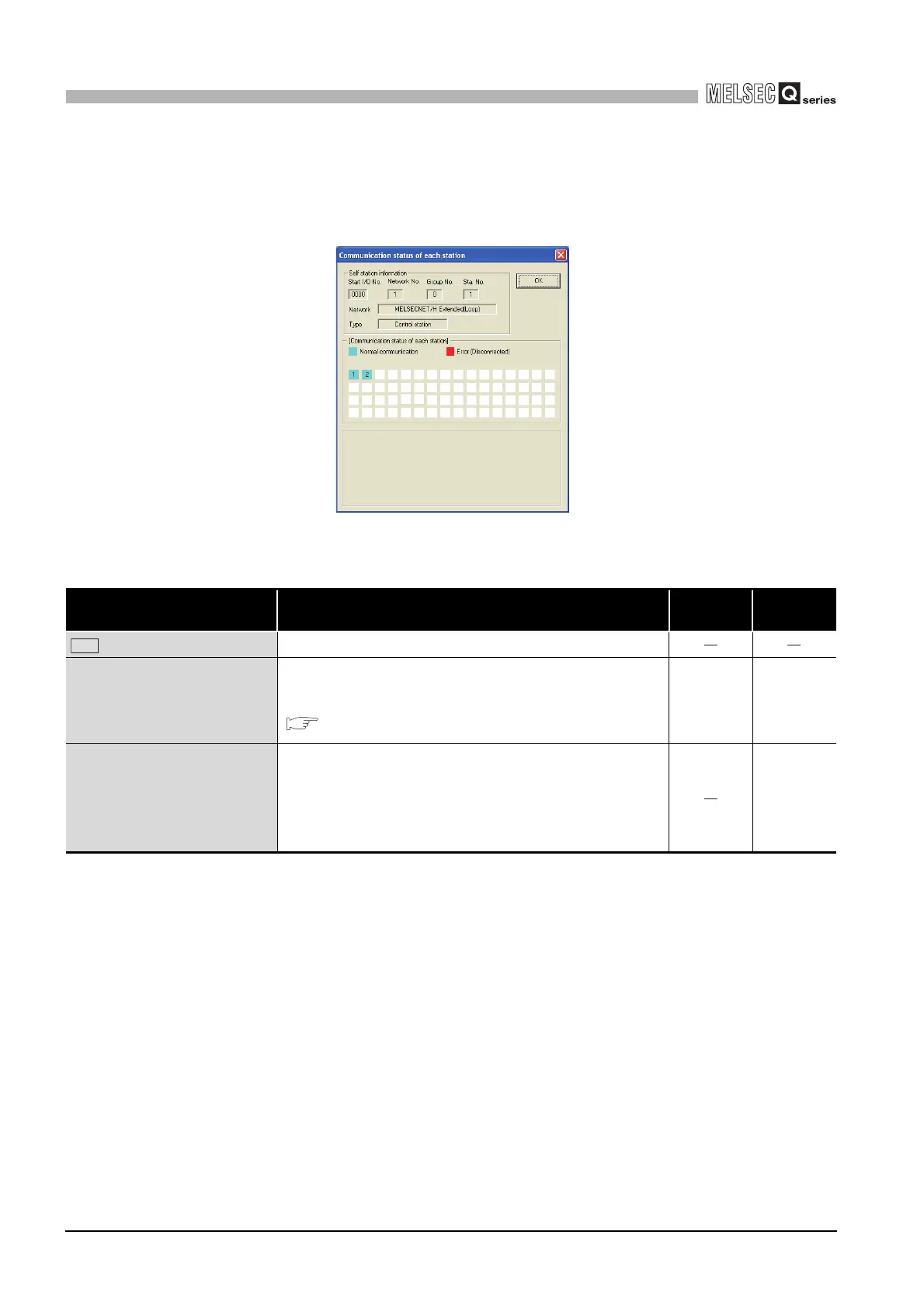

Figure 9.80 Communication status of each station screen
Table9.67 Explanation of Communication status of each station screen
Item Description
Correspon-
ding SB
Correspon-
ding SW
button
Closes the "Communication status of each station" screen.
Self station information
Displays the self station information of the MELSECNET/H
module.
( This section (1))
SB0044,
SB0057,
SB005A
SW0040,
SW0041,
SW0042,
SW0046
Communication status of each
station
Displays the baton pass status (availability of transient
transmission) as shown below.
Light blue: Normally communicating station or reserved
station
Red : Communication error station (Disconnected)
SW0070
to
SW0073
