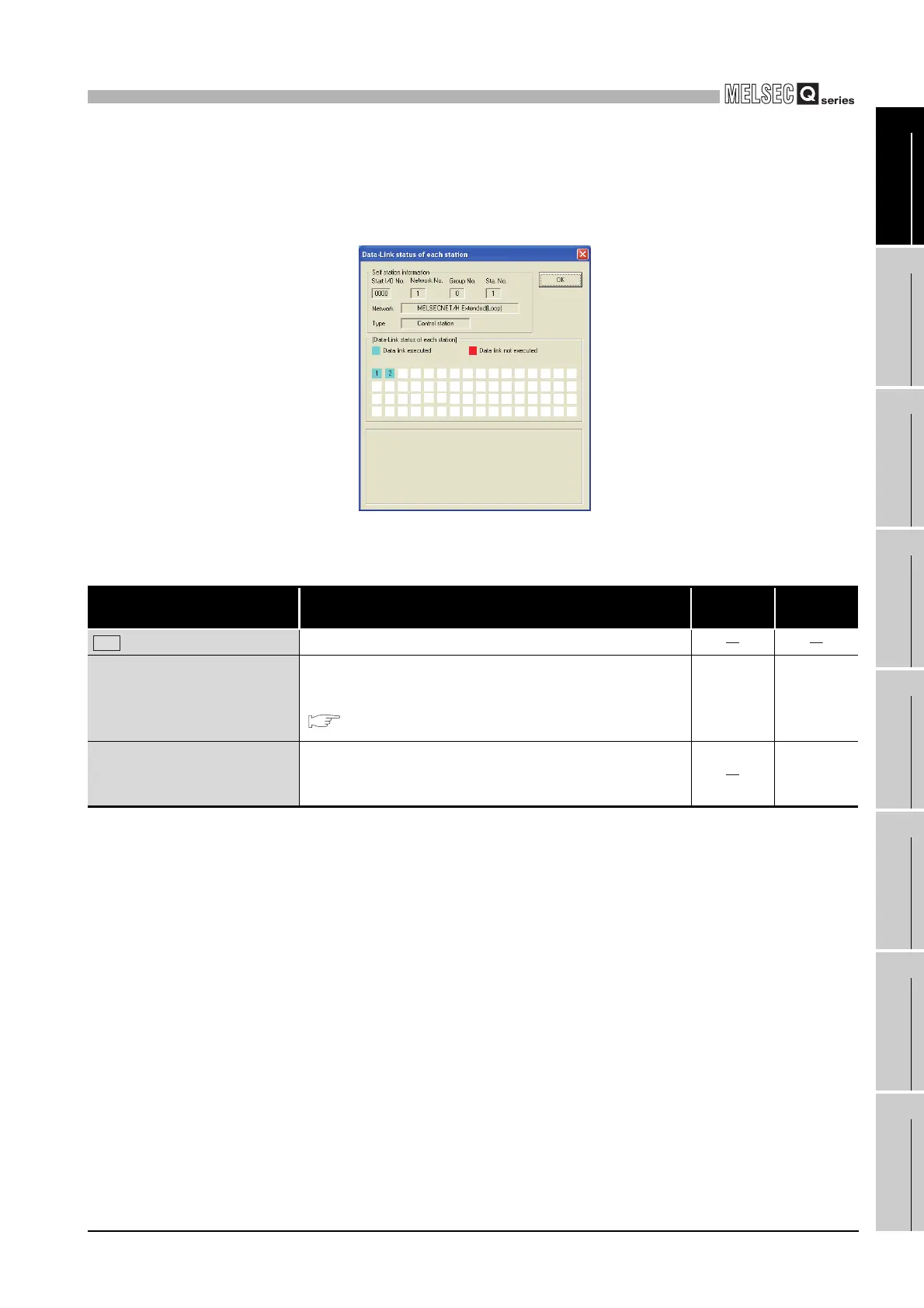

(b) Data-Link status of each station screen
Displays the cyclic transmission status.
The number of displayed stations is equal to the "Total stations" set on the
"Parameter setting" screen.
Figure 9.81 Data-Link status of each station screen
Table9.68 Explanation of Data-Link status of each station screen
Item Description
Correspon-
ding SB
Correspon-
ding SW
button
Closes the "Data-Link status of each station" screen.
Self station information
Displays the self station information of the MELSECNET/H
module.
( This section (1))
SB0044,
SB0057,
SB005A
SW0040,
SW0041,
SW0042,
SW0046
Data-Link status of each station
Displays the cyclic transmission status as shown below.
Light blue: Normal or reserved station
Red : Error station (Data link not performed)
SW0074
to
SW0077
OK
To Next Page
