9 - 108
9.4 MELSECNET/H Utility
9.4.4 Operating Other station monitor screen
9
UTILITY OPERATION
(c) Parameter status of each station screen
Displays the parameter communication status and error status of each station.
The number of displayed stations is equal to the "Total stations" set on the
"Parameter setting" screen.

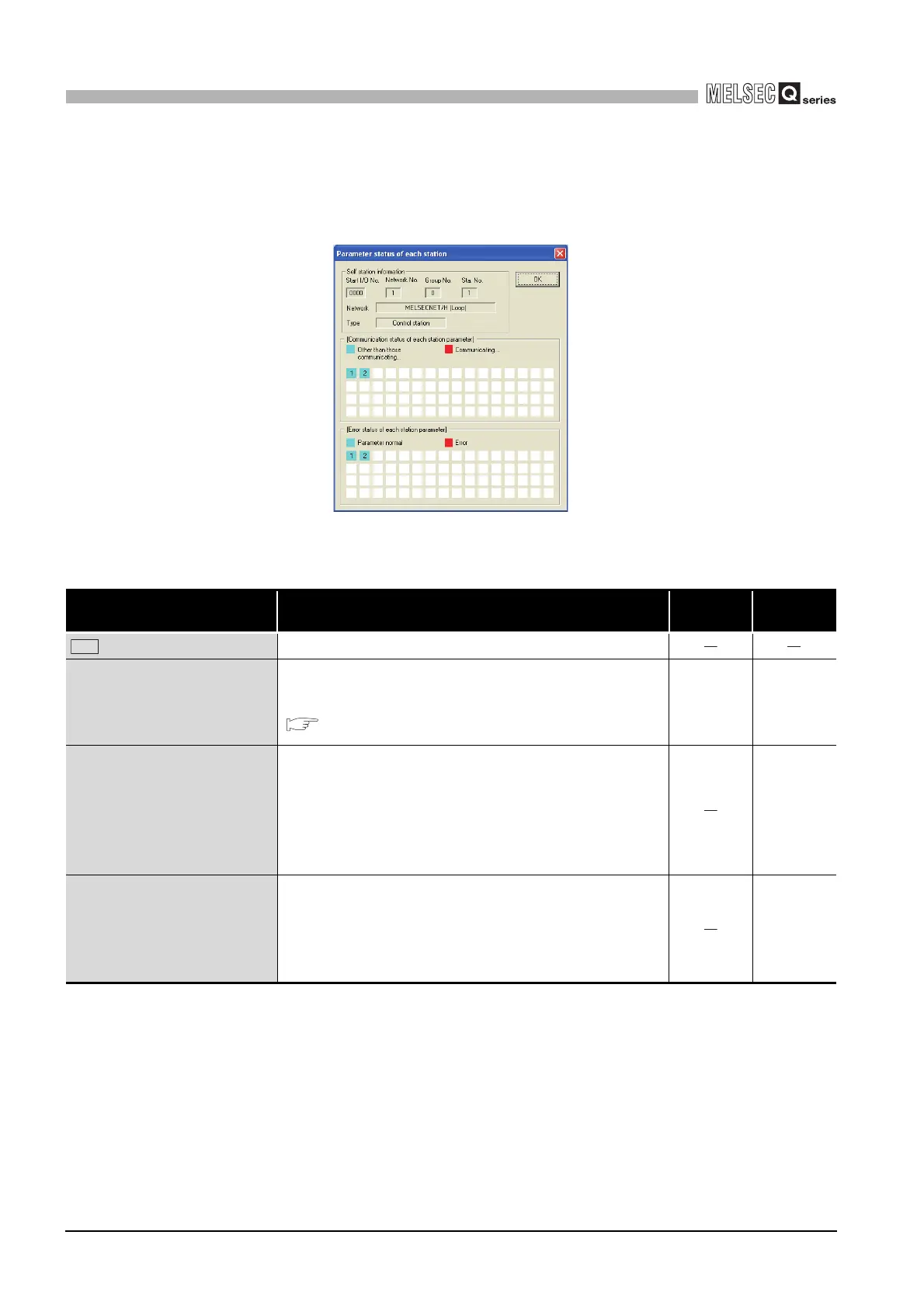

Figure 9.82 Parameter status of each station screen
Table9.69 Explanation of Parameter status of each station screen
Item Description
Correspon-
ding SB
Correspon-
ding SW
button
Closes the "Parameter status of each station" screen.
Self station information
Displays the self station information of the MELSECNET/H
module.
( This section (1))
SB0044,
SB0057,
SB005A
SW0040,
SW0041,
SW0042,
SW0046
Communication status of each
station parameter
Displays the parameter communication status of each station
as shown below.
Light blue: Status other than "communicating with
parameters", reserved station, or unconnected
station
Red : Communicating with parameters
SW0078
to
SW007B
Error status of each station
parameter
Displays the parameter error status of each station as shown
below.
Light blue: Parameters normal, reserved station, or
unconnected station
Red : Parameter error
SW007C
to
SW007F
OK
