(d) CPU operation status of each station screen
Displays the CPU operation status.
The number of displayed stations is equal to the "Total stations" set on the
"Parameter setting" screen.

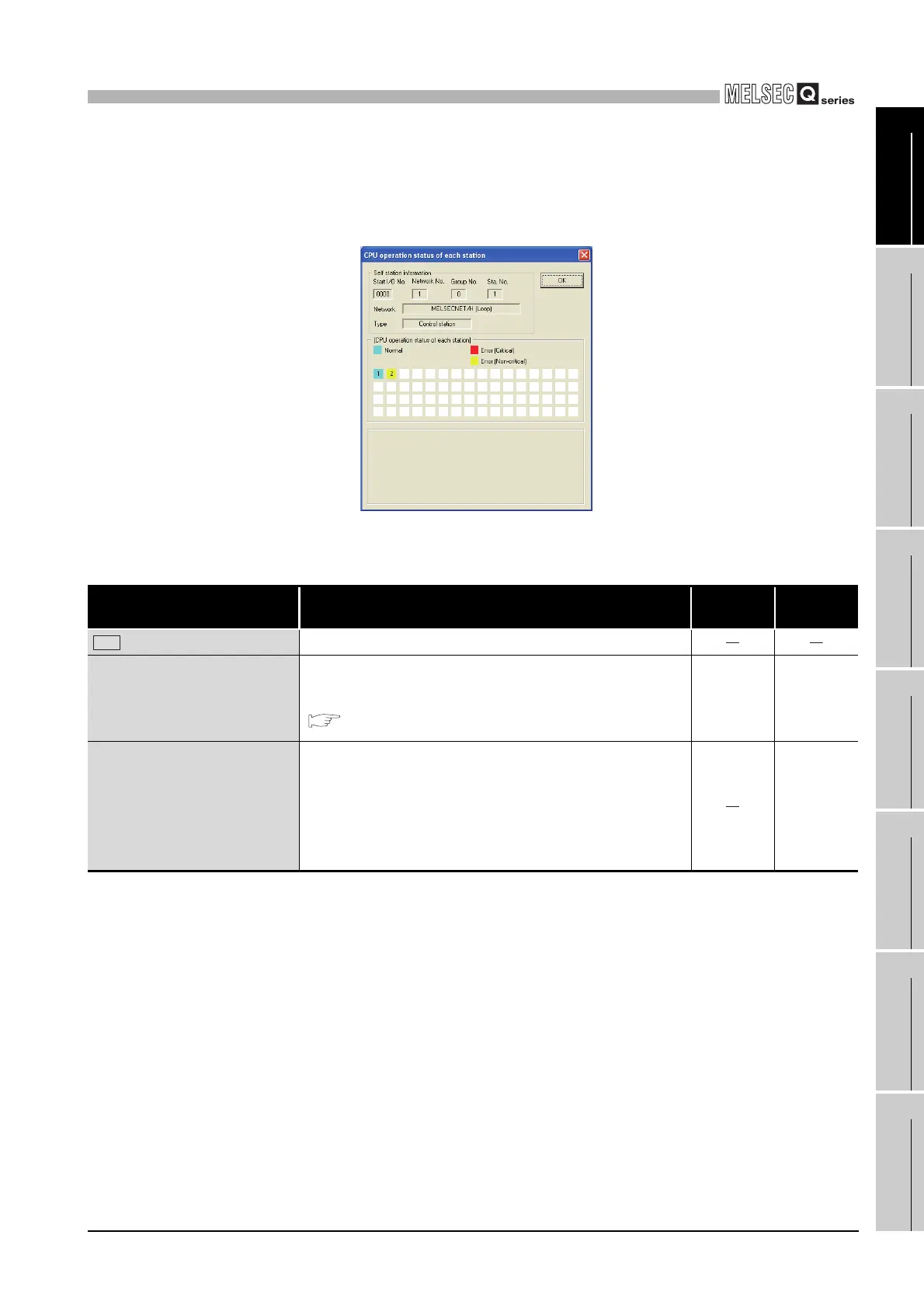

Figure 9.83 CPU operation status of each station screen
Table9.70 Explanation of CPU operation status of each station screen
Item Description
Correspon-
ding SB
Correspon-
ding SW
button
Closes the "CPU operation status of each station" screen.
Self station information
Displays the self station information of the MELSECNET/H
module.
( This section (1))
SB0044,
SB0057,
SB005A
SW0040,
SW0041,
SW0042,
SW0046
CPU operation status of each
station
Displays the CPU operation status as shown below.
Light blue: CPU normal, or reserved or unconnected station
Red : CPU fault: Medium error (WDT error, etc.) or
critical error (Hardware error, etc.)
Yellow : CPU fault: Minor error
SW0080
to
SW0083,
SW0088
to
SW008B
OK
