9 - 110
9.4 MELSECNET/H Utility
9.4.4 Operating Other station monitor screen
9
UTILITY OPERATION
(e) CPU RUN status of each station screen
Displays the RUN/STOP states of the CPUs.
The number of displayed stations is equal to the "Total stations" set on the
"Parameter setting" screen.

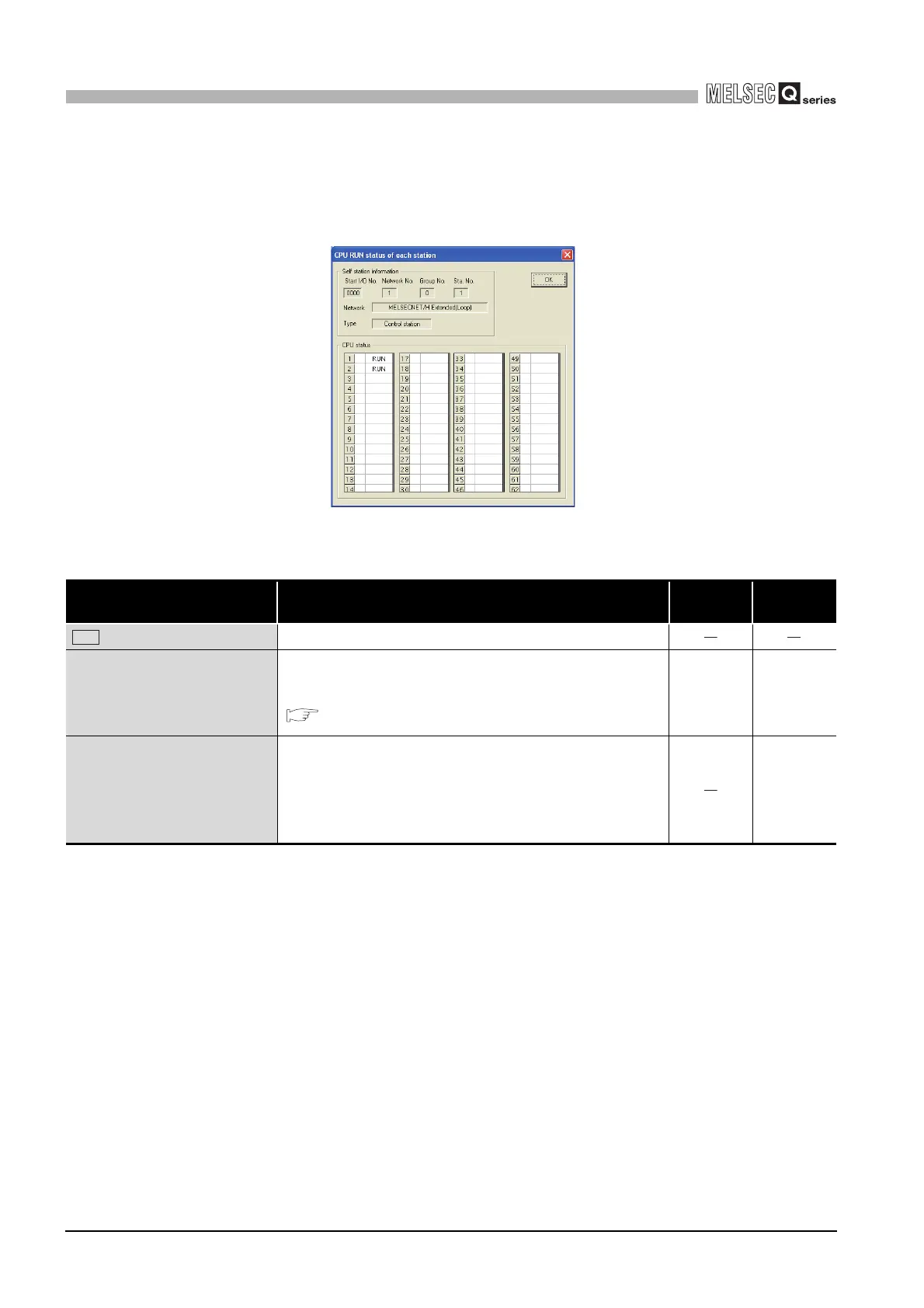

Figure 9.84 CPU RUN status of each station screen
Table9.71 Explanation of CPU RUN status of each station screen
Item Description
Correspon-
ding SB
Correspon-
ding SW
button
Closes the "CPU RUN status of each station" screen.
Self station information
Displays the self station information of the MELSECNET/H
module.
( This section (1))
SB0044,
SB0057,
SB005A
SW0040,
SW0041,
SW0042,
SW0046
CPU status
Displays the RUN/STOP status of each CPU.
RUN : RUN, STEP RUN
STOP : STOP, PAUSE
DOWN : ERROR, or unconnected station
Reserved Sta. : Reserved station
SW0084
to
SW0087
OK
