(f) Loop status of each station screen
Displays the forward and reverse loop statuses in the case of the optical loop
system.
The number of displayed stations is equal to the "Total stations" set on the
"Parameter setting" screen.

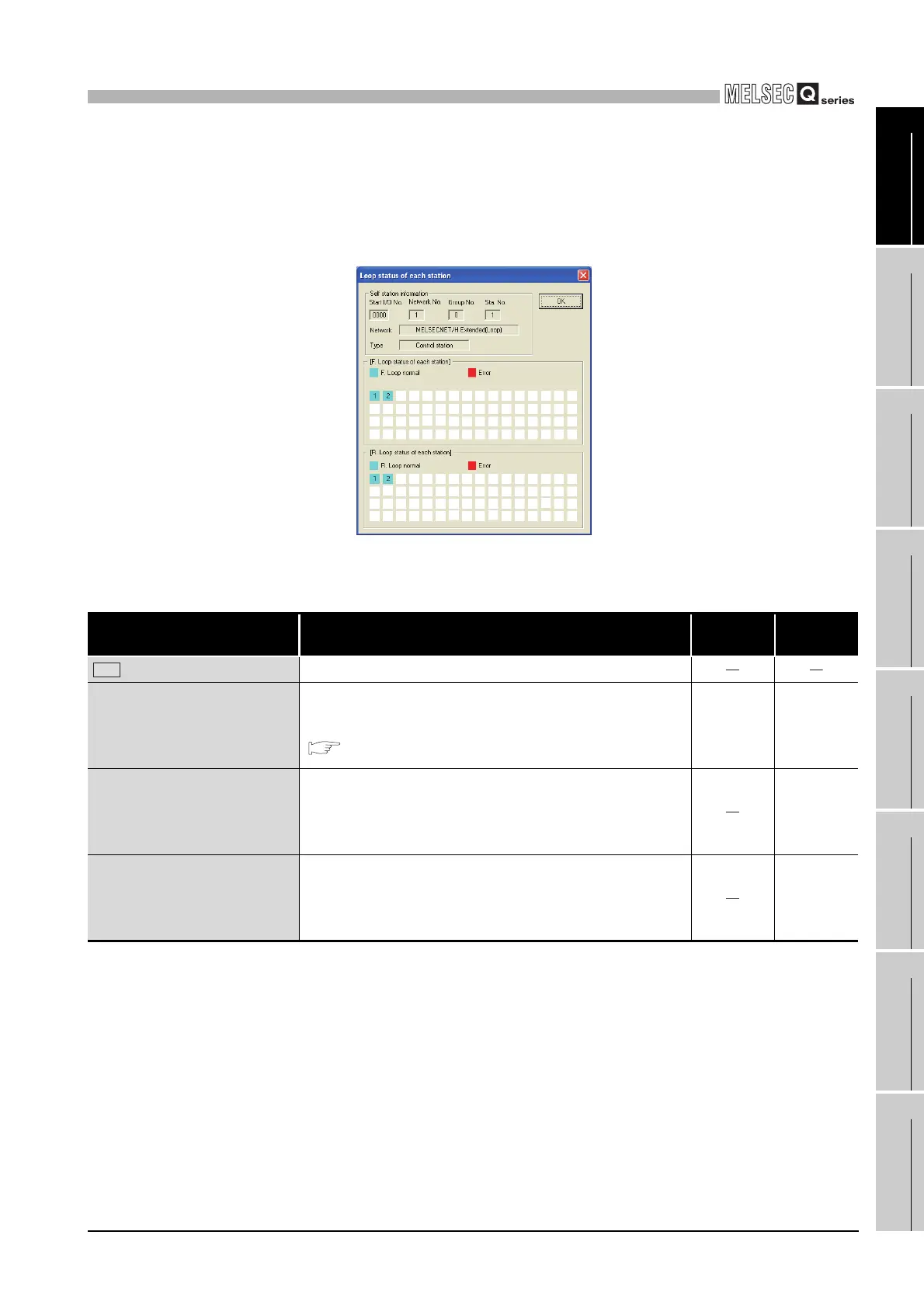

Figure 9.85 Loop status of each station screen
Table9.72 Explanation of Loop status of each station screen
Item Description
Correspon-
ding SB
Correspon-
ding SW
button
Closes the "Loop status of each station" screen.
Self station information
Displays the self station information of the MELSECNET/H
module.
( This section (1))
SB0044,
SB0057,
SB005A
SW0040,
SW0041,
SW0042,
SW0046
F. Loop status of each station
Displays the forward loop status in the optical loop system as
shown below.
Light blue : Normal, reserved station, or unconnected station
Red : Error station
SW0091
to
SW0094
R. Loop status of each station
Displays the reverse loop status in the optical loop system as
shown below.
Light blue : Normal, reserved station, or unconnected station
Red : Error station
SW0095
to
SW0098
OK
