9 - 112
9.4 MELSECNET/H Utility
9.4.4 Operating Other station monitor screen
9
UTILITY OPERATION
(g) Reserved station designation of each station screen
Displays the reserved station setting status.
The number of displayed stations is equal to the "Total stations" set on the
"Parameter setting" screen.

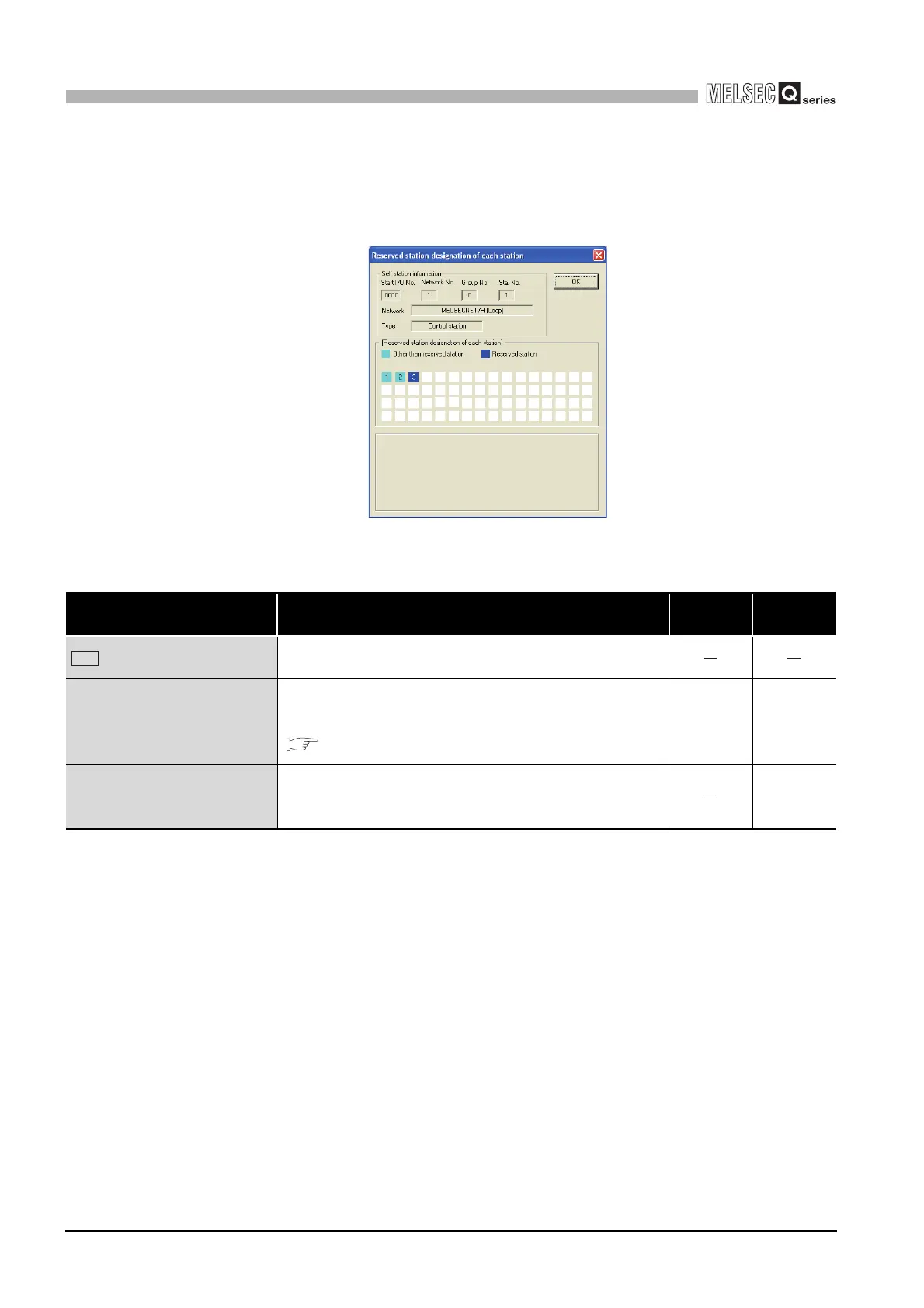

Figure 9.86 Reserved station designation of each station screen
Table9.73 Explanation of Reserved station designation of each station screen
Item Description
Correspon-
ding SB
Correspon-
ding SW
button
Closes the "Reserved station designation of each station"
screen.
Self station information
Displays the self station information of the MELSECNET/H
module.
( This section (1))
SB0044,
SB0057,
SB005A
SW0040,
SW0041,
SW0042,
SW0046
Reserved station designation of
each station
Displays the reserved station setting status as shown below.
Light blue : Other than reserved station
Blue : Reserved station
SW0064
to
SW0067
OK
