(3) Refresh parameter setting screen
Set the refresh parameters.

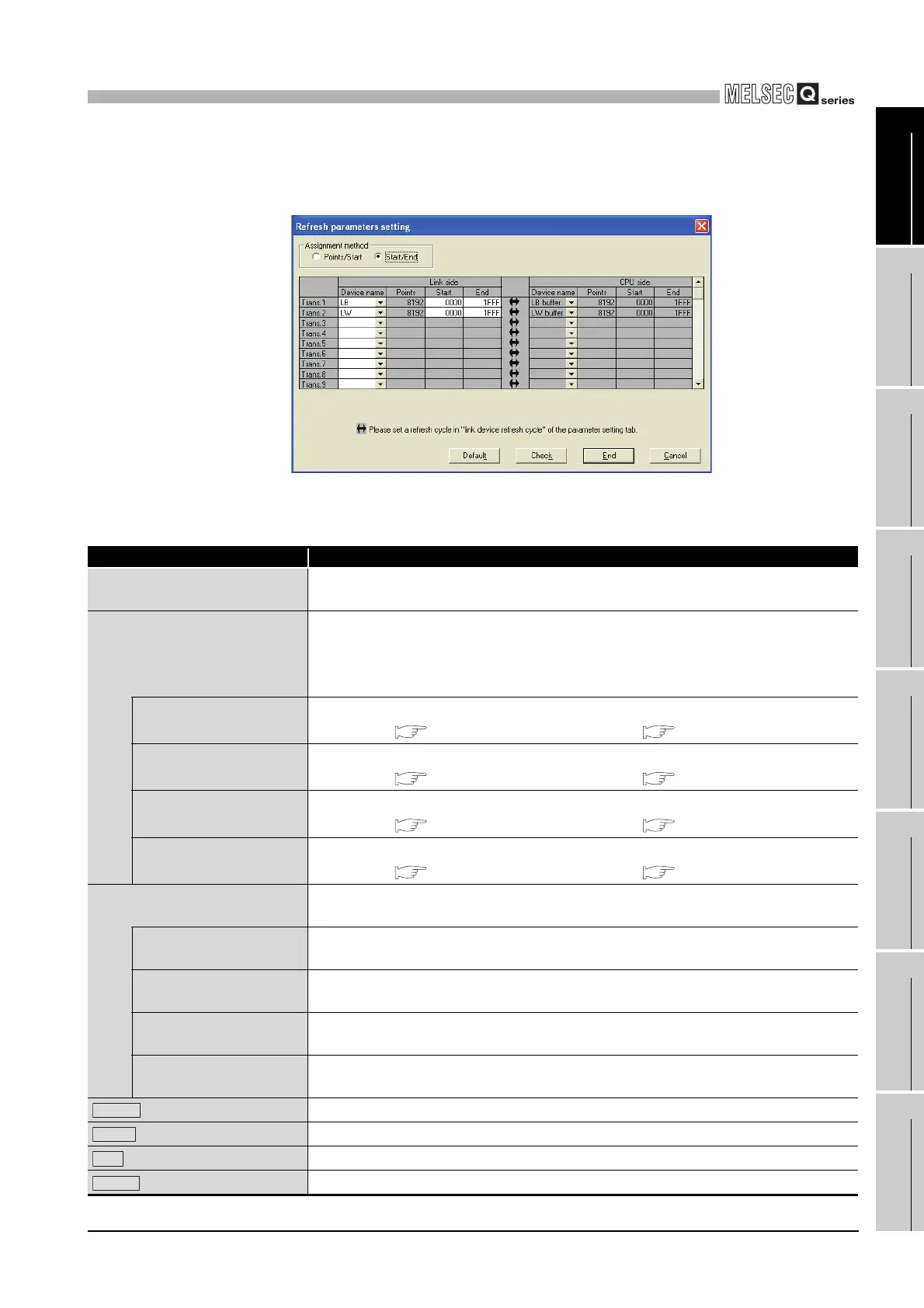

Figure 9.92 Refresh parameter setting screen
Table9.80 Explanation of Refresh parameter setting screen
Item Description
Assignment method
The device range input method can be switched between Points/Start and Start/End.
(Initial value: "Start/End")
Link side
Set the refresh parameters of the target module selected on the "Parameter setting"
screen.
Up to 64 refresh parameters can be set.
Since duplicated device setting is not allowed, prevent any overlapped settings.
Device name
Set the name of the link device to be refreshed.
(Initial value: This section (3)(a), Setting range: This section (3)(b))
Points
Set the points of the link device to be refreshed.
(Initial value: This section (3)(a), Setting range: This section (3)(c))
Start
Set the start No. of the link device to be refreshed.
(Initial value: This section (3)(a), Setting range: This section (3)(c))
End
Set the end No. of the link device to be refreshed.
(Initial value: This section (3)(a), Setting range: This section (3)(c))
CPU side
Displays the refresh parameters of the CPU module.
Displays the data corresponding to the "Link side" settings.
Device name
Displays the name of the device to be refreshed on the CPU module.
(Display item: Refer to This section (3)(b))
Points
Displays the points of the device to be refreshed on the CPU side.
The same points as those shown in "Points" on the "Link side" are displayed.
Start
Displays the start No. of the device to be refreshed on the CPU side.
The same start No. as that shown in "Start" on the "Link side" is displayed.
End
Displays the end No. of the device to be refreshed on the CPU side.
The same end No. as that shown in "End" on the "Link side" is displayed.
button
Changes the "Link side" and "CPU side" settings to the initial values.
button
Checks the "Link side" and "CPU side" settings for errors.
button
Saves the settings and closes the "Refresh parameter setting" screen.
button
Closes the "Refresh parameter setting" screen without saving the settings.
Default
Check
End
Cancel
