17.1 Flowchart for Starting Multiple CPU System
17
STARTING MULTIPLE CPU SYSTEM
* 1 Reference section for the C Controller module.
Refer to the following manual for programmable controller CPUs.
QCPU User's Manual (Multiple CPU system)

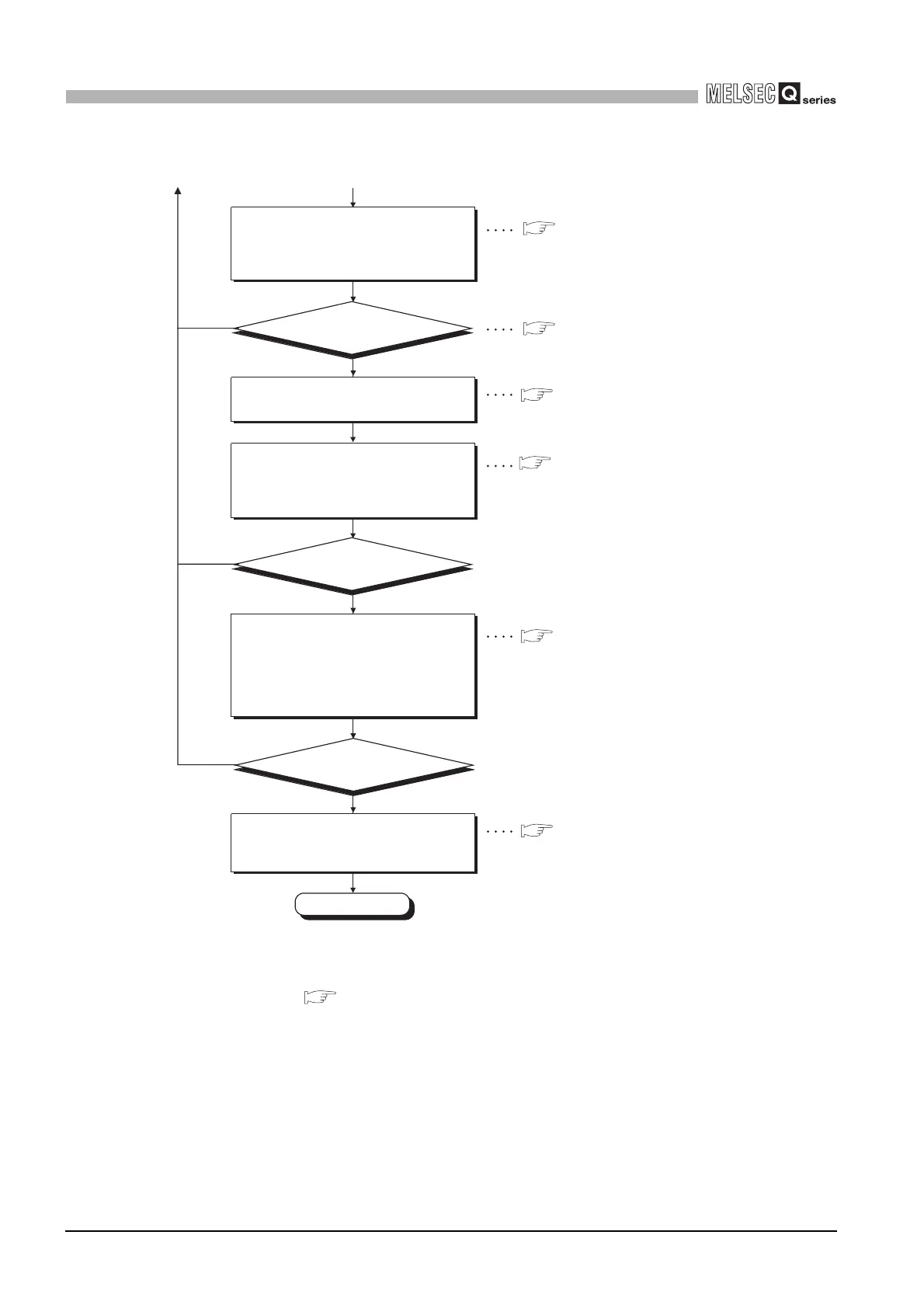

Figure 17.1 Procedure for starting up multiple CPU system
No
No
No
Yes
Yes
Yes
(To Page 17-1 1))
(From previous page)
On the System information screen of
the C Controller setting utility,
check the operating status (e.g. errors)
of the multiple CPU system.
Has any error occurred?
Set the network module parameters.
On the C Controller setting utility,
check the operating status (e.g. errors).
(Module information, Event history,
Module monitor, System information, etc.)
Has any error occurred?
Make sure that access is allowed to the
other CPUs.
Confirm accessibility to the other CPUs
in Communication diagnostics of the
C Controller setting utility or on the
Device monitor utility.
Has any error occurred?
Using Tornado, create a user program,
debug it and register it to the C Controller
module.
Operation
Section 9.2.5 (3)
Section 13.7
Section 5.3 (3), (4)*1
Section 9.2.2, 9.2.3, 9.2.5 (2), (3)
Section 9.2.10, 9.5
Chapter 10
Section 9.2.5 (3)
Section 13.7
Section 5.3 (3), (4)
*1
Section 9.2.2, 9.2.3, 9.2.5 (2), (3)
Section 9.2.10, 9.5
Chapter 10
