17.2 Setting Parameters Added for Multiple CPU System
17.2.3 When creating new system
17
STARTING MULTIPLE CPU SYSTEM
íç2

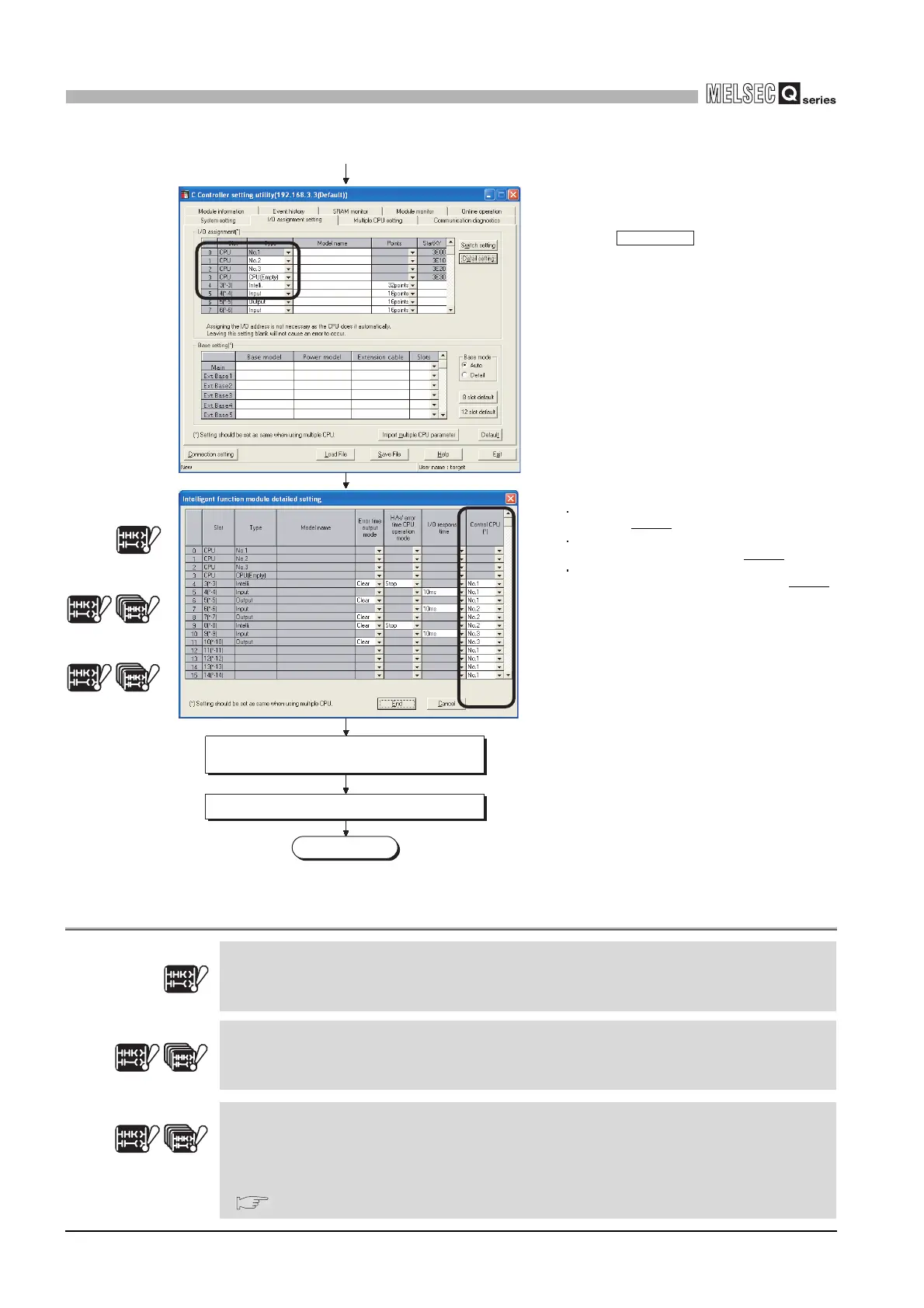

Figure 17.4 Parameter setting procedure for creating a new multiple CPU system
íç2
In Type of the <<I/O assignment setting>> tab,
select "CPU (Empty)" for the slot to which no
CPU module is mounted.
Click the Detail setting button to open the
"Detail setting" screen.
(From previous page)
Make parameter settings other than
those for the multiple CPU system.
Save the set parameters into a file.
End
Control CPU (setup required)
Select a control CPU (CPU No.1 to 4) for
each slot. Note 17.2
This cannot be set for intelligent function
modules of function version A. Note 17.3
This cannot be set for AnS series I/O
modules and special function modules.
Note 17.4
Note17.2
Note17.3
Note17.4
Note17.2
Basic
Basic
High
Performance
Note17.3
Basic
High
Performance
Note17.4
When the Basic model QCPU is used, selection of CPU No.4 is not allowed since the maximum
number of mountable CPU modules is 3.
Basic
Note17.2
When using an intelligent function module of function version A with the Basic model QCPU or
High Performance model QCPU, set the control CPU to CPU No.1.
Note17.3
Basic
High
Performance
The Basic model QCPU cannot be set as a control CPU of AnS series I/O modules and special
function modules.
When using AnS series I/O modules and/or special function modules with the High Performance
model QCPU, set the control CPU to the same High Performance model QCPU.
(
Section 16.1 (2))
Note17.4
Basic
High
Performance
