Morgana DocuMaster MFC - Service Manual 131
4. Service Procedures - Replace Components - Suction Feed Bin
4
Fit the replacement sensor in the reverse order of removal. Make the checks that
follow:
• Keep the sensor ribbon flat and do not twist it.
• Replace the protective foam insert.
• The text on the sensor head must face down.
• Secure all cables with cable ties.
• Make sure that the metalled side of the ribbon cable faces the socket contacts
(away from the retainer) on the bin control PCB.
4.8.9 Replace the Tray Height Sensor
Control Head
Tray Height Sensor Head

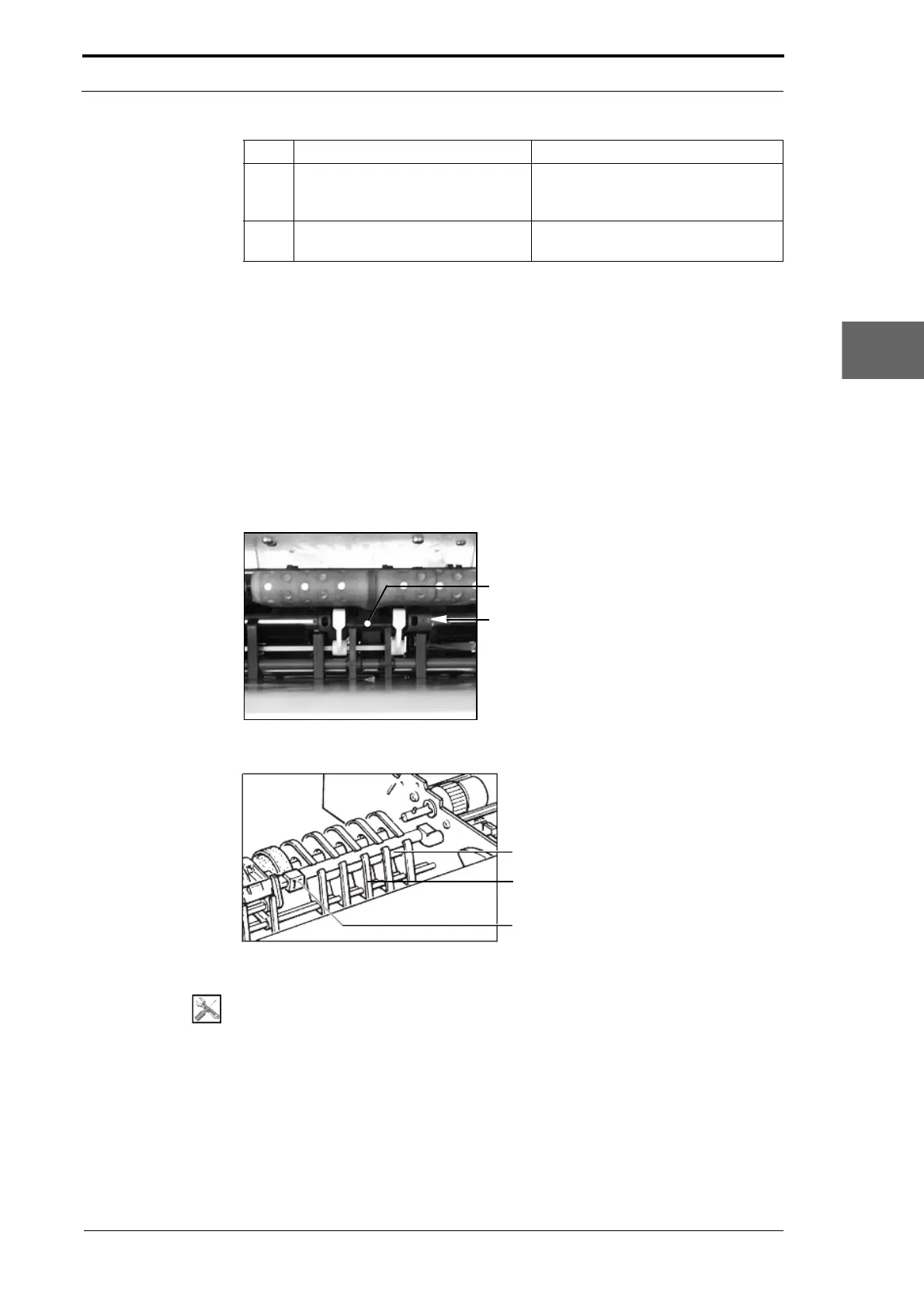

Figure 4.126 Suction Feed Bin Control Head
RH Air Baffle
Lift the Sensor Head out of the Control
Head
Lower Paper Guides
Figure 4.127 Remove the Tray height Sensor
Tools:

• Allen Key: 3mm
• Screwdriver: Small Flat-blade
• Pliers: Side Cutters.
14 Install the replacement emitter/
sensor assembly and
reassemble
the MFC.
15 Do a check of the emitter/sensor
low range adjustment.
(See Section 4.5.7).
Step Action Information
