7.3.5 Friction Feed Bin Control PCB

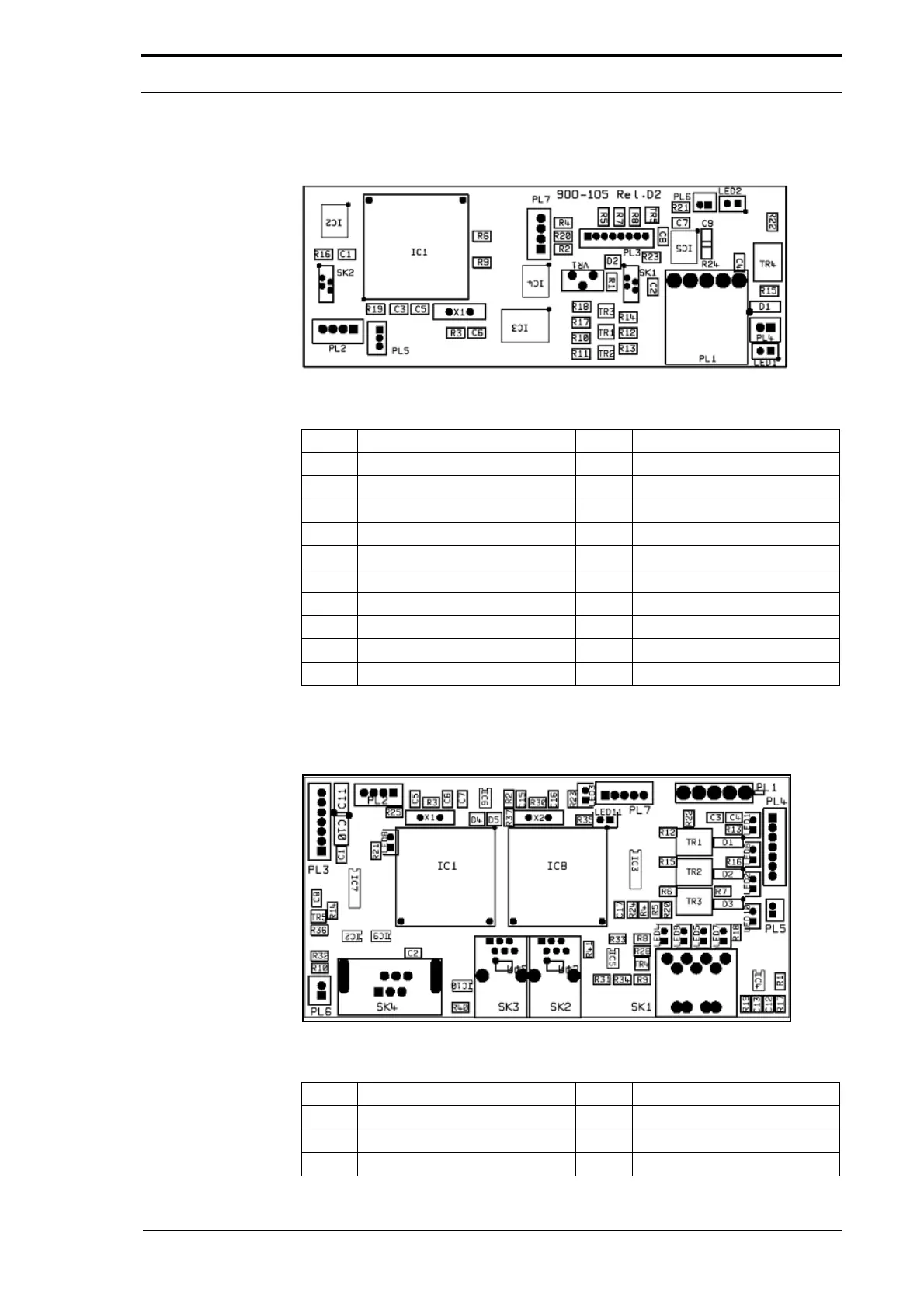

Figure 7.7 Friction Feed Bin Control PCB
Description LED LED Function (LED ON)
PL1 Power bus input
PL2 Data Bus
PL3 Bin controls
PL4 Feed clutch LED1 Feed clutch signal output
PL5
PL6
PL7
SK1 Emitter/sensor
SK2 Tray loaded sensor
LED2 Spare (not used)
7.3.6 Base Control PCB
Figure 7.8 Base Control PCB
Description LED LED Function (LED ON)
PL1 Power bus input
PL2 Data bus I/O
PL3 Not used
