4. Service Procedures - Machine Adjustments and Calibration
66 Morgana DocuMaster MFC - Service Manual
If the creaser drive belt is too loose:
• The precision of the crease will decrease.
• The drive-belt can be damaged.
Note: If the creaser module is i
nstalled on the MFC, you must
remove the crease-belt motor and the creaser-drive motor
before you can adjust the tension of the creaser drive-belt.
4.5.10.1 Test the Creaser Drive Belt Tension

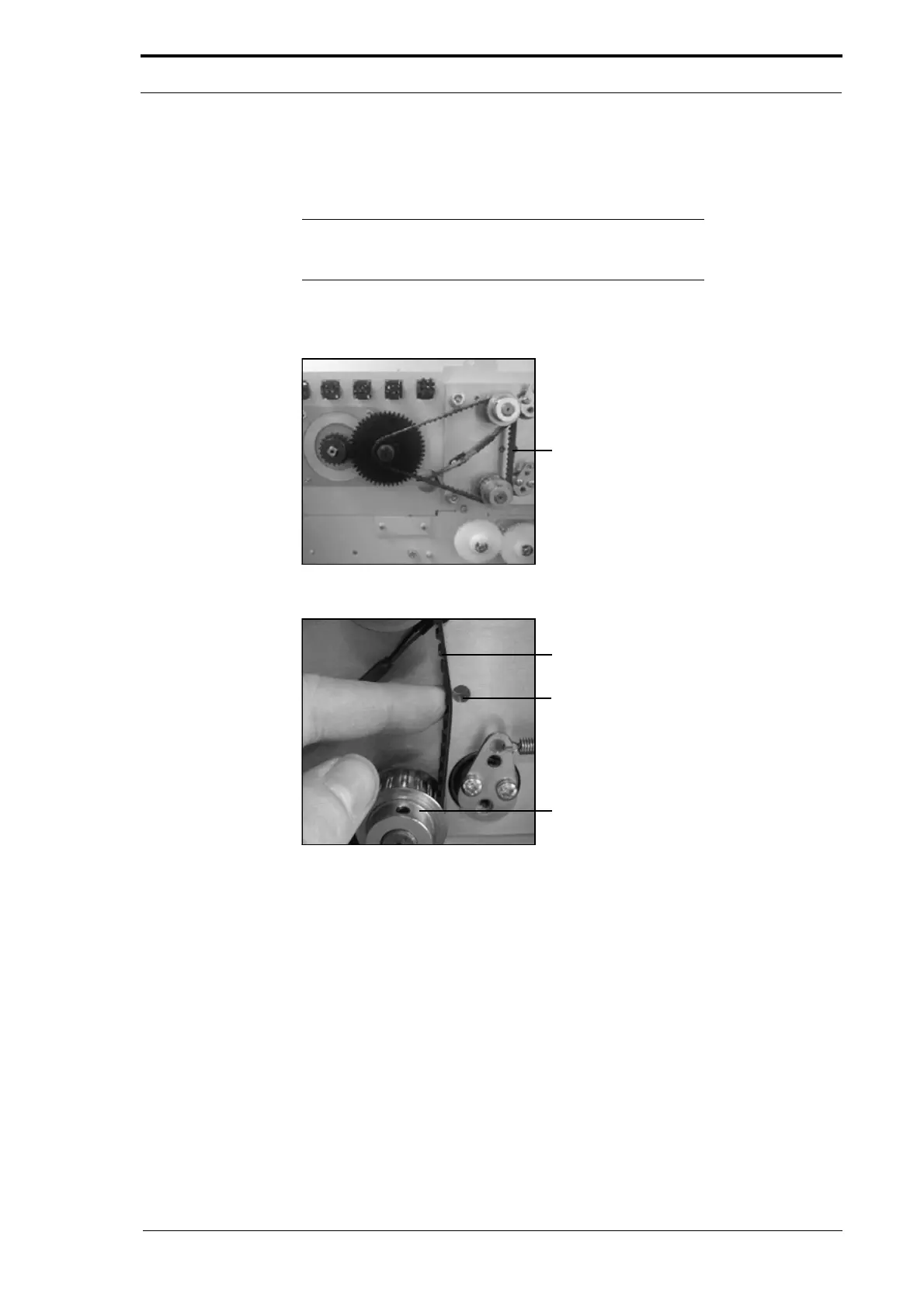

Figure 4.32 Creaser Drive Belt
Creaser Drive Belt
Reference Hole
Pulley
Figure 4.33 Test the Creaser Drive Belt Tension
Before you start:
• Remove the RH side covers (See Section 4.2.5).
(1) Push the creaser drive-belt away from the pulleys (see Figure 4.33).
(2) Make sure that the belt stops at the edge of the reference hole (see Figure 4.33).
If the tension on the creaser drive-belt is not correct, it must be adjusted (see Section
4.5.10.2).
