4. Service Procedures - Machine Adjustments and Calibration
72 Morgana DocuMaster MFC - Service Manual
When the rollers are parallel, it is important that the gap between the rollers is
calibrated correctly. Sheets of paper known as test strips (see Section 4.1.3) are used
to calibrate the gap between the rollers.

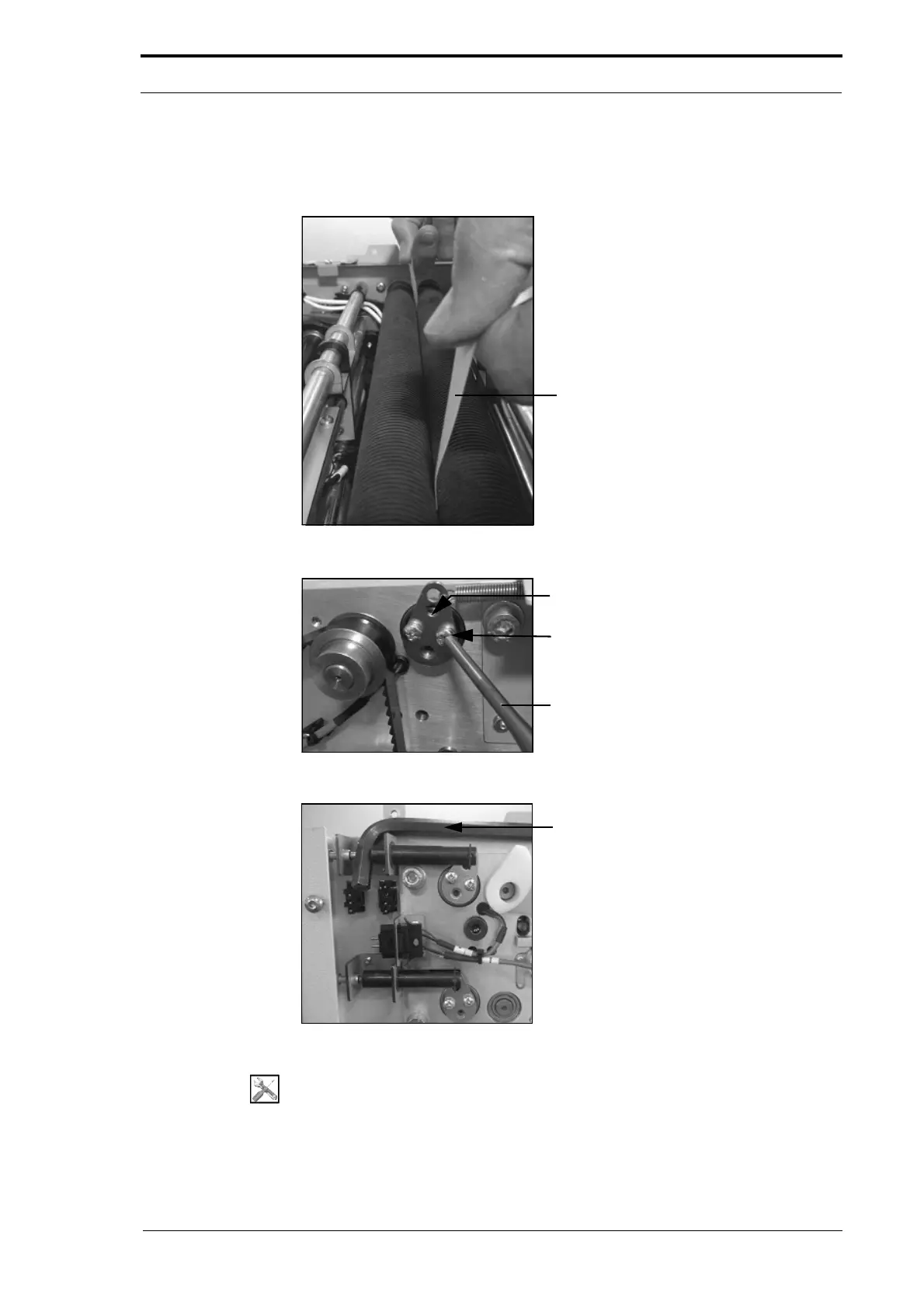

Figure 4.40 Measure the Roller Gap
Figure 4.41 Roller Parallel Adjustment
Figure 4.42 Open the Input Rollers when you adjust the Output Rollers
Tools:
• Allen Key: 2.5mm, 4mm, 10mm
• 6” Steel Rule
• Pin-punch and hammer
• Test Strips (See Section 4.1.3).
