4. Service Procedures - Machine Adjustments and Calibration
90 Morgana DocuMaster MFC - Service Manual

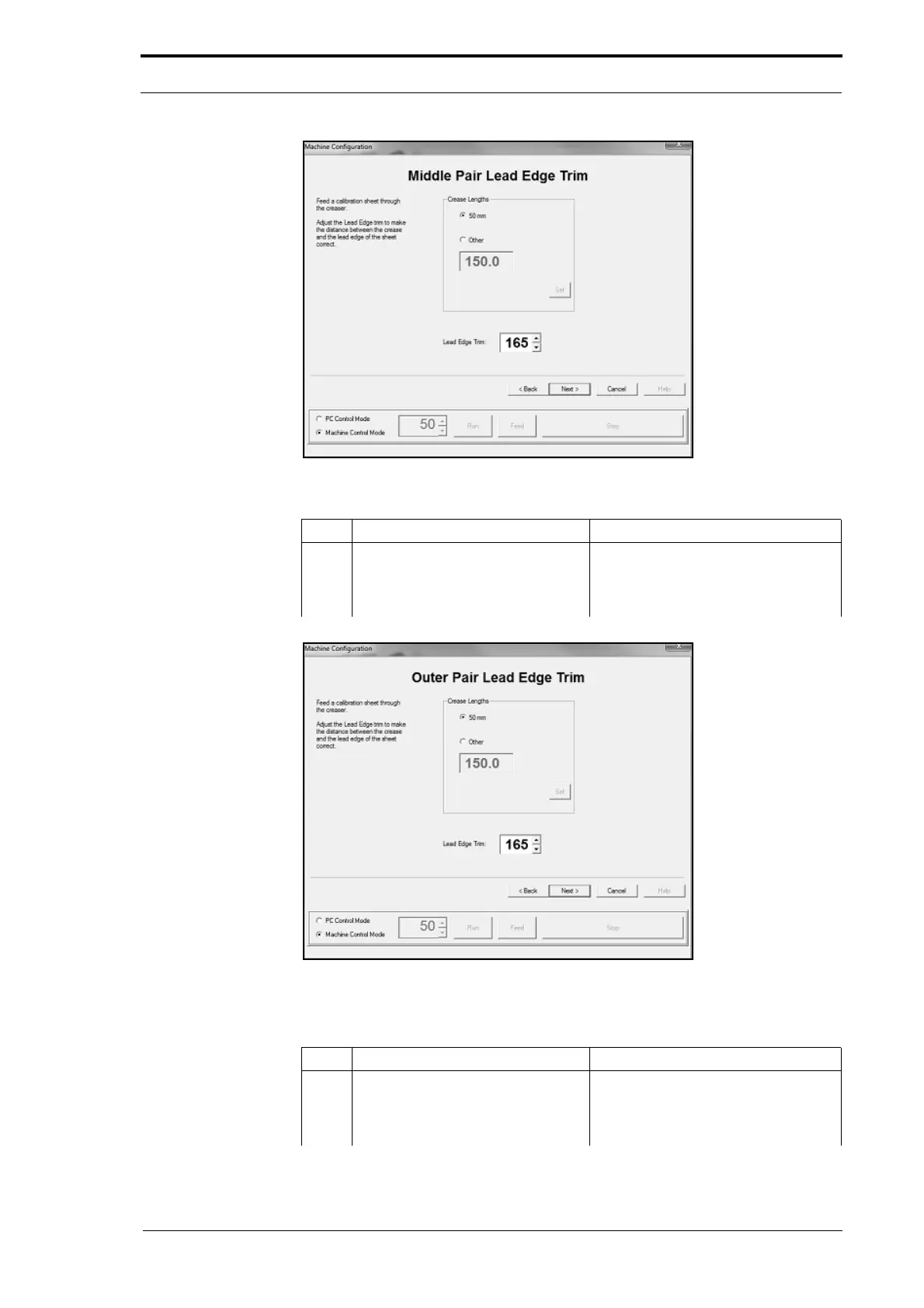

Figure 4.68 The Middle Sensor Pair Lead-Edge Adjustment Page
Step Action Information
6 Adjust the middle pair lead-edge
trim to
make the distance between
the crease and the lead-edge of
the sheet measure 50mm.
• Do Steps 2 thru 5.
Figure 4.69 The Outer Sensor Pair Lead-Edge Adjustment Page
Step Action Information
7 Adjust the outer pair lead-edge trim
to
make the distance between the
crease and the lead-edge of the
sheet measure 50mm.
• Do Steps 2 thru 5.
