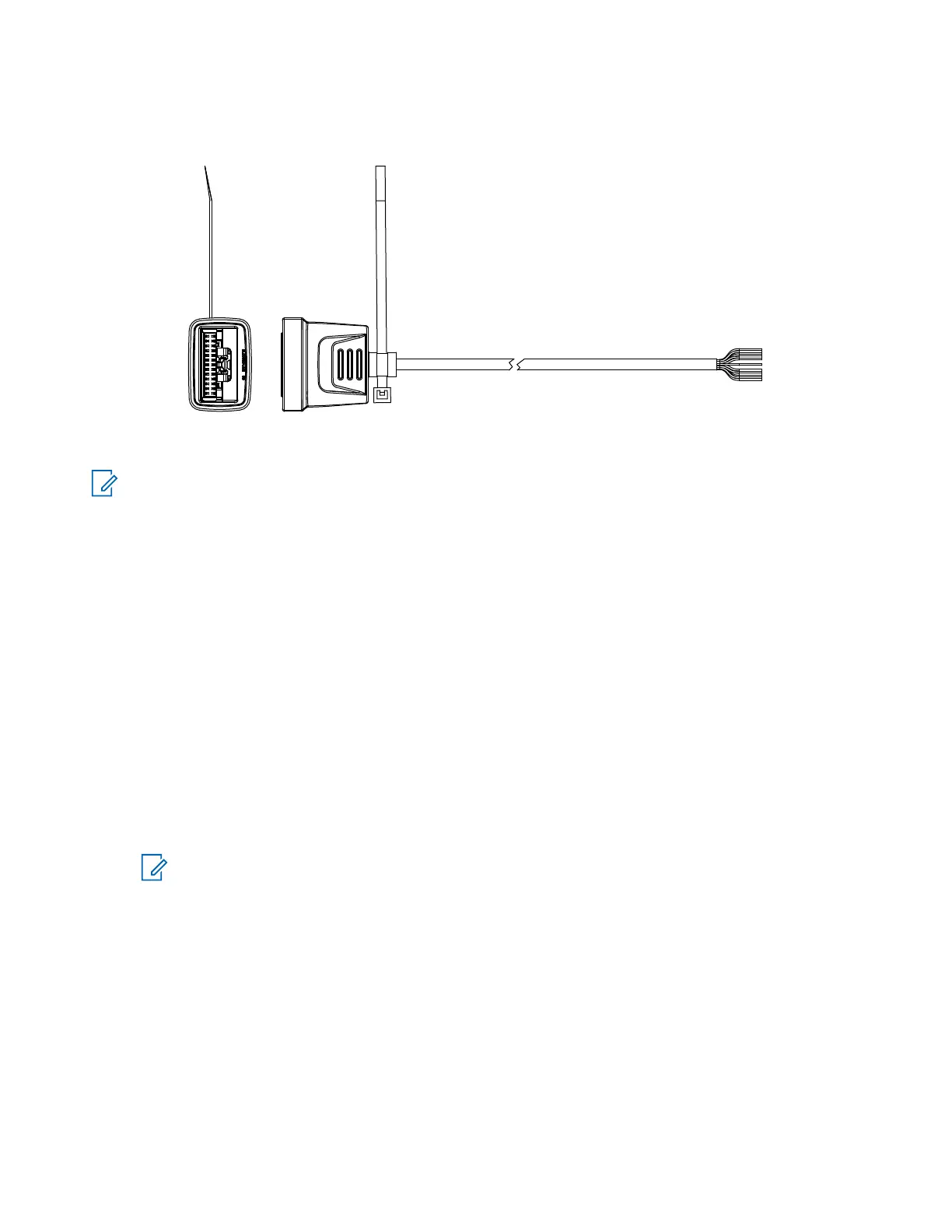

Figure 64: Dust Cover Installation
NOTE: The cable tie must be fully tightened to achieve IP54 compliance.
4.4.2
Performing Re-crimp Procedure Using Rear Accessories
Connector
To use accessories such as RLN4858_ and GKN6272_ with the rear connector of your radio, follow the
re-crimp procedure using the crimp pins provided with PMLN8541_ connector kit. These accessories do not
require to be re-crimped when used with the Data Junction Box GMLN7825_.
Procedure:
1. Cut and remove nickel-plated pins from the wire.
2. Strip the insulation from the end of the wires (2 mm to 4 mm).
3. Place the new gold plated crimp pin (from the PMLN8541_ kit) on the gauge slot on the crimp tool.
4. Insert the wire into the wire slot of the crimp pin.
5. Apply pressure to the crimp tool handle until the wire is crimped by the pin.
NOTE: The recommended crimp tool is SamTec P/N: CAT-HT-179-2030-13. The tool is not part
of PMLN8541_.
