Motorola MXM600 - Figure 34: TSCH Cradle Rear View with Slim Bracket; Table 48: Associated Components

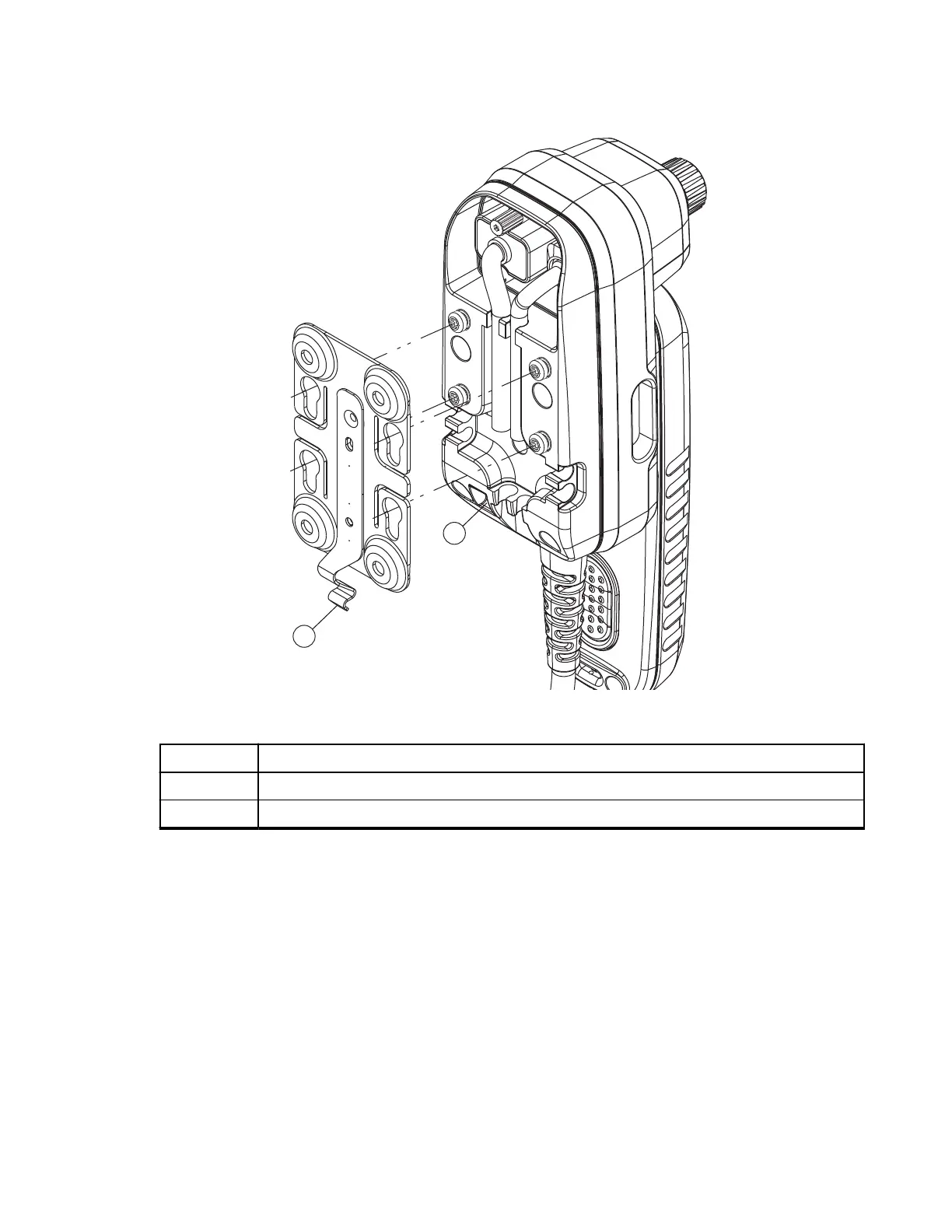

Figure 34: TSCH Cradle Rear View with Slim Bracket
1
2
Table 48: Associated Components
Label Description
1 Bracket Hook
2 TSCH Cradle Locking Slot
4. Pull down the TSCH cradle until the Bracket Hook is fully engaged to the TSCH Cradle Locking Slot.
