Motorola MXM600 - Ignition Sense Cables; Figure 3: 26-Pin Accessory Connector (PMLN8541_); Table 32: Associated Components; Table 33: Ignition Sense Cables

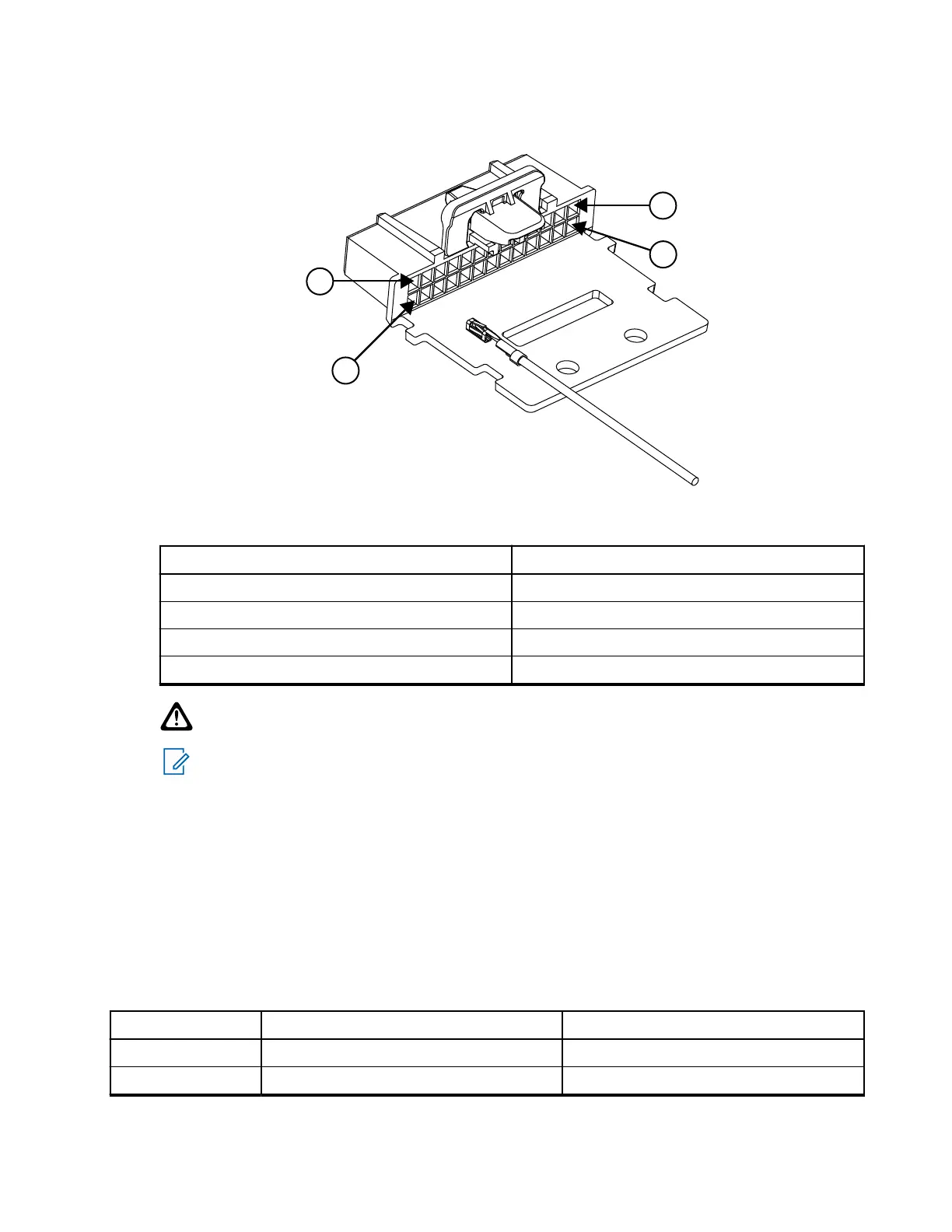

Figure 3: 26-pin Accessory Connector (PMLN8541_)
25
1
26
2
Table 32: Associated Components
Label Description
1 Socket number one
2 Socket number two
25 Socket number 25
26 Socket number 26
CAUTION: If the ignition line is not used, it must be grounded. Interference can cause your radio
to hang.
NOTE:
The terminal accepts a 12 V or 24 V input for the Ignition Sense line. For 24 V installations,
convert the main supply from 24 V to 12 V. For more information, see General Guidelines for
Radio Installation on page 32. Motorola Solutions recommends a suitable range of DC/DC
converters available from Alfatronix LTD UK. Some models are also available through Motorola
Solutions Service Organization. For further information, refer to your Account Manager.
The ignition sense cable kit contains a thin cable and a fuse holder.
2.4.1
Ignition Sense Cables
Table 33: Ignition Sense Cables
Part Number Description Rating
PMKN4120_ Ignition Sense Cable with fuse 4 A Ignition Sense Cable, Length: 3 m
6580283E02 Fuse 4 A for Ignition Sense Cable
MN009998A01-AA
Chapter 2: Vehicle Preparation
37
