Motorola MXM600 - Installing IP67 Remote Ethernet Control Head in a Motorcycle; Figure 39: Differentiation between TELCO IP67 Control Head and IP67 RECH; Table 52: Associated Components

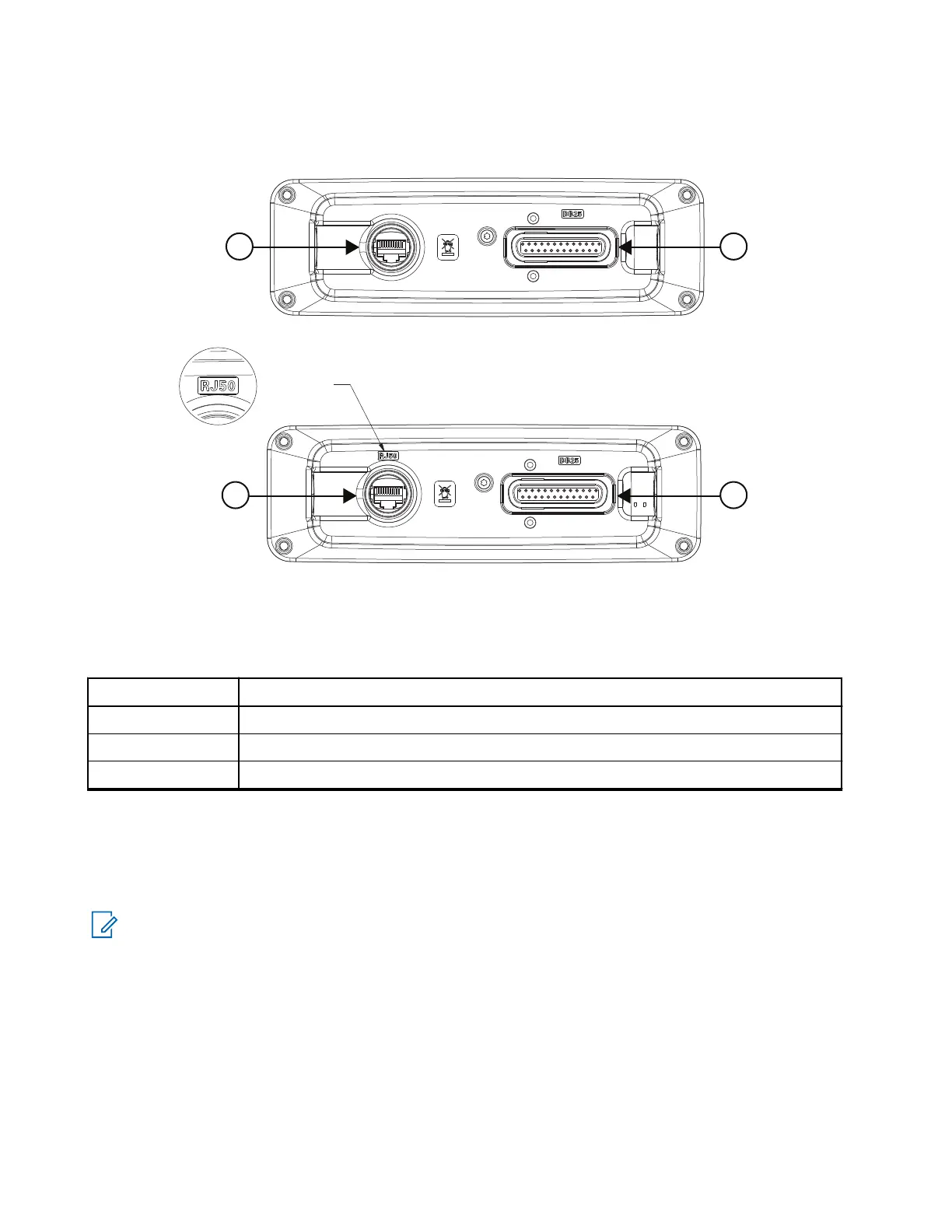

Figure 39: Differentiation Between TELCO IP67 Control Head and IP67 RECH
2
2
1
3
TELCO IP67 Control Head (Legacy)
ETHERNET
RJ50 PORT
IP67 Remote Ethernet Control Head (RECH)
Table 52: Associated Components
Number Description
1 10-Pin TELCO Connector
2 25-Pin DB25 Connector
3 Ethernet RJ50 Connector
3.5.1
Installing IP67 Remote Ethernet Control Head in a
Motorcycle
NOTE:
Only persons who are competent and able to ensure that the complete installation fulfills regulatory
requirements, such as ElectroMagnetic Compatibility (EMC) are allowed to plan the installation.
Ensure that the distance from the antenna location on the transceiver enclosure is at least 30 cm or 1 ft
to the motorcycle operator in compliance with RF Energy Safety standards. To ensure that human
exposure to radio frequency electromagnetic exposure is within the guidelines referenced in this
document, transmit only when bystanders are at least 90 cm or 3 ft from the motorcycle.
Prerequisites:
Ensure that the transceiver box is turned off during installation.
