3.3.1
Ethernet Cables
WARNING: Dual Remote Expansion Head (DREH) is only compatible with Ethernet Remote Heads. Do
not combine Ethernet Control Head with non-Ethernet Control Head. Also, ensure use of proper
Ethernet cables to connect the DREH with Telephone Style Control Head (TSCH), Remote Ethernet
Control Head (RECH) or to another DREH. If not connected properly, the transceiver can be damaged.
Table 40: Ethernet Cables
Item Part Number
RJ50 Ethernet Cable, 3 m (IP67 RECH) PMKN4320_
RJ50 Ethernet Cable, 5 m (IP67 RECH) PMKN4321_
RJ50 Ethernet Cable, 7 m (IP67 RECH) PMKN4322_
RJ50 Ethernet Cable, 10 m (IP67 RECH) PMKN4323_
RJ50 Ethernet Cable, 15 m (IP67 RECH) PMKN4324_
RJ50 Ethernet Cable, 40 m (IP67 RECH) PMKN4325_
Remote Ethernet Cable, 3 m PMKN4141_
Remote Ethernet Cable, 0.5 m PMKN4280_
Remote Ethernet Cable, 5 m PMKN4140_
Remote Ethernet Cable, 7 m PMKN4139_
Remote Ethernet Cable, 10 m PMKN4138_
Remote Ethernet Cable, 12 m PMKN4136_
Remote Ethernet Cable, 15 m PMKN4146_
Remote Ethernet Cable, 40 m PMKN4135_
TETRA Mobile to Mobile Ethernet Cable, 0.5 m PMKN4176_
TETRA Mobile to Mobile Ethernet Cable, 3 m PMKN4177_
TETRA Mobile to Mobile Ethernet Cable, 7 m PMKN4178_

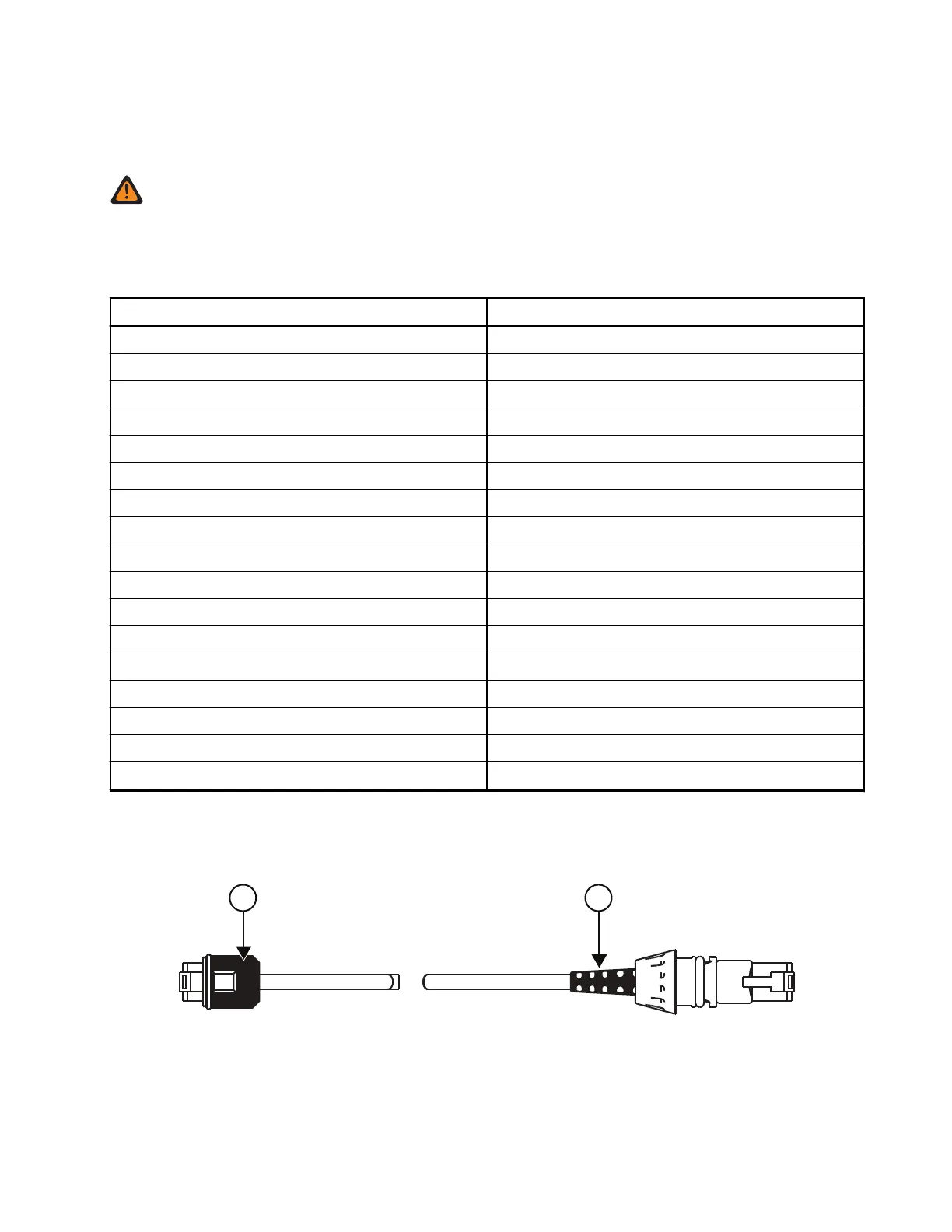

Figure 17: RJ50 Ethernet Cable for IP67 RECH (PMKN4320_, PMKN4321_, PMKN4322_, PMKN4323_,
PMKN4324_, and PMKN4325_)
1 2
