Motorola MXM600 - MXM600 with IP67 Remote Control Head; Figure 37: Configuration with Two Control and Data Terminals; Table 50: Associated Components

PEI using either 5-wire RS232, or USB at 26-pin Accessory Connector. When Expansion Head is connected,
your radio supports PEI through both 9-pin SubD (RS232) at Expansion Head, and 26-pin Accessory
Connector (USB).
The Databox Expansion Head can be used with a virtual head on a Personal Computer (PC) or a third-party
control head.
This configuration allows the controlling of the Transceiver Box with a Control Terminal such as a PC, laptop,
or console. In this configuration, the Control Terminal is a substitute for the Control Head.

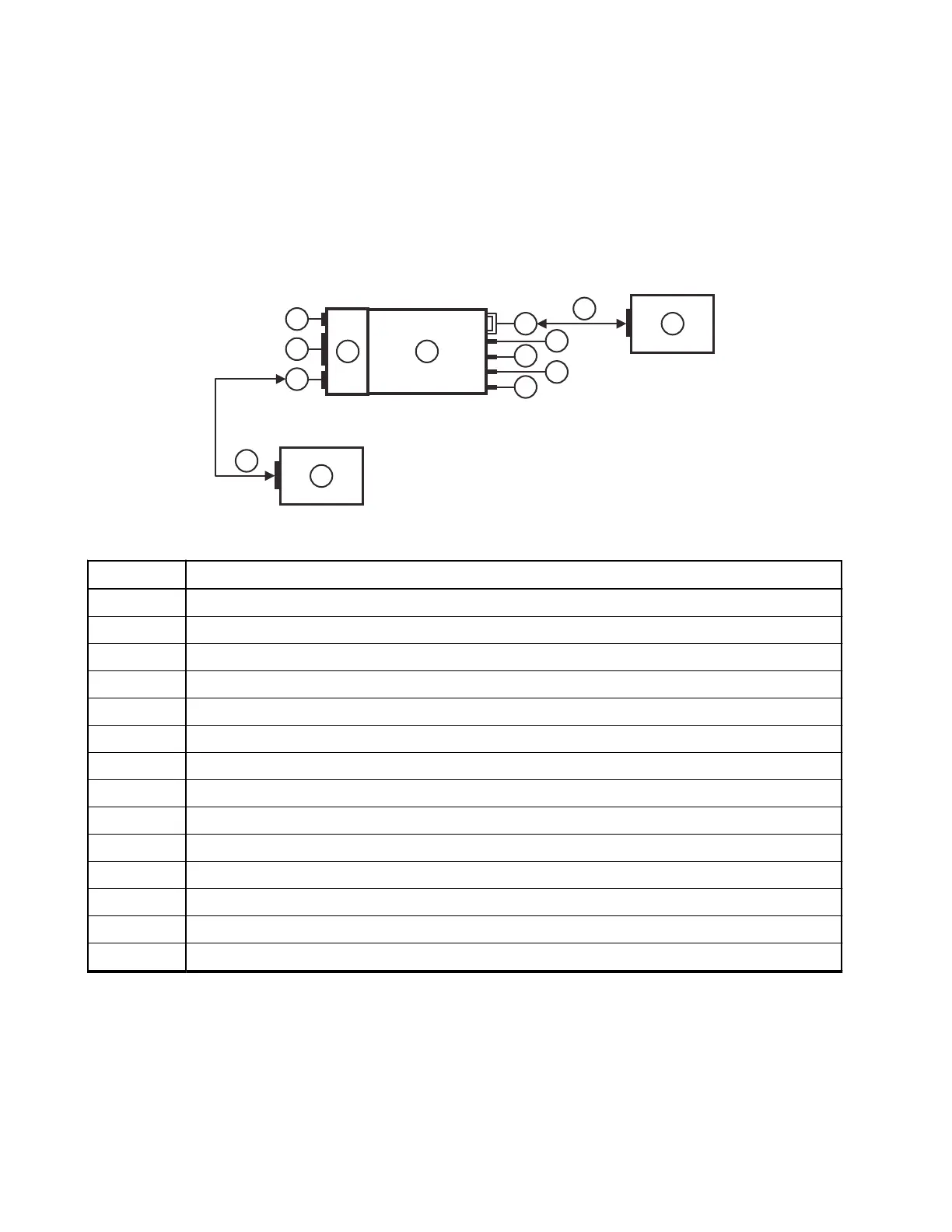

Figure 37: Configuration with Two Control and Data Terminals
4 5
11
6
13
7
8
1
2
3
9
12
14
10
Table 50: Associated Components
Number Description
1 Ethernet Connector (RJ50)
2 Connector (female) 25-pin SubD
3 9-pin subD Connector (female), 8-Wire RS232 PEI Interface
4 Databox Expansion Head
5 Terminal Transceiver Box
6 Accessory Connector (26-pin)/USB 2.0
7 Power Connector
8 SMA Wi-Fi or Bluetooth Connector
9 SMA GNSS Connector
10 BNC RF Antenna Connector
11 RS232 PEI Connection
12 Control and Data Terminal using RS232
13 USB 2.0 Cable for PEI and Programming
14 Control and Data Terminal using USB 2.0
3.5
MXM600 with IP67 Remote Control Head
Motorola Solutions provides standard IP67 installation kits for a range of applications such as motorcycle,
boat, and fire truck water pump area.
