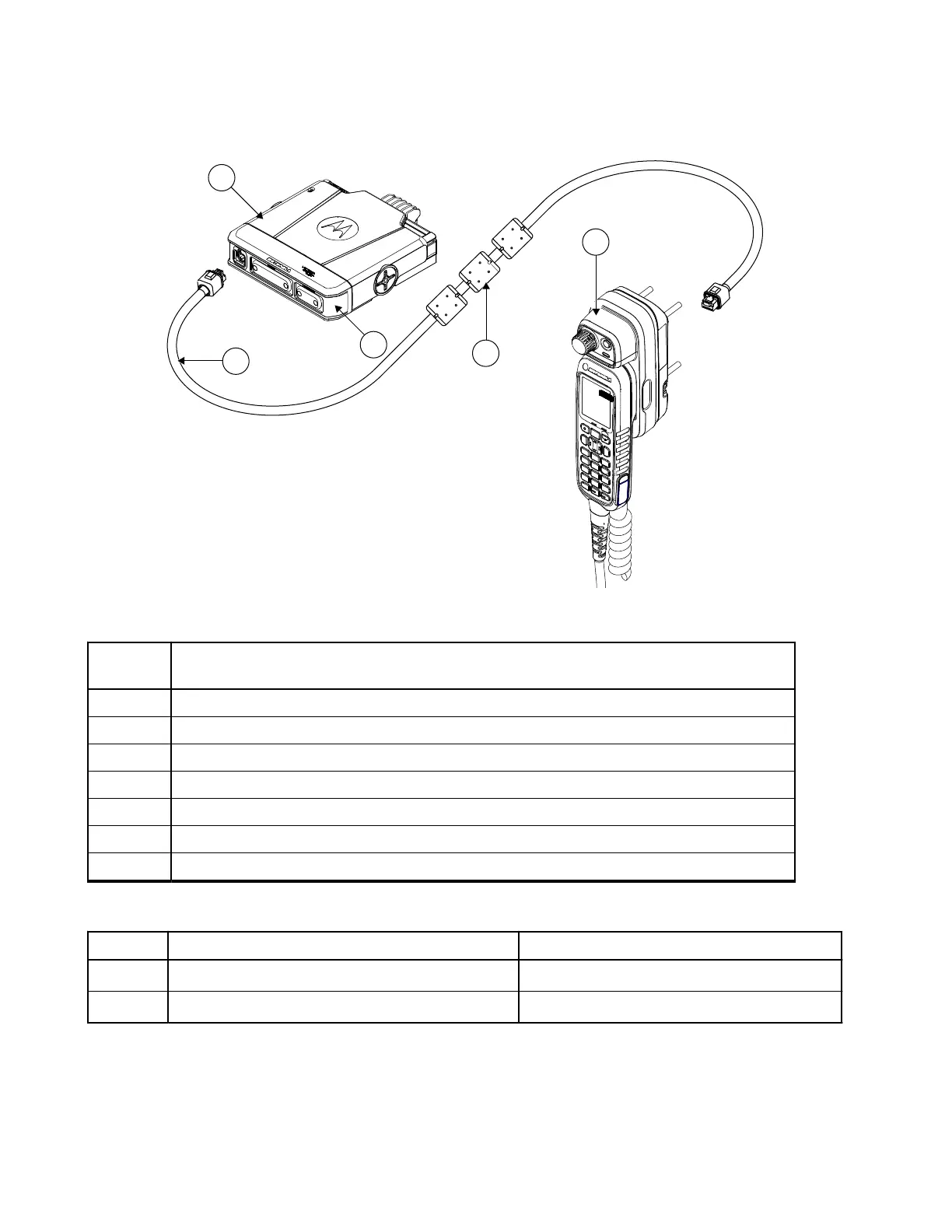

Figure 9: Remote Mount Installation with TSCH and DEH
1
7
3
6
5
Table 37: Configurations – Graphics Description
Num-
ber
Description
1 Transceiver
2 Single Remote Expansion Head (SREH)
3 Remote RJ50 Ethernet Cable or IP67 RECH RJ50 Ethernet Cable
4 IP54 or IP67 Remote Ethernet Control Head (RECH)
5 Ferrite Clamps – 91012044001
6 Telephone Style Control Head (TSCH)
7 Databox Expansion Head (DEH)
Table 38: Associated Components for Remote Mount
Item Description Part Number
1 Remote Ethernet Cable See Table 10: Cables on page 20.
2 IP67 RECH Ethernet Cable See Table 10: Cables on page 20.
MN009998A01-AA
Chapter 3: Radio Installation
44
