Motorola MXM600 - Figure 27: Accessories Expansion RECH Y-Cable; Table 46: Associated Components

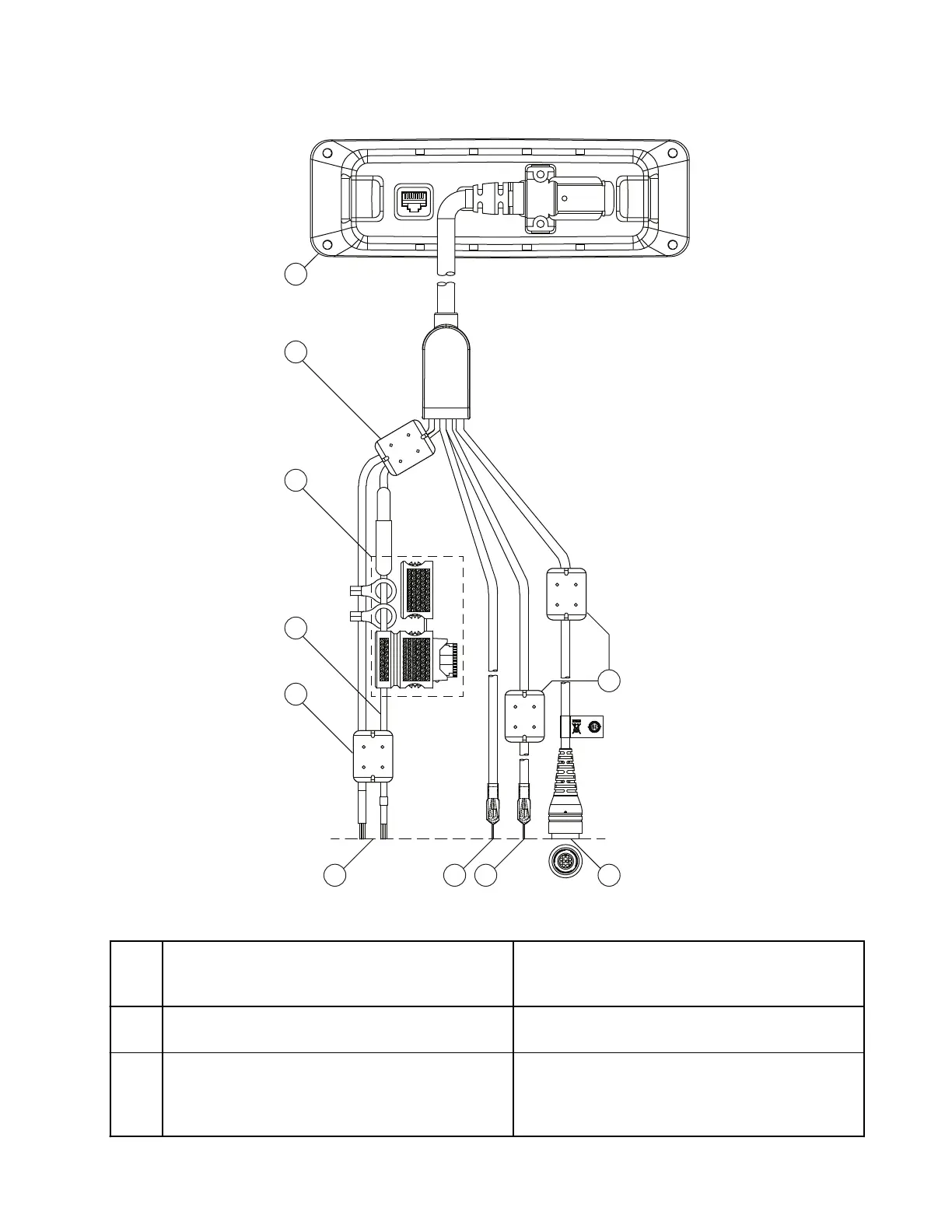

Figure 27: Accessories Expansion RECH Y-Cable
1
6
6
2 3 4 5
7
8
9
Table 46: Associated Components
Nu
mb
er
Item
Description
1 Remote Ethernet Control Head with the cable
connected by the DB25 Connector
-
2 Ground Wire and External Power Wire, Input
supply 12 V/24 V: 2 A
The connections correspond to P4 and P5, as
detailed in Remote Ethernet Control Head Y-
Cable (Accessories Expansion Cable) on page
117, which provides the Pin Diagram of Cable
MN009998A01-AA
Chapter 3: Radio Installation
59
