Motorola MXM600 - Figure 55: Top of Dash Mount; Table 64: Associated Components

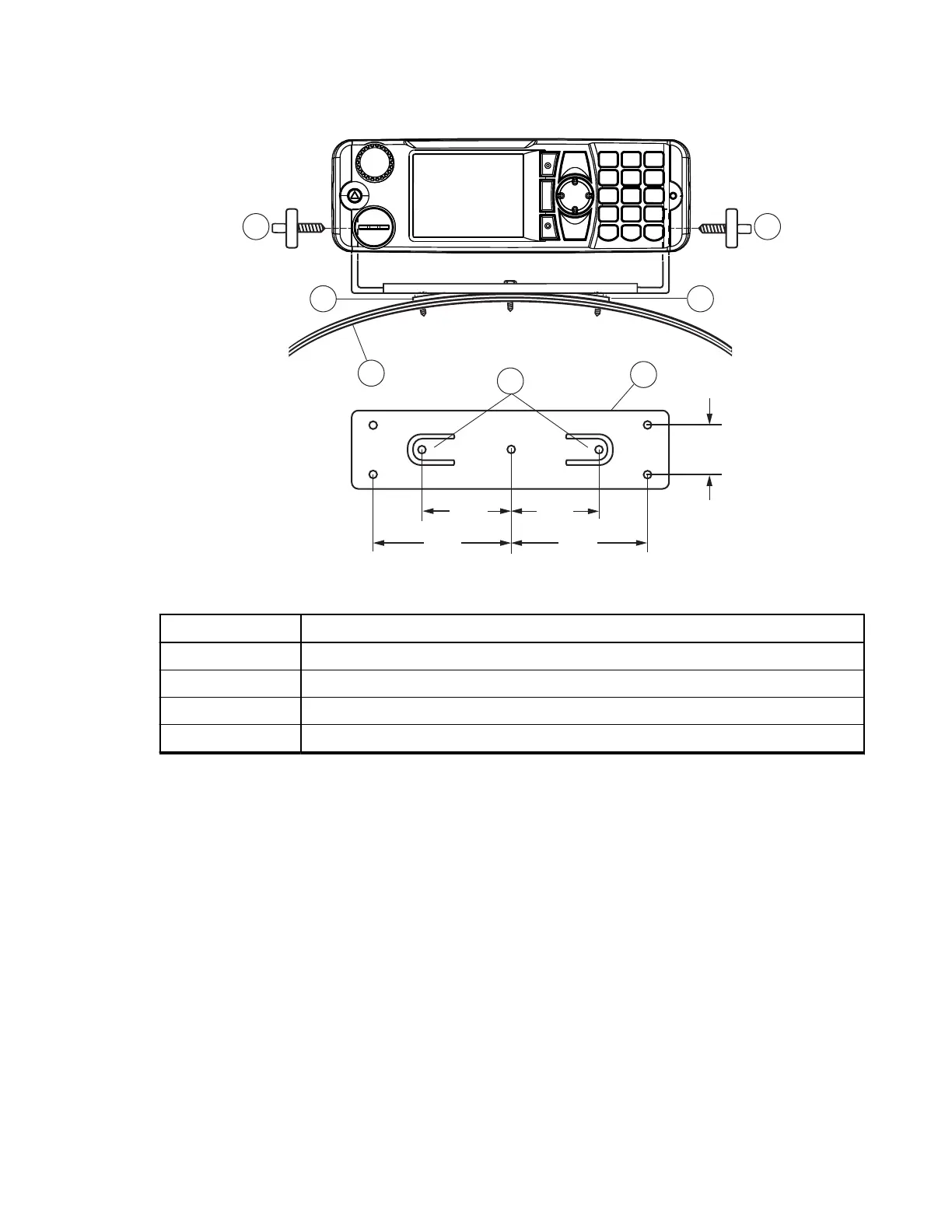

Figure 55: Top of Dash Mount
1
46 mm
(1.84")
73 mm
(2.92")
73 mm
(2.92")
46 mm
(1.84")
28 mm
(1.12")
1
22
3
2
4
Table 64: Associated Components
Number Description
1 Wing screw
2 Tab
3 Mounting surface
4 Trunnion mounting bracket
The compatible trunnion kit comes complete with the following:
● 0771061L01 – GLN7317_Bracket, Standard Trunnion, or
● 0771061L02 – GLN7317_Bracket, Low Trunnion, or
● BR000490A01 – PMLN8620_ Bracket, Enhanced Trunnion
● 0302637Y01 – Wing Screw M5x7.9 mm, quantity 2
● 0400002647 – Lock Washer, quantity 2
● 0312002B14 – Self-drill Steel 10-16x1, quantity 4
MN009998A01-AA
Chapter 3: Radio Installation
89
