4.4
Connecting Accessories to 26-Pin Connector
IMPORTANT: Refer to MXM600 Accessories-to-Model Chart on page 19 for accessories or technical
manual for more information. Ensure the correct position of the accessory connector.
4.4.1
Cabled 26-Pin Connector
The Cabled 26-Pin Connector, PMKN4303_ is crimped and terminated to the 26-Pin Accessory Connector,
with open-ended wires. The cable enables the installer to directly connect necessary accessories to the
open-ended side of the cable without crimping process, unlike PMLN8541_.

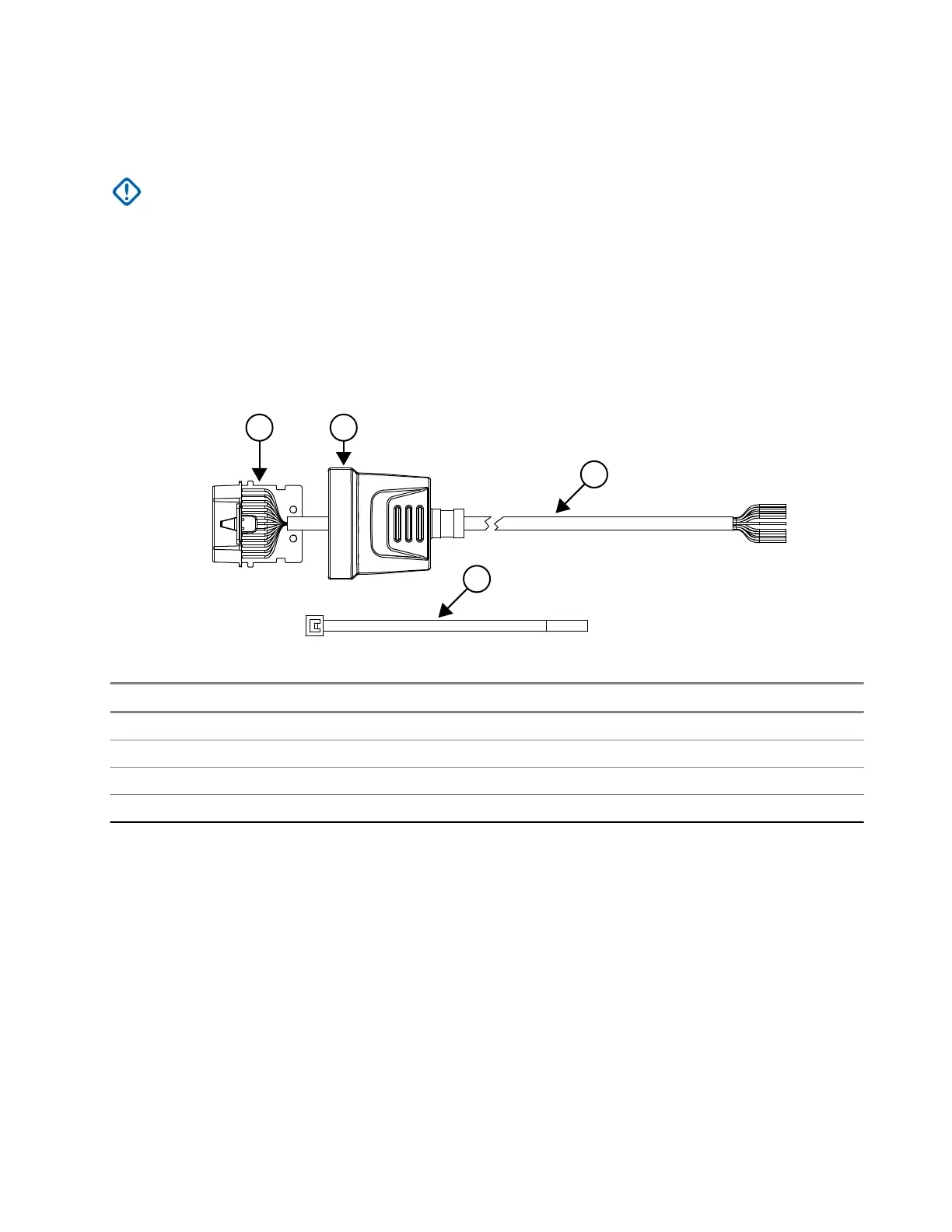

Figure 63: 26-Pin Rear Connector with Pre-Crimped, Open-Ended Cable and Dust Cover
1 2
4
3
Number Description
1 26-Pin Accessory Connector
2 Dust Cover
3 Pre-crimp wires, open-ended
4 Cable tie
MN009998A01-AA
Chapter 4: Connectors and PIN Assignment
99
