4.3

Accessory Connection Plan

CAUTION: The accessory connections shown are not compatible to some other models of Motorola

Solutions radios. Check MXM600 Accessories-to-Model Chart on page 19 for the appropriate accessory

or technical manual for further information. Ensure that the accessory connector is correctly positioned.

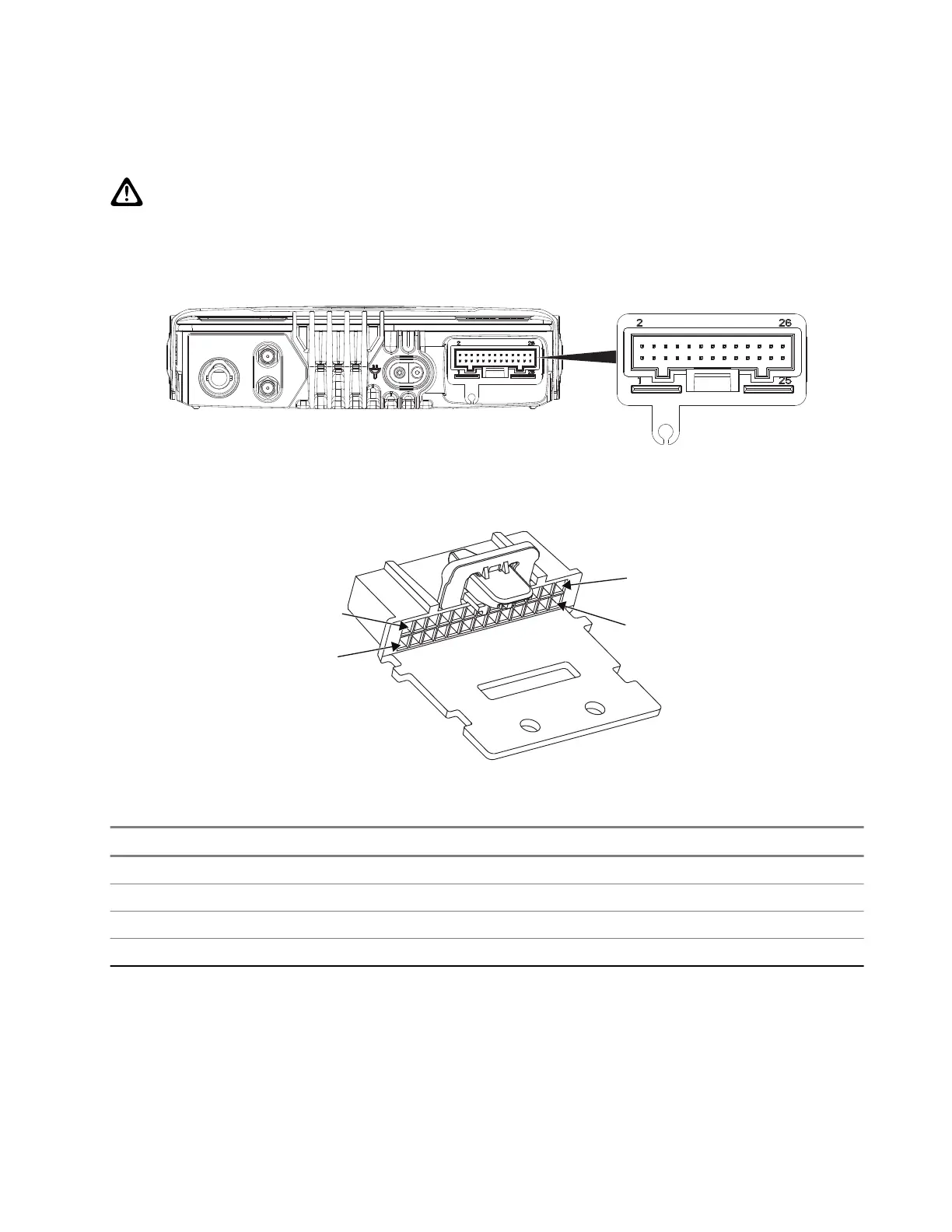

Figure 59: Accessory Connector

Figure 60: 26-Pin Accessory Connector (PMLN8541_)

Table 72: PMLN5072_ Accessory Connector Kit Items

Item Part Number

Accessory Connector 26-pin 1516174H01

Crimp Contact 20–24 AWG (27 units) 3915560H01

Nylon Tie Rap 4210217A02

Service Tool 6671929L01

MN009998A01-AA

Chapter 4: Connectors and PIN Assignment
