Motorola MXM600 - Figure 61: 26-Pin Rear Connector with Pre-Crimped, Open-Ended Cable (PMKN4303_); Figure 62: Connecting Diagrams

Figure 61: 26-Pin Rear Connector with Pre-Crimped, Open-Ended Cable (PMKN4303_)
PMKN4303_ is a cable assembly with the 26-pin connector (CN002065A01) that comes with fully crimped
contacts and wires.

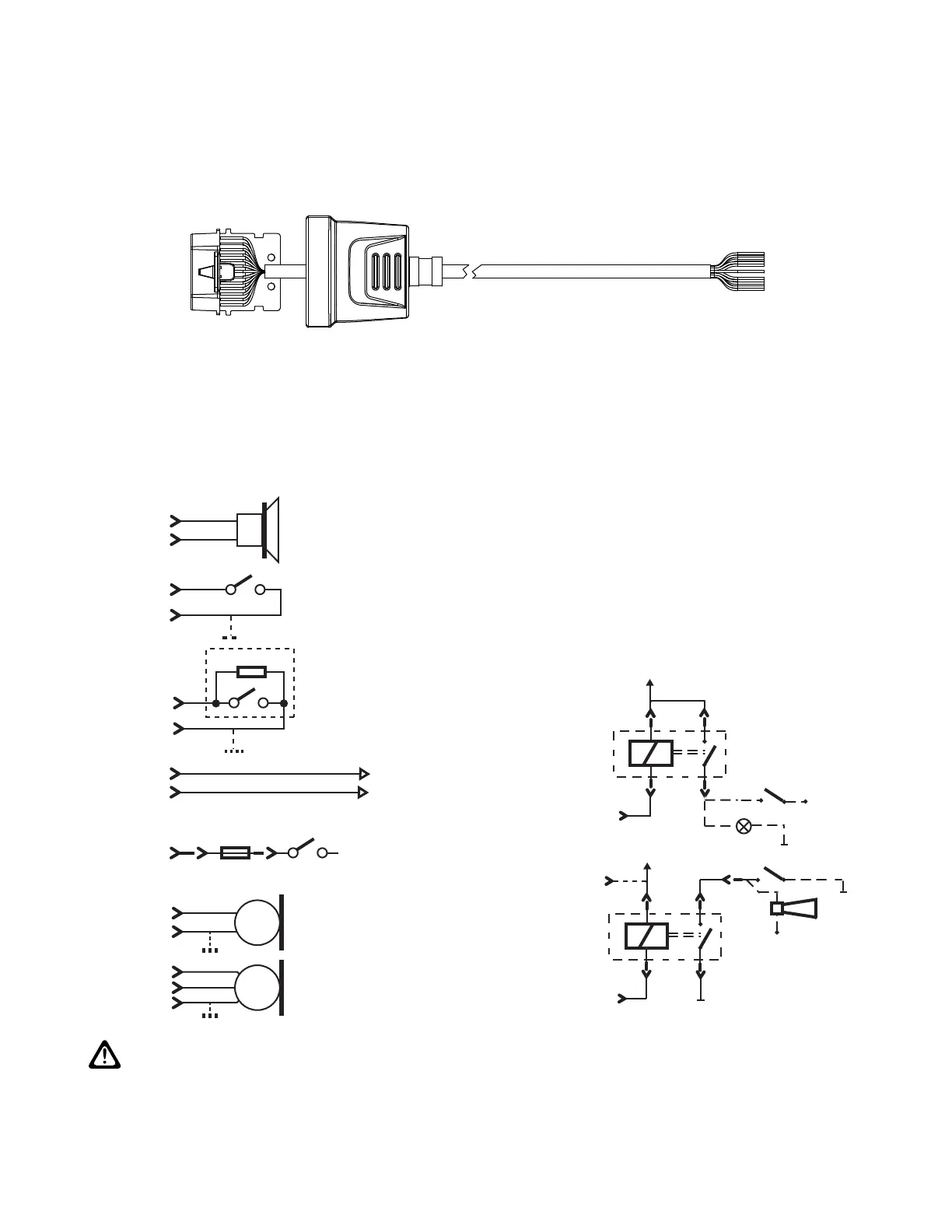

Figure 62: Connecting Diagrams
86
85
87
30
+12 V
EXT_ALARM 26
86
85
87
30
+12 V
EXT_ALARM 26
+12 V
+12 V
SWB+ 7
EXT_PTT 17
GND 8
EMERGENCY 23
12k
GND 8
RSN4002 Speaker 13 W
RSN4004 Speaker 5 W
RLN4857 Pushbutton w/Remote PTT
RLN4858 Gooseneck PTT
RLN4836 Tri-state Emergency
Footswitch and Cable
4 A
PMKN4119 Speaker Extension Cable
PMMN4087 Visor Microphone w/ cable
GMMN4065
RMN5054
HKN9327 Ignition Sense Cable w/ fuse
Car Ignition
Switch
PMLN5072 Accessory connector kit containing:
1516174H01 Accessory Connector 26-pin
3915560H01 Crimp Contact 20-24 AWG (quantity 27)
4210217A02 Nylon Tie Rap
6671929L01 Service Tool
The recommended crimp tool (not part of PMLN5072):
SamTec P/N: CAT-HT-179-2030-13
GMLN5091 External Alarm Relay Kit containing:
GKN6272 External Alarm Relay and Cable
PMLN5072 Accessory Connector Kit
SPEAKER + 9
SPEAKER - 10
MIC1/EXT_MIC 13
GND_MIC 16
SPEAKER + 9
SPEAKER - 10
IGNITION 25
9
10
+12 V/
+24 V
MIC1/EXT_MIC 13
GND_MIC 16
1-WIRE 5
CAUTION: HKN9327_ Ignition Sense Cable: If the ignition line is not used, it needs to be grounded.
Interference can cause radio to hang.
