3.3.9.1
Mounting TSCH Cradle onto Slim Bracket
Procedure:
1. Place the bracket on the intended location. Tighten the four screws (0312002B14) to the screw holes.

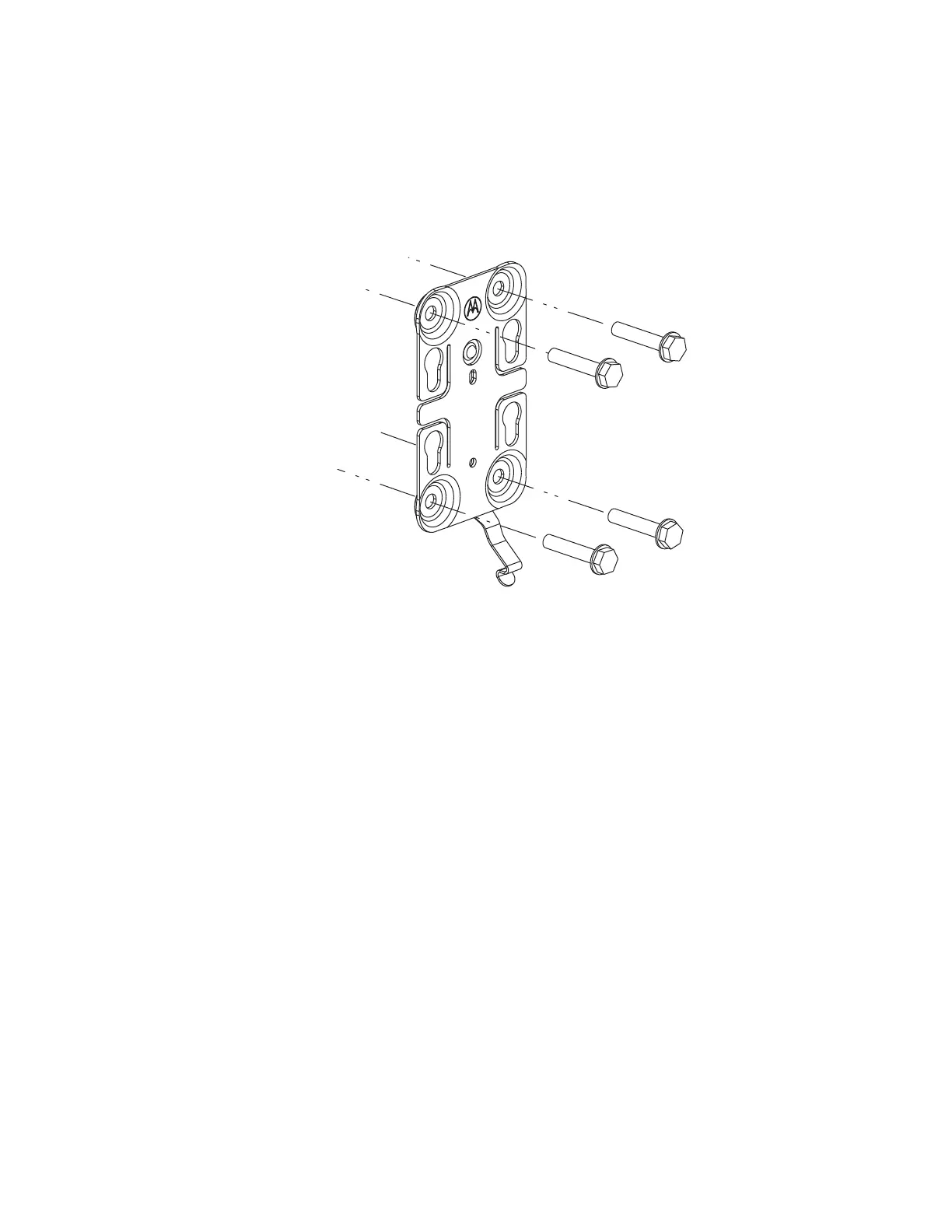

Figure 32: Slim Bracket
2. Align the four screws (03012069001) to the Telephone Style Control Head (TSCH) cradle. Tighten the
screws with a 5 lbf in. (0.5649 Nm) screw torque.
