Table 41: Associated Components
Number Description
1 Dust Cap Rubber (blue color)
2 Strain Relieve (blue color)

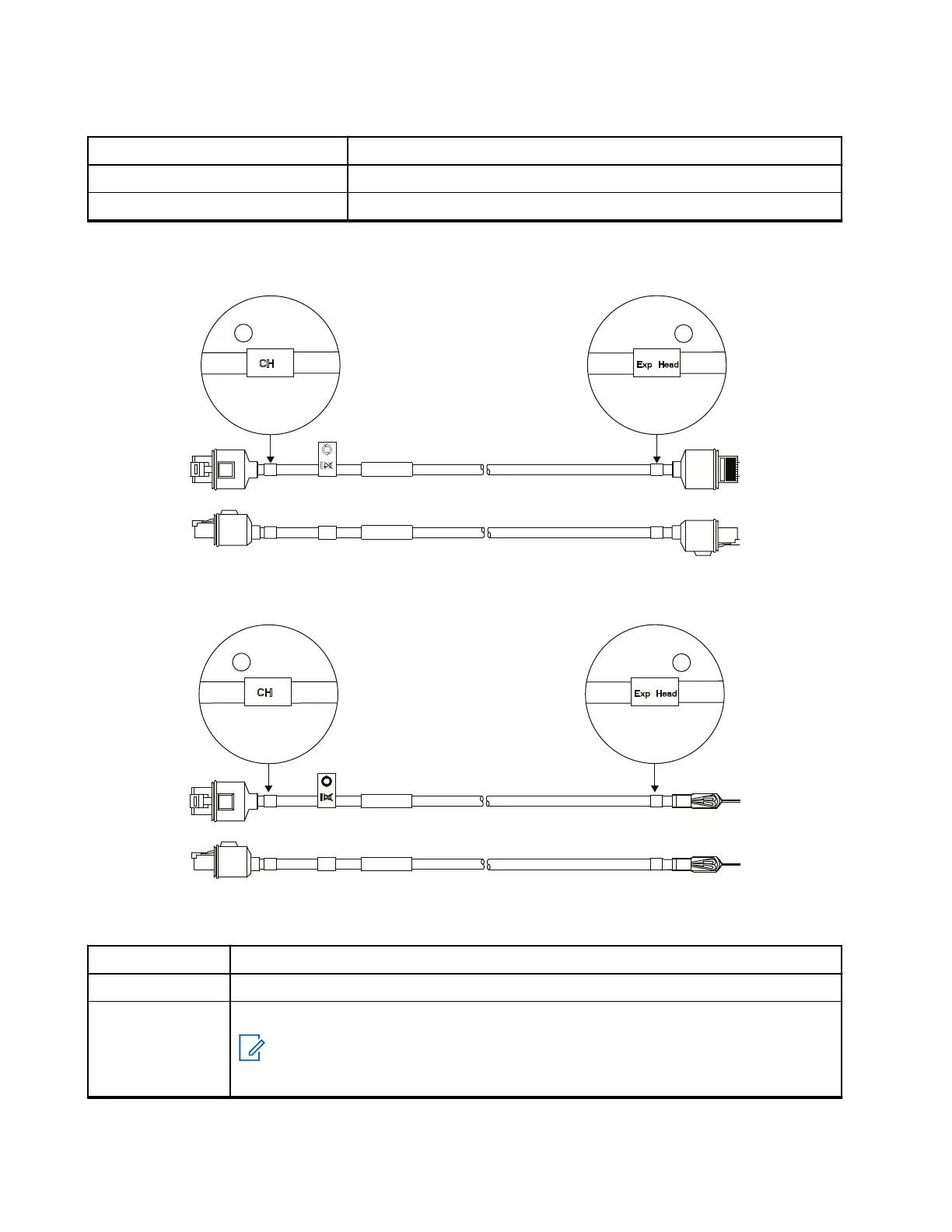

Figure 18: Remote Ethernet Cable (PMKN4280_, PMKN4141_, PMKN4140_, PMKN4139_, PMKN4138_,
PMKN4136_, and PMKN4146_)
1
2
Figure 19: Remote Ethernet Cable, 40 m (PMKN4135_)
1
2
Table 42: Associated Components
Annotation Description
1 Exp Head mark
2 CH mark
NOTE: Requires three (3) Ferrite Clamps, Part Number 91012044001. Man-
ually install all Ethernet cables. Install clamps on the CH end of the cable
with two turns of wire around each clamp.
