Motorola MXM600 - Motorcycle Mount TELCO Cable; Remote Mount Ethernet Cables; Accessories Expansion Cable; Figure 73: Motorcycle Remote Control Head (TELCO) Cable

4.8.2
Motorcycle Mount TELCO Cable
IP67 TELCO Control Head Cable (to connect IP67 TELCO Control Head to Serial Expansion Head
PMLN4904_ only). Part Number: PMKN4030_, Length: 2.3 m (7.55 ft).
For more information, see Mechanical Parts List for IP67 Remote Mount Installation on page 75
Figure 73: Motorcycle Remote Control Head (TELCO) Cable
4.8.3
Remote Mount Ethernet Cables
Remote Mount Ethernet Cables are compatible with:
● IP54 or IP67 Remote Ethernet Control Head (RECH)
● Telephone Style Control Head (TSCH)
● Single Remote Expansion Head (SREH)
● Dual Remote Expansion Head (DREH)
● Databox Expansion Head (DEH)
For more information, see Ethernet Cables on page 51.

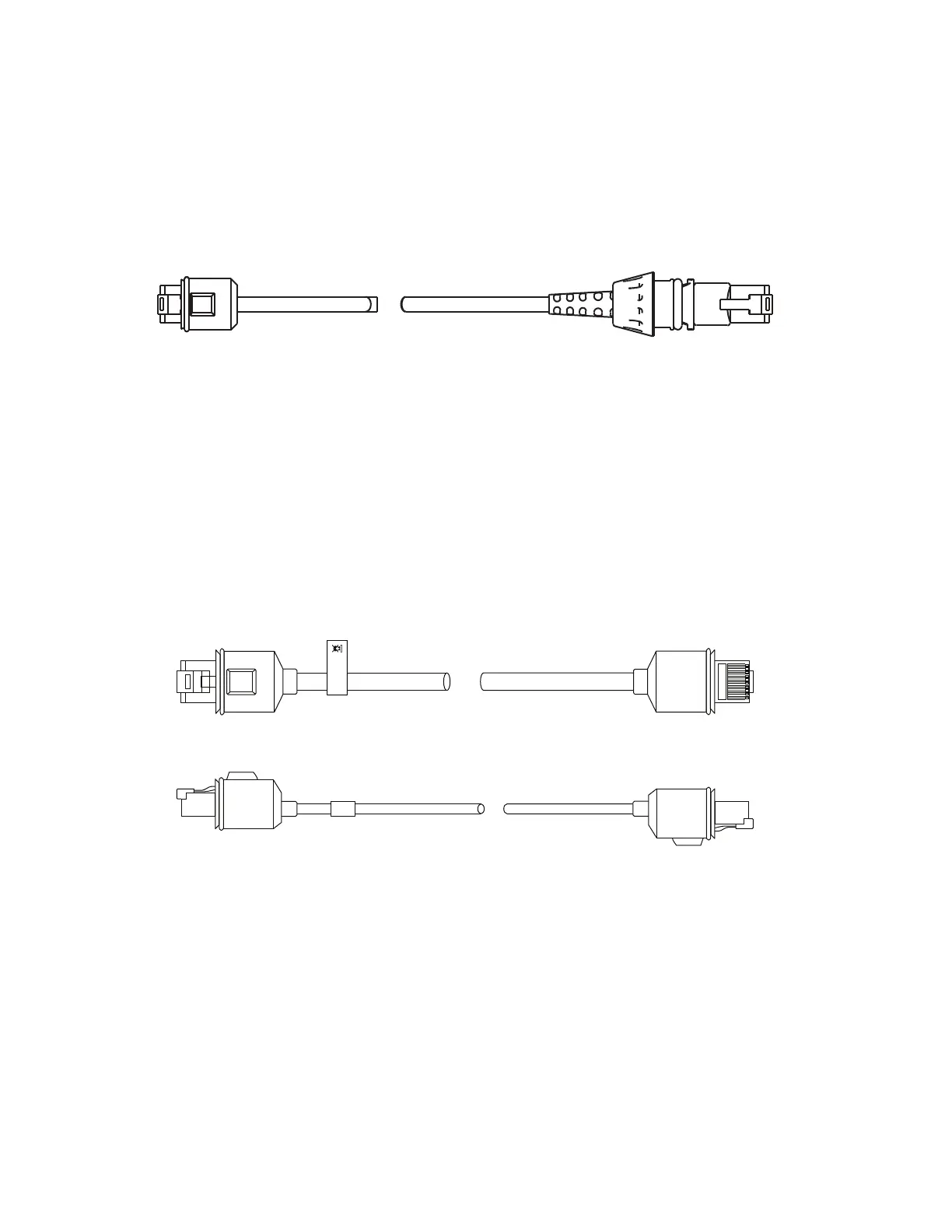

Figure 74: Remote Mount Ethernet Cables
4.8.4
Accessories Expansion Cable
The Accessories Expansion Cable is used to connect the IP54 or IP67 Remote Ethernet Control Head
(RECH) to accessories.
The Part Numbers are as follows:
● IP54 RECH Accessories Expansion Cable – PMKN4029_ or PMKN4056_.
● IP67 RECH Accessories Expansion Cable – PMKN4429_ or PMKN4456_.
