Motorola MXM600 - Connection Plan for Accessory Plug; Table 62: Connection Plan for Accessory Connector Kit

5. Insert the provided fuse into the fuse holder and close the cover.
CAUTION: PIN 4: Ground the ignition line if it is not in used. Interference can cause your radio
to hang.
3.6.6
Connection Plan for Accessory Plug

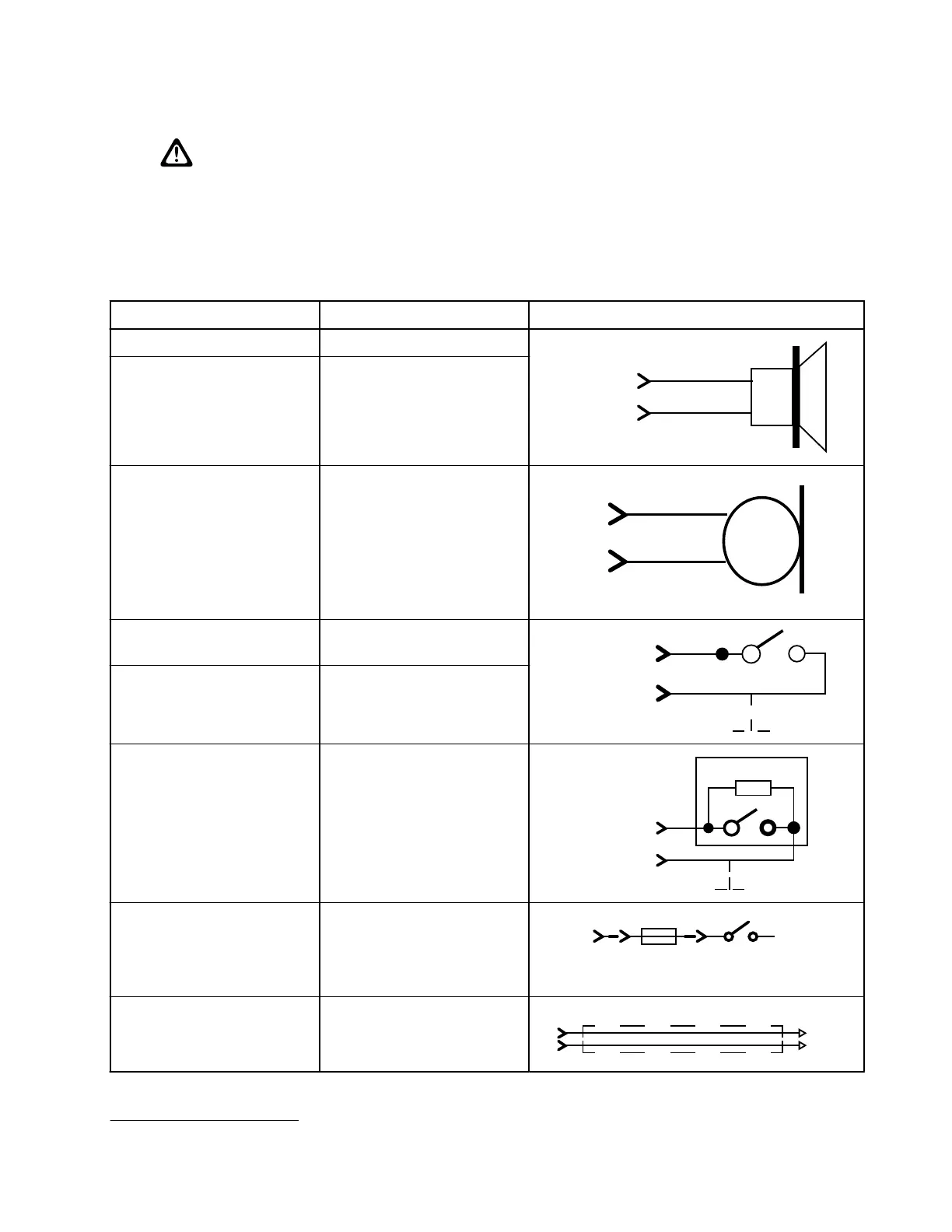

Table 62: Connection Plan for Accessory Connector Kit
Part Number Description Cable Connectivity
RSN4002 _ Speaker 13 W
SPKR- 2
SPKR+ 1
RSN4003_ Speaker 7.5 W
PMMN4087_ Visor-mounted micro-
phone
MIC+1 8
MIC GND 9
RLN5926_
1
Push button for Push-to-
Talk (PTT)
External PTT 3/
Emergency 5
GND 7
RLN4858_
1
Goose neck PTT
RLN4836_ Tri-state emergency foot
switch and cable
12k
Emergency 5
GND 7
PMKN4120_ Ignition sense cable
Ignition 4
+12V
Car
Ignition
Switch
4A
PMKN4119_ Speaker extension cable
5m
1
2
1
You can use this accessory for the Push-To-Talk (PTT) or Emergency function.
MN009998A01-AA
Chapter 3: Radio Installation
85
