Motorola MXM600 - Telephone Style Control Head; Figure 29: Telephone Style Control Head (TSCH) Cradle

3.3.9
Telephone Style Control Head
The Ethernet Style Handset can be installed both horizontally and vertically. When installing the telephone
style control head, consider the wide viewing angle of the color display and the best direction to disengage
the handset from the cradle.

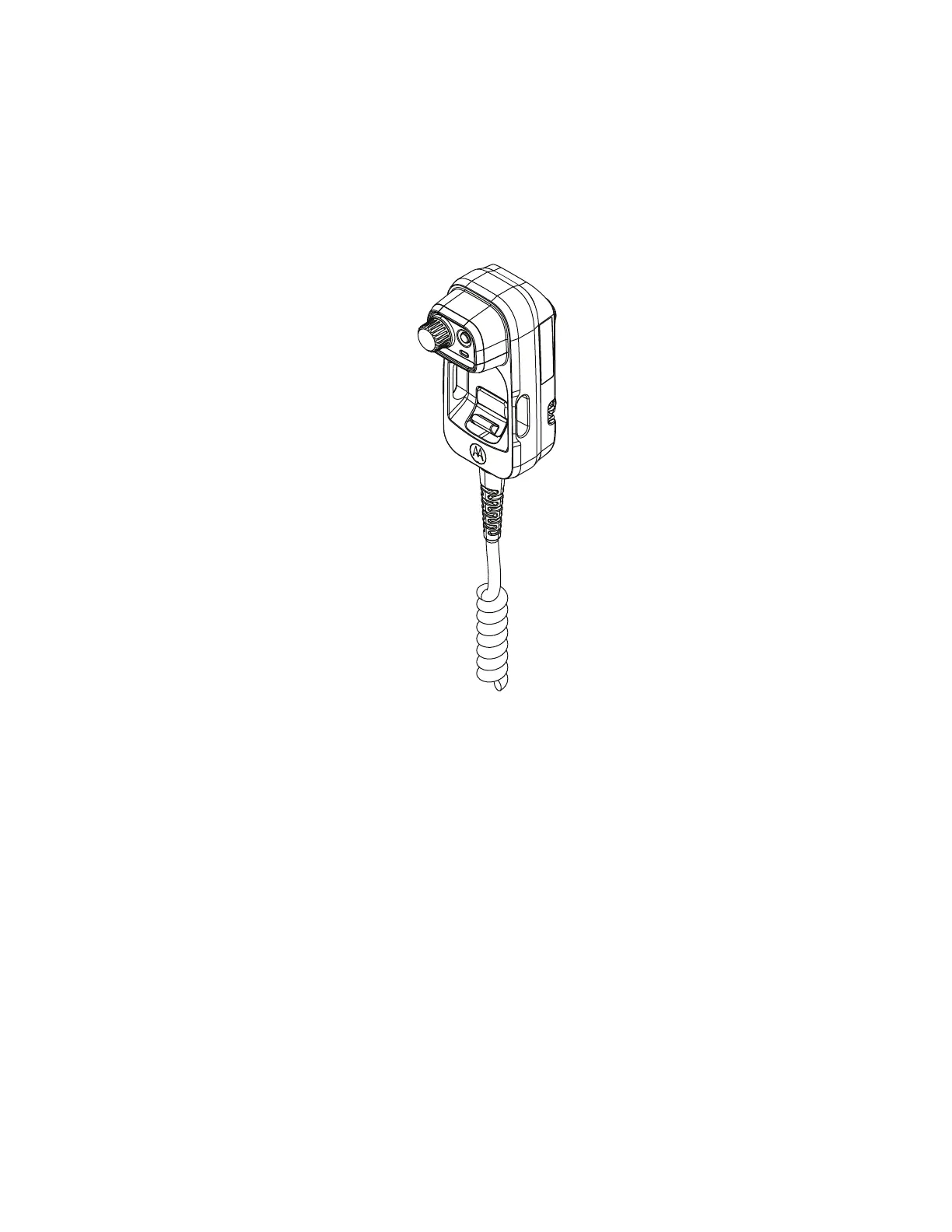

Figure 29: Telephone Style Control Head (TSCH) Cradle
MN009998A01-AA
Chapter 3: Radio Installation
63
