DCS Command System User’s Guide
Universal Locomotive & Accessory Operation
Advanced Wiring

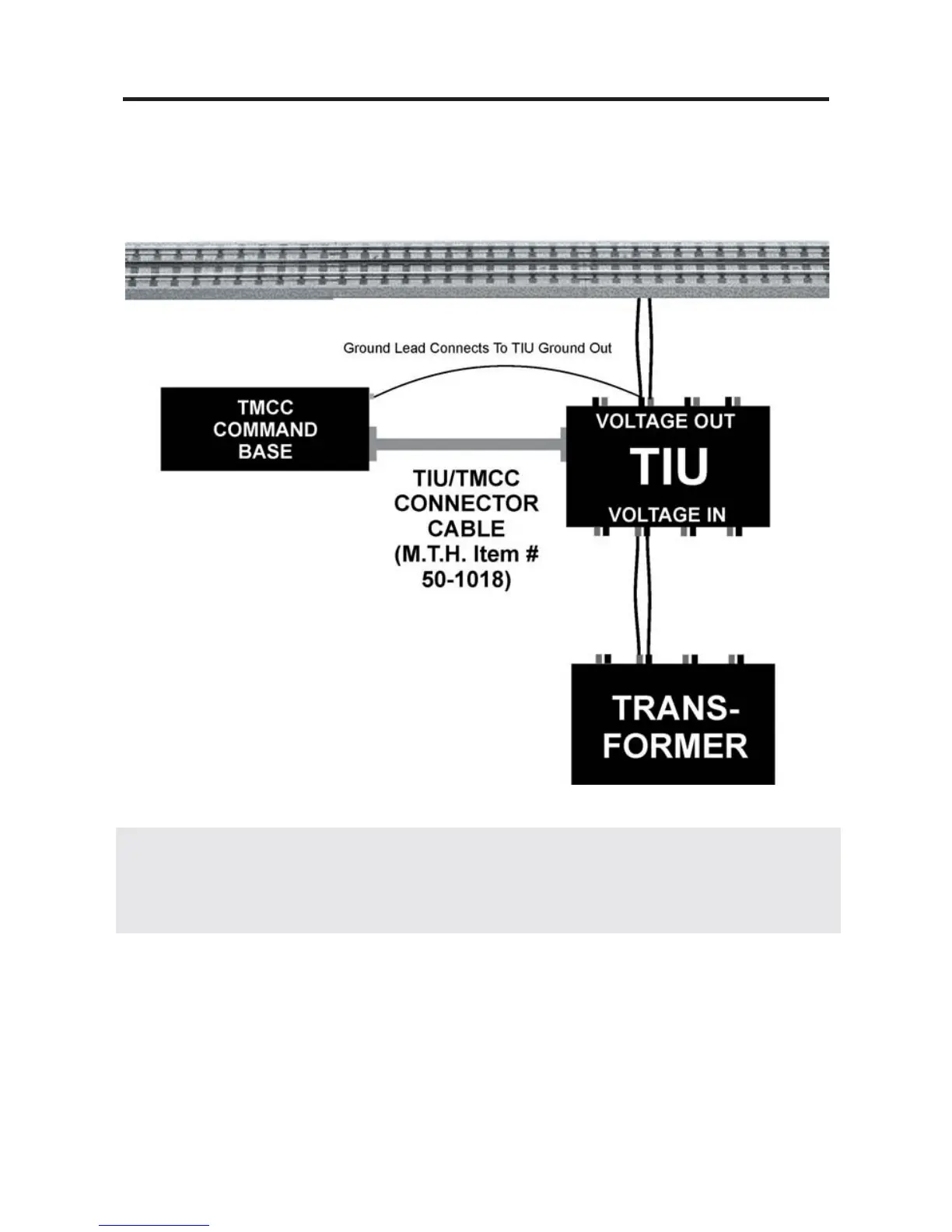

Connecting the TMCC Command Base to a DCS Layout
100
Note: While the TIU/TMCC Connector Cable (Item No. 50-1018) looks like a standard computer
DB-9 cable, two of the pins have been reversed to allow the TIU and Command Base to communicate.
A standard DB-9 cable will not work in this application.
