DCS Command System User’s Guide
Menu Operations - Advanced
Scene Setup
Set Scene works essentially the same way
as Set Route, except that this feature pro-
grams accessories. If you want certain
lights, signals, or other accessories to
operate in tandem, for instance when you
operate a particular train or industry, you
can program them here.
The DCS system allows you to set up to
15 scenes per handheld, and you can con-
trol up to 250 accessories per scene.
Note: your TIU and accessories must be con-
nected through an AIU for this feature to work.
See the AIU Operator’s Manual for instructions
on wiring, mapping, and naming accessories.
Create Scene

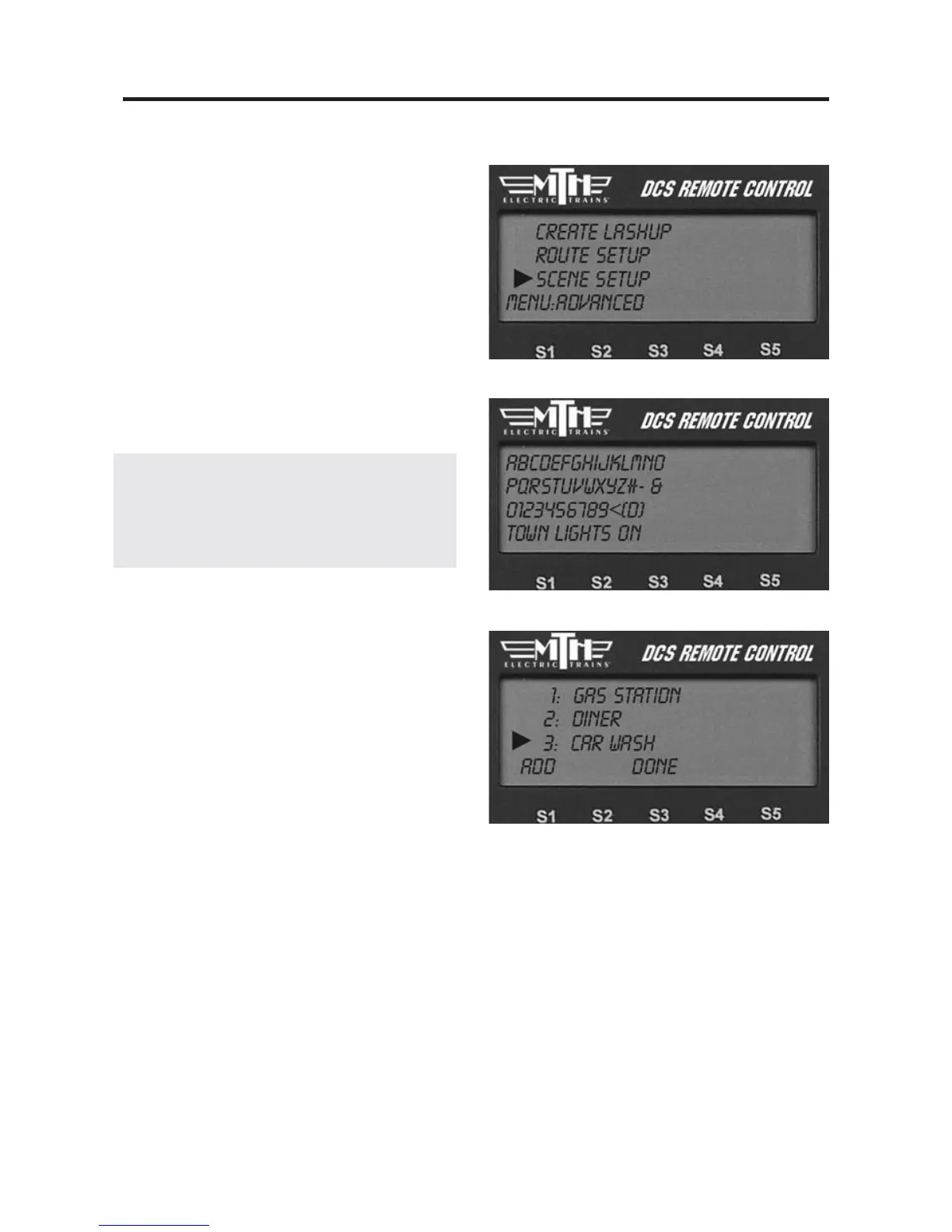

1. Name the scene. An alphanumeric
character set is displayed; use the thumb-
wheel to scroll through the character set,
and when the character you want to type
next is bracketed, press the thumbwheel
to select it. You may give the scene a
name up to 16 characters long. Select the
“D” at the end of the character set to sig-
nify that you are done with this function.
2. You are given a list of all the acces-
sories entered into the DCS system.
Scroll the thumbwheel until the arrow is
beside the accessory you want to add to
the scene and press the On button to
indicate that the accessory should activate
when you run the scene.
3. Add the next accessory.
