DCS Command System User’s Guide
Universal Locomotive & Accessory Operation
Advanced Wiring
Wiring through a Variable Channel Only

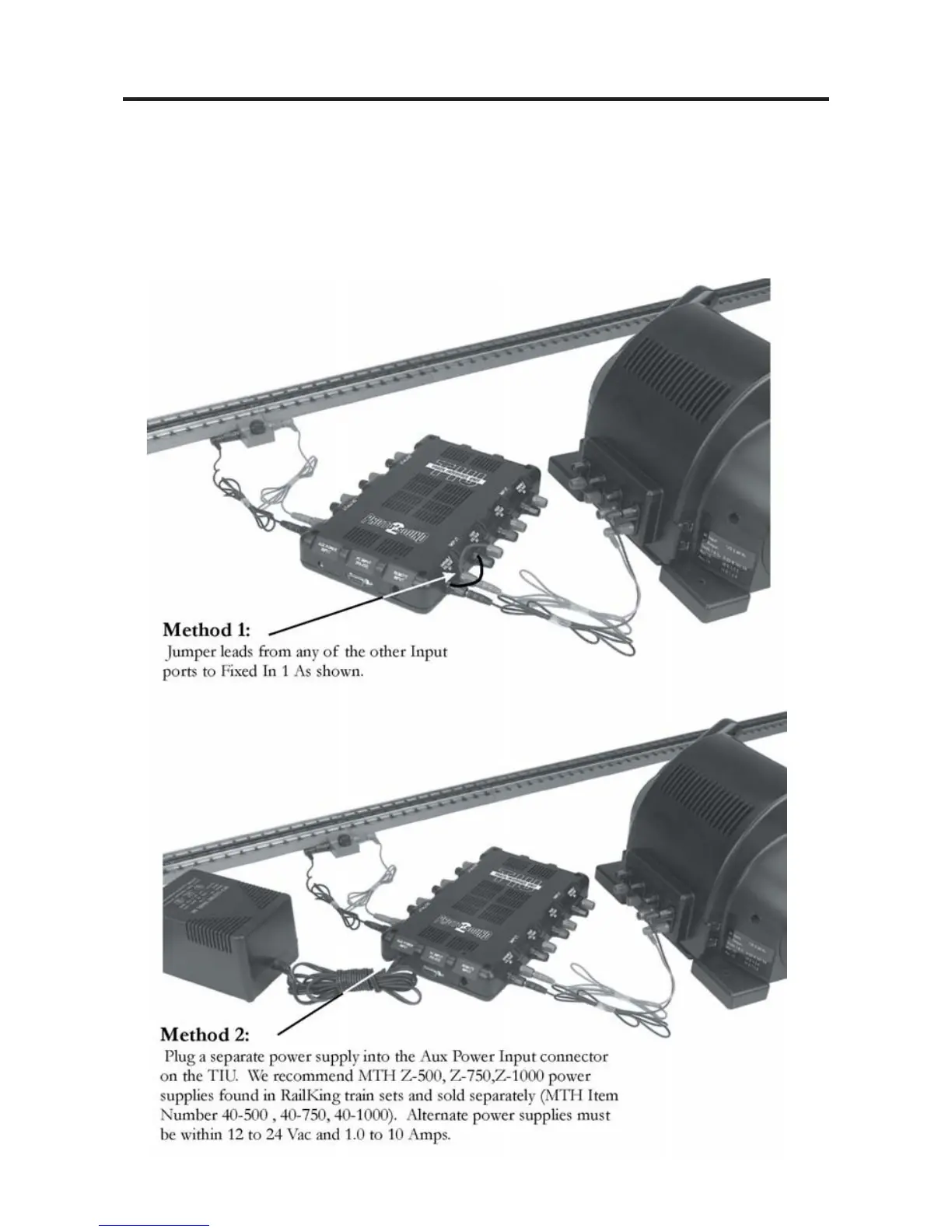

In order for the TIU to function, Fixed In 1 must be connected to the transformer. If
Fixed In 1 is not required because Fixed Out 1 is not connected to any track, two addi-
tional methods are available for powering the TIU.
