DCS Command System User’s Guide
Introduction To DCS

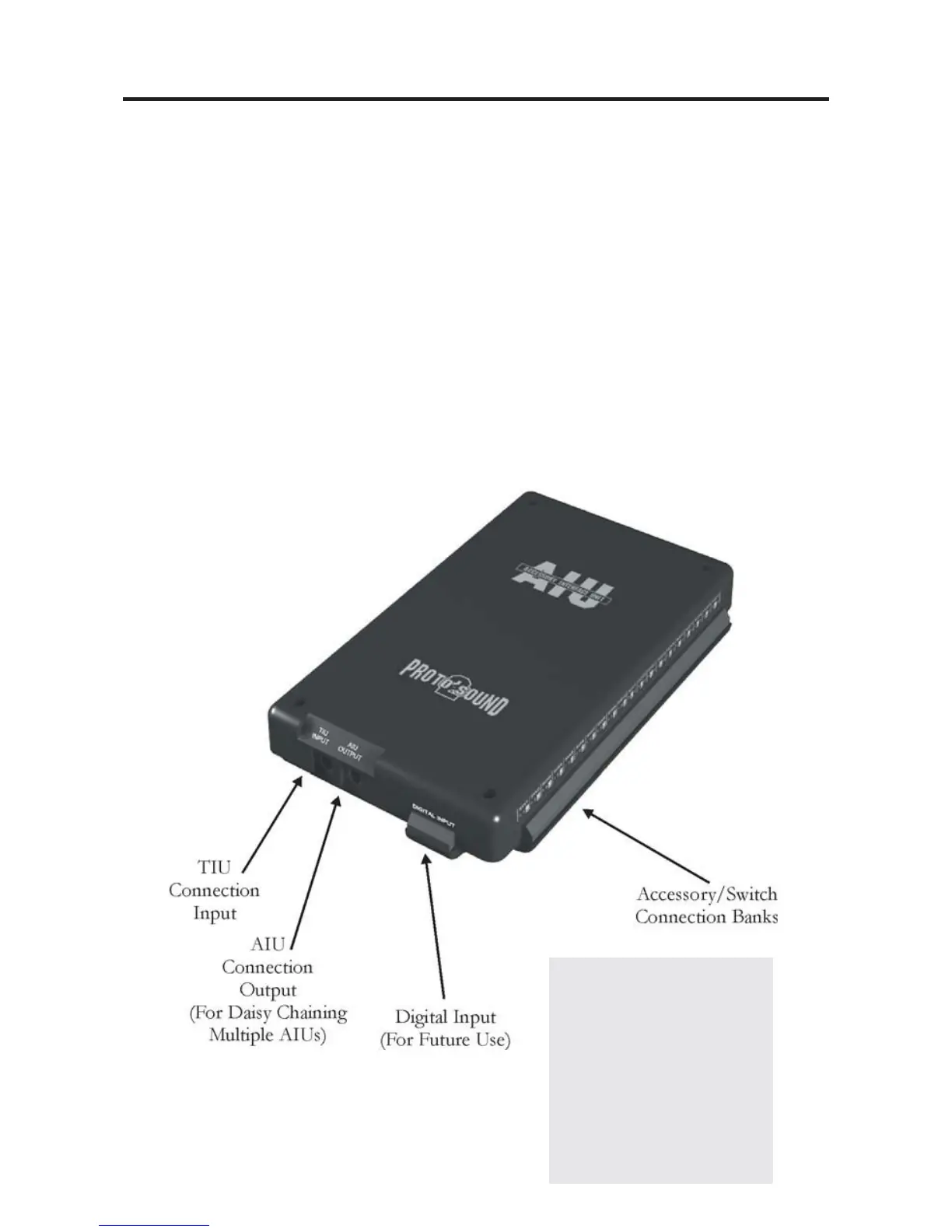

The Accessory Interface Unit
The Accessory Interface Unit, also known as the AIU, plugs into the TIU and controls
any accessory or switch wired to it. Each AIU can control up to 10 switches and 10
accessories and features the ability to turn the accessory on or off, or activate it momen-
tarily.
The AIU essentially acts as a large relay and simply replaces the manual switches that are
normally used to turn on and off model railroading accessories. Connection to the TIU
is done through a special cable (included with the AIU) and up to five AIUs can be daisy-
chained to one TIU.
9
ACC
IN = Armature of Relay
1 = NO (normally open)
2 = NC (normally closed)
SW
IN = AC Common
1 = Straight
2 = Curved
ATTENTION:
Connecting the TIU to the AIU output may cause damage to earlier
model AIU’s.
