VJ-1624 OPERATION MANUAL 2 Product overview
2-3
2.2 Names of parts and functions
This section explains the names and functions of each part.

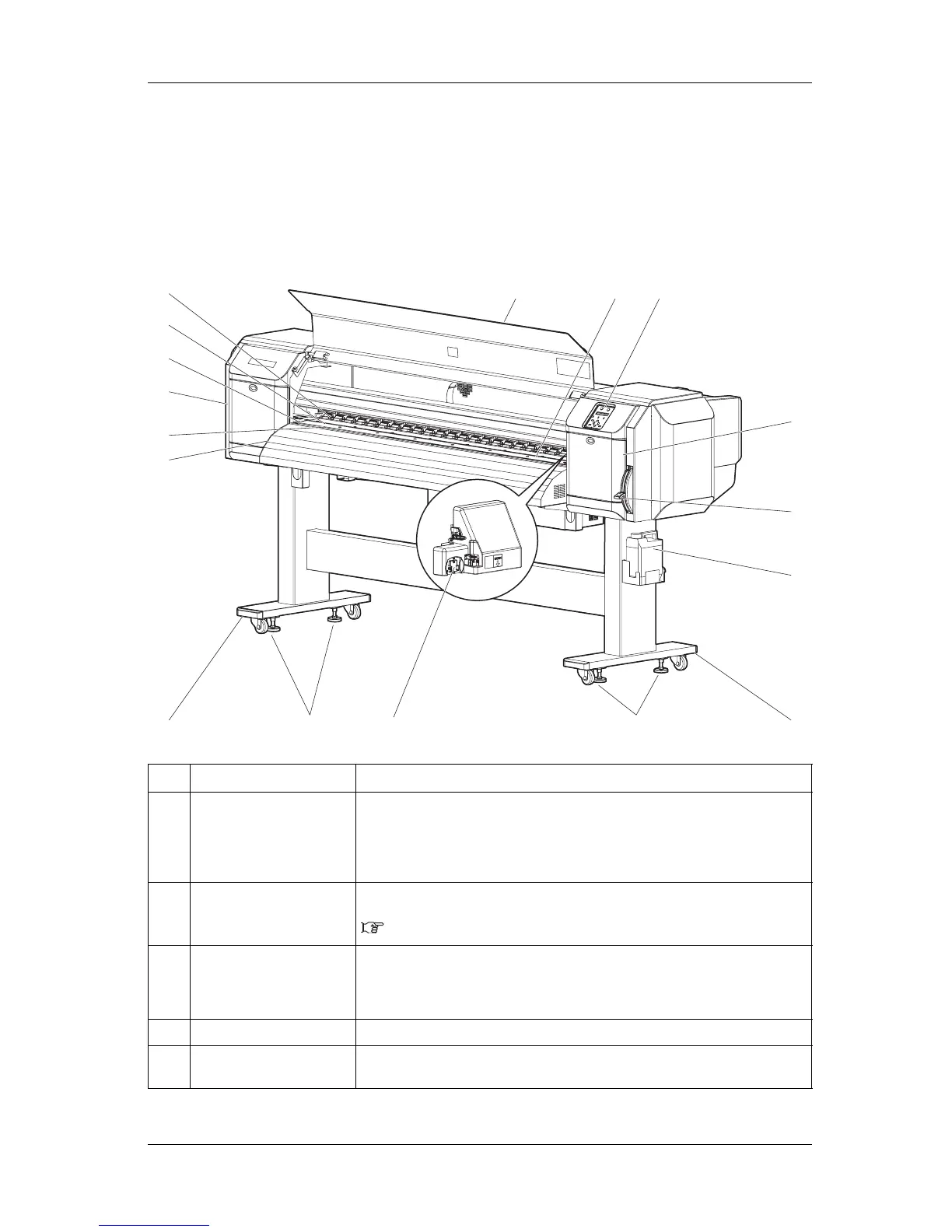

2.2.1 Front section
No. Name Function
1 Media loading lever Used for fixing or releasing media.
• Lower the lever to fix the media.
• Lower the lever more to fix the media firmly.
Used to improve the accuracy of media feeding.
• Raise the lever to release the media.
2 Operation panel Operation condition setting, printer display and various function settings are
performed.
2.2.3 Operation panel
3 Front cover Used for preventing a user from coming in contact with the driving mechanism during
the printer operation.
Opened and closed when media is set or jammed.
It is normally closed.
4 Stand Used when installing the printer on a flat floor.
5 Media guide Used for feeding media smoothly when the media is set or printed.
The heater (dryer) to dry ink is installed inside.
11
1
10
11 23
9
4
13
7
8
5
4
12
9
6
10
