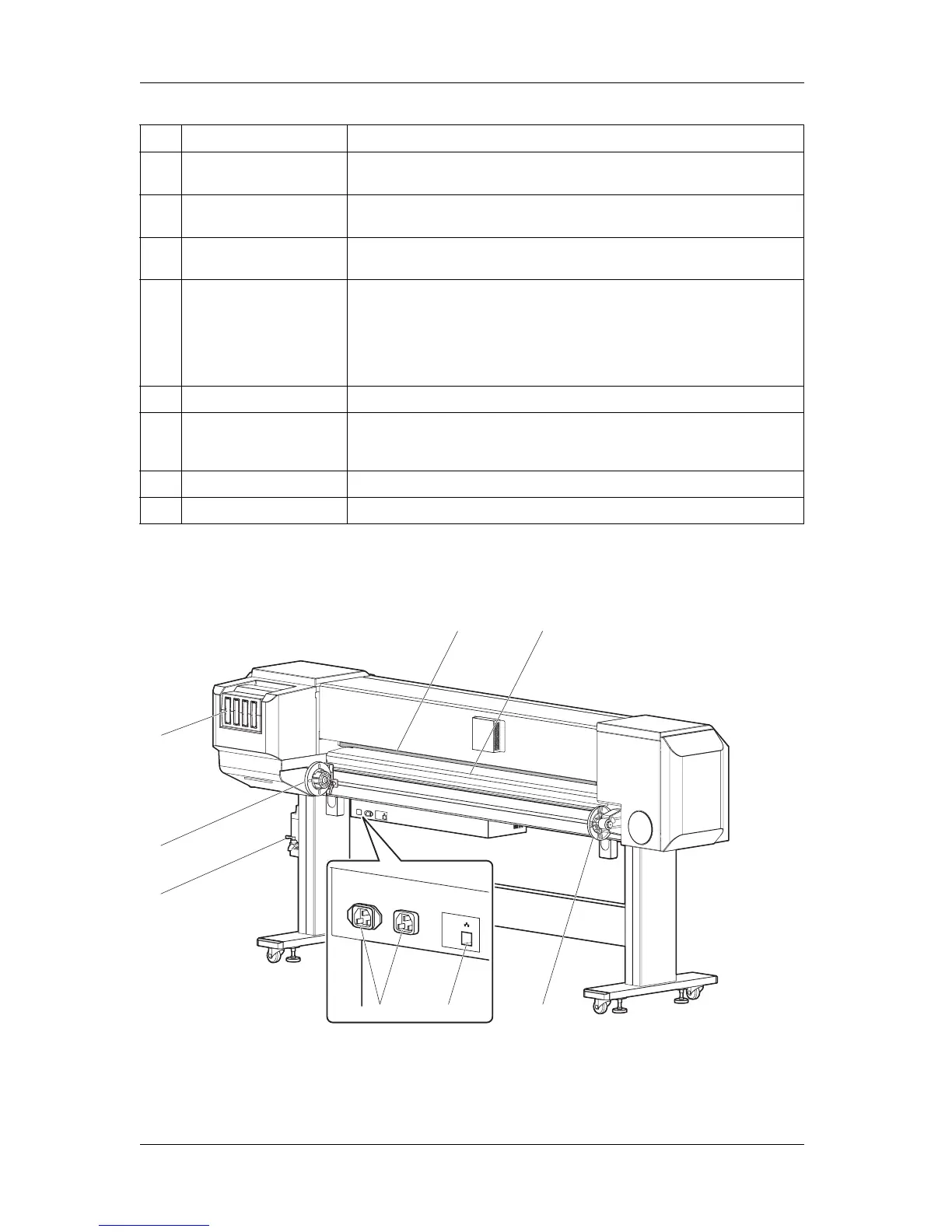

2.2.2 Rear section
6 Platen Installed inside of the front cover.
The heater (platen heater) to dry ink is installed inside.
7 Pressurizing rollers Installed inside of the front cover.
Press and hold the media when printing.
8 Media cut groove Installed inside of the front cover.
Used to cut media straight.
9 Maintenance cover Used to prevent the user from touching the inner mechanical section.
Open and close in the following cases.
• When cleaning the cleaning wiper
• When cleaning around the print head.
• When replacing the cutter
It is normally closed.
10 Adjuster Used to install the printer horizontally.
11 Media holder plate Installed inside of the front cover.
By attaching media holder plates to both sides of the media, it is possible to prevent
warpage.
12 Connector Used to install spectrophotometer (SPECTROVUE VM-10).
13 Waste fluid tank Used for collecting waste ink discharged from the printer.
