VJ-1624 OPERATION MANUAL 3 Before using
3-47
• After the confirmation pattern is printed, "Adj.1: Confirm Ptn." is displayed on the operation
panel.

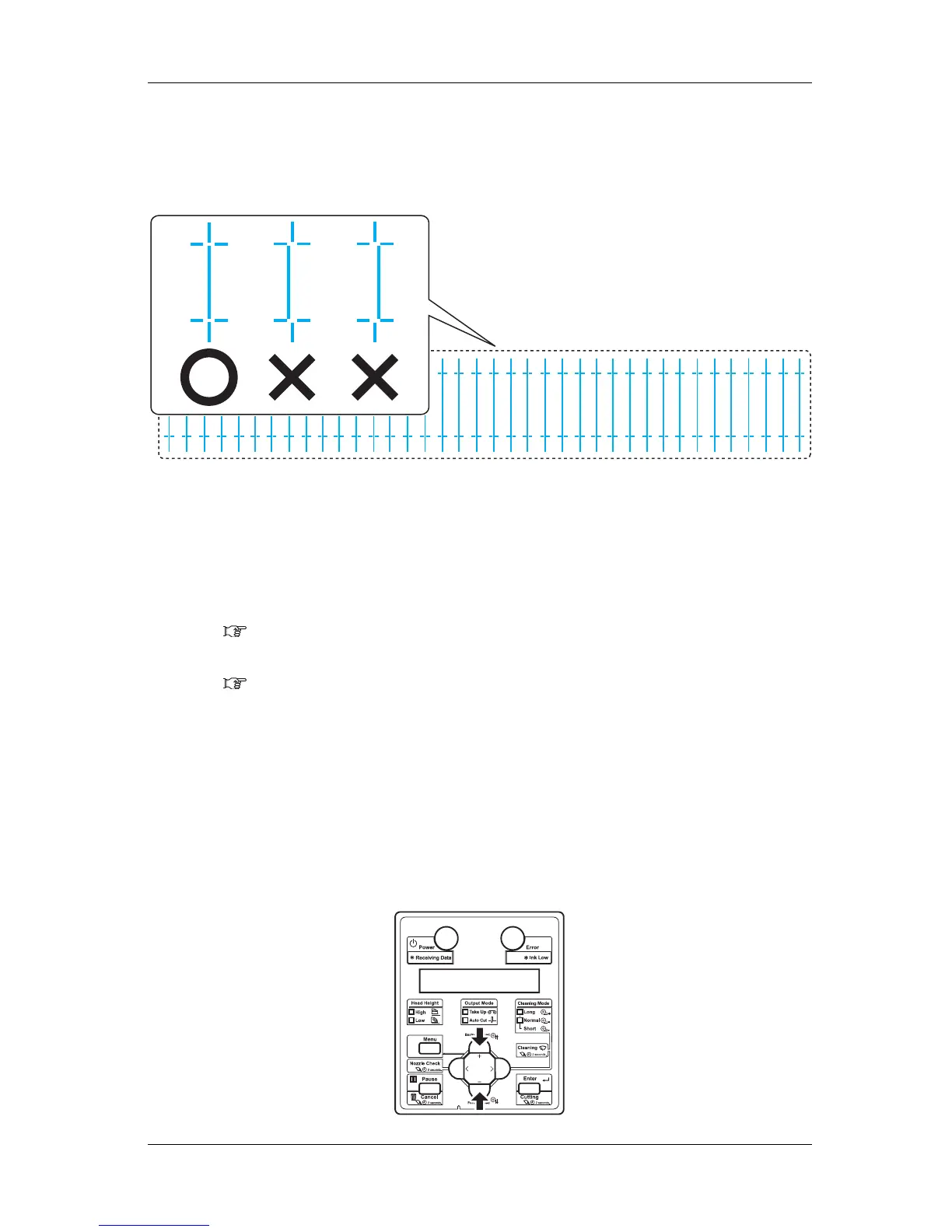

4. Confirm that the confirmation pattern printing result is as follows.
a. When the printing result is OK;
You do not need perform Adjust Print.
The procedure for Adjustment is complete.
b. When the printing result is ×:
you need to perform Alignment.
• Perform rough adjustment when the misalignment is big.
3.6.1.2 Standard Rough Adjustment Pattern
• Perform micro adjustment when the misalignment is small.
3.6.1.3 Standard Micro Adjustment Pattern
3.6.1.2 Standard Rough Adjustment Pattern
Check the confirmation pattern, and when the misalignment is big, perform rough adjustment.
Print a rough adjustment pattern and register the setting value.
1. Display the Adjust Print menu on the operation panel in the same way as in step 2 of "3.6.1.1
Standard Confirmation Pattern"
2. Press the [+] key or [-] key to select "Adj.2: Rough Pattern".
To Next Page
