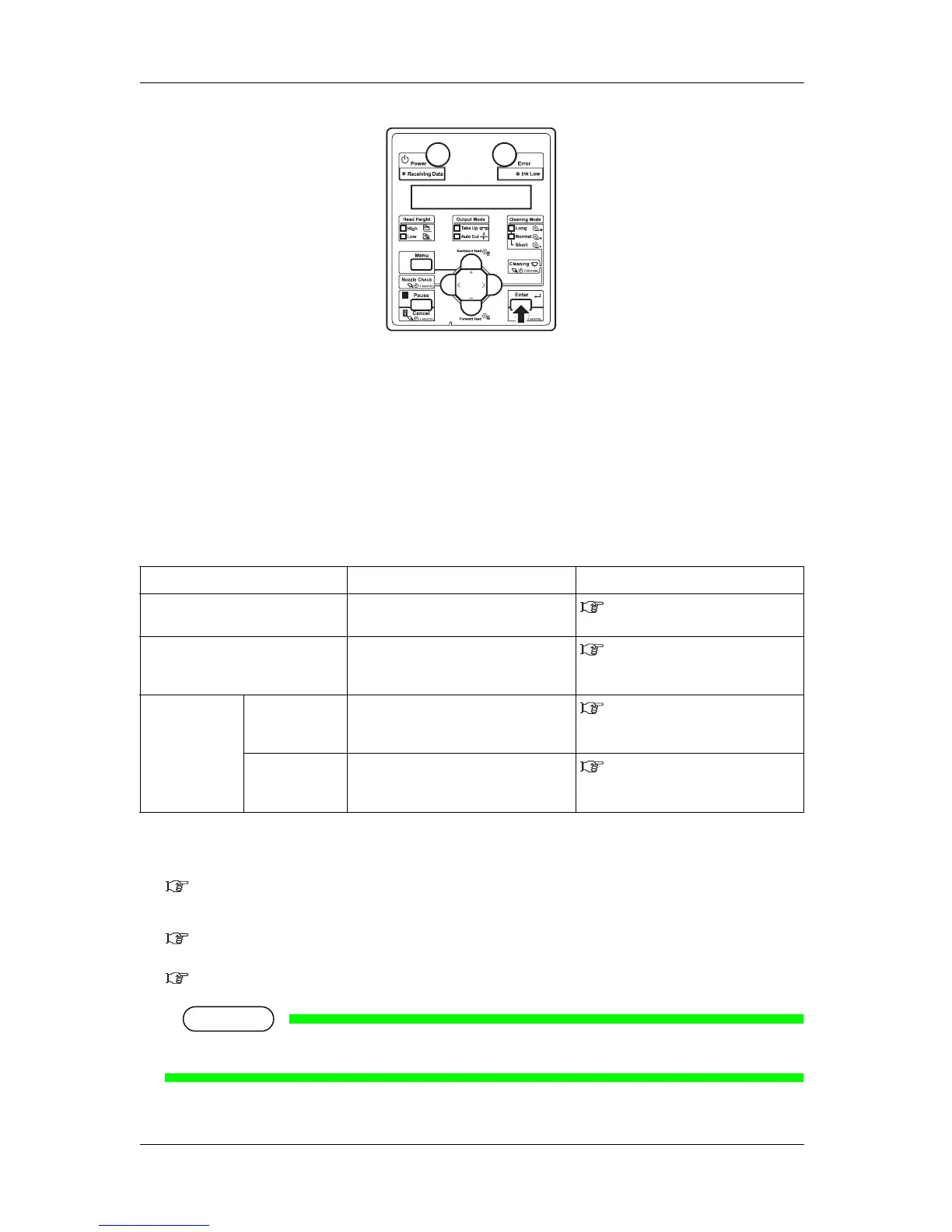

3 Before using VJ-1624 OPERATION MANUAL
3-52
• The value is set in the "Pattern: *" (* indicates a number from 1 to 7).
• The operation panel display returns to "Adj.3: Fine Pattern".
3.6.2 Custom Adjustment Pattern
All patterns from A to F can be adjusted.
By performing this adjustment, all print modes will be adjusted.
This menu is made up with the following menus.
Follow the procedure below to adjust print quality.
1. Print the confirmation pattern and check the amount of misalignment.
3.6.2.1 Custom Confirmation Pattern
2. Perform rough adjustment when the misalignment is big.
3.6.2.2 Custom Rough Adjustment Pattern
Perform micro adjustment when the misalignment is small.
3.6.2.3 Custom Micro Adjustment Pattern
NOTE
• Perform rough adjustment first when the amount of misalignment cannot be judged.
Menu Name Description Reference
Custom Confirmation Pattern Print the confirmation patterns A to F and
check the amount of misalignment.
3.6.2.1 Custom Confirmation Pattern
Custom Rough Adjustment Pattern Perform this adjustment when the
misalignment is big.Adjust all
confirmation patterns A to F.
3.6.2.2 Custom Rough Adjustment
Pattern
Custom Micro
Adjustment
Pattern
Adj. PatternALL Perform this adjustment when the
misalignment is small.Adjust all
confirmation patterns A to F.
3.6.2.3.1 Adj. PatternALL
Each Adjust
Patterns
Perform this adjustment when the
misalignment is small.Adjust all
confirmation patterns A to F.
3.6.2.3.2 Each Adjust Patterns
To Next Page
