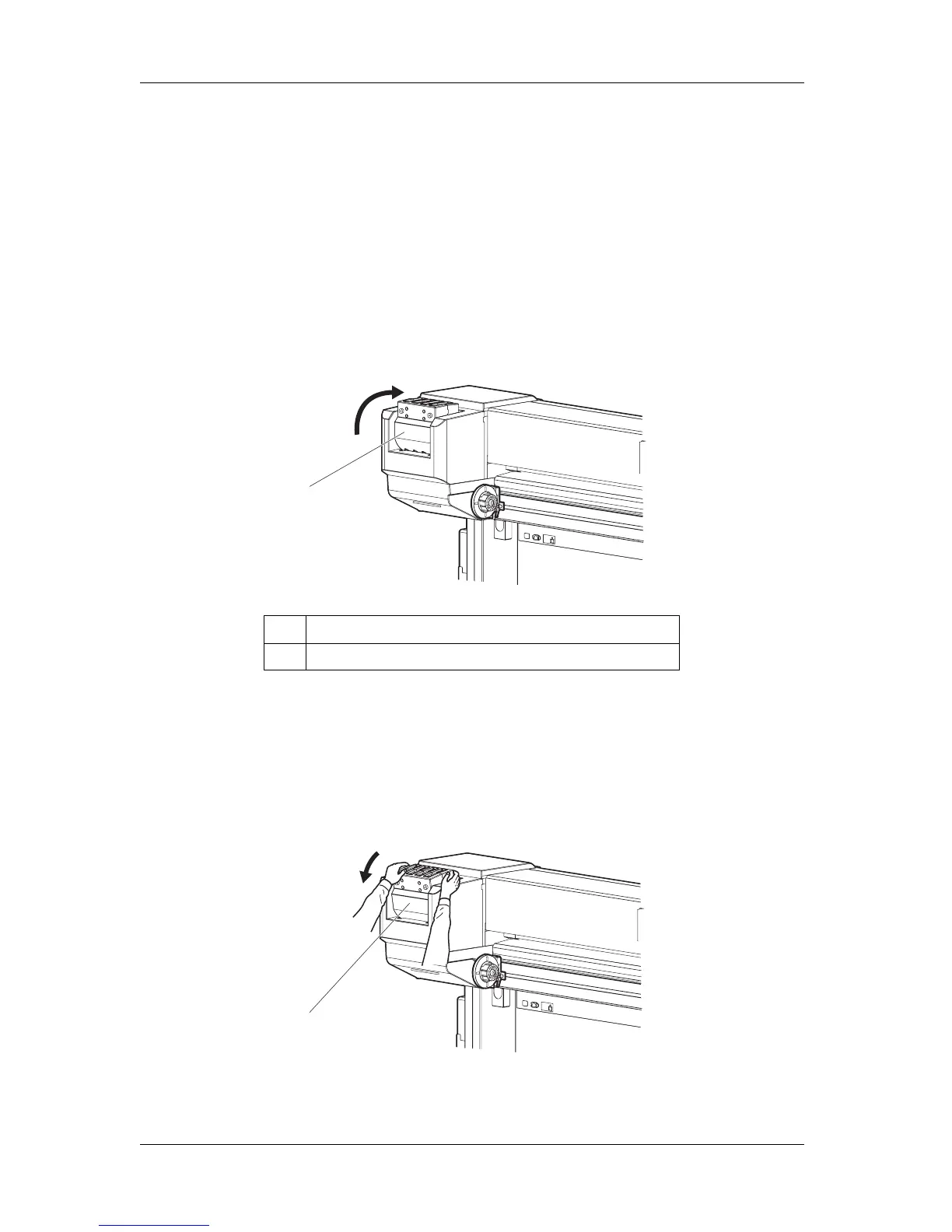

3.3.5 Changing the angle of the ink cartridge slot
The angle of the ink cartridge slot of this printer varies depending on the capacity of ink cartridges (or
ink packs).
Follow the procedure below to change the angle.
3.3.5.1 When inserting the ink cartridges from above the printer
Before installing the 440ml cartridges, change the angle as follows.
1. Rotate the ink cartridge slot by 90 degrees upward.
2. Check if the ink cartridge slot is vertical.
3.3.5.2 When inserting the ink cartridges horizontally
Before installing the high capacity pack adapter, change the angle as follows.
1. Tilt the ink cartridge slot slightly toward the rear side of the printer.
No. Name
1 Ink cartridge slot
1
1
To Next Page
