VJ-1624 OPERATION MANUAL 3 Before using
3-33

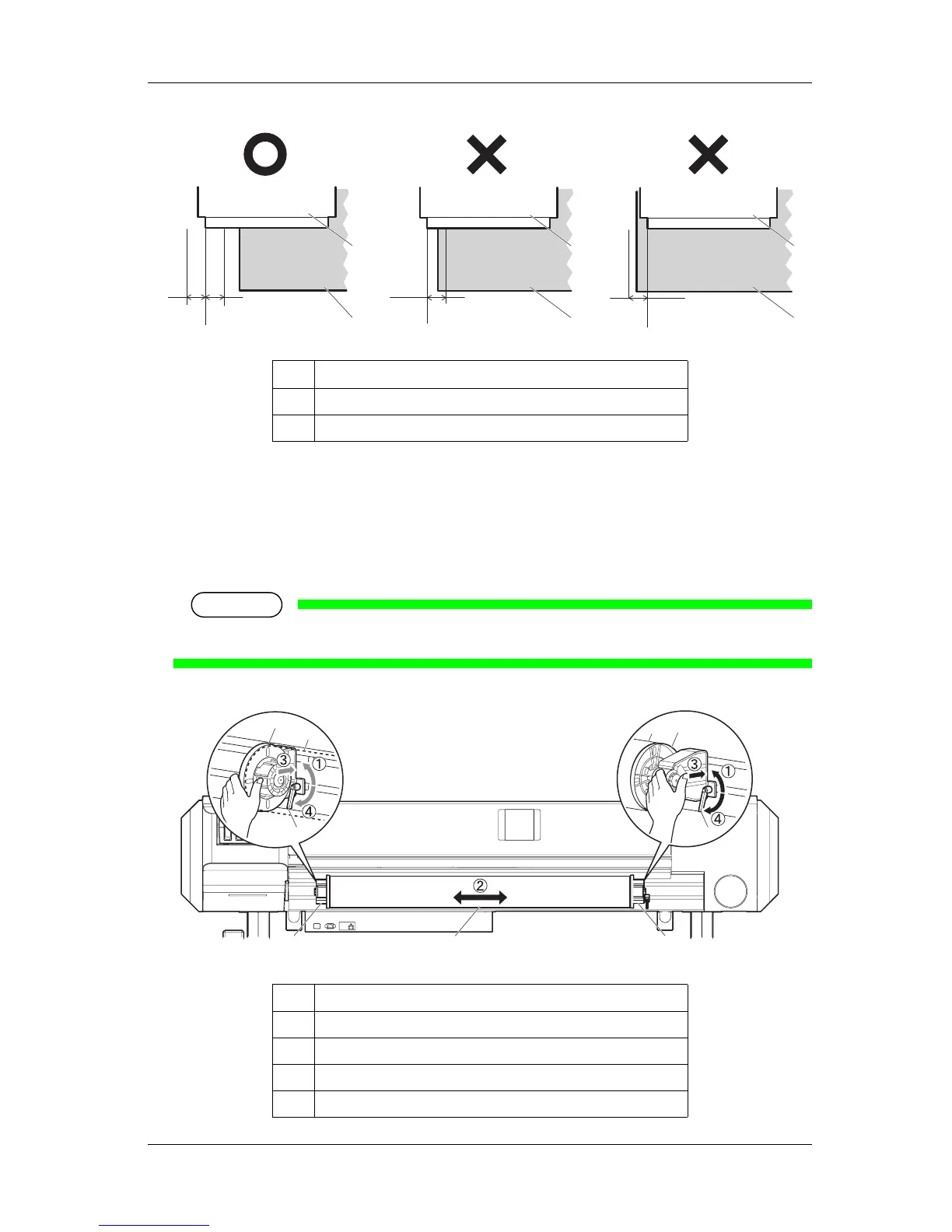

7. If the edge of the roll media is set less than 5 mm from the edge of the pressurizing roller, follow the
procedure below to adjust the position of the roll media.
a. Loosen the fixing levers of the right and left roll media holders, and move the roll media to left
or right.
b. After moving the roll media, fix it with fixing levers of the right and left roll media holders.
NOTE
Fix the roll media holders by pressing the holders to the printer.
No. Name
1 Roll media
2 Pressurizing rollers
No. Name
1 Roll media holder (Left)
2 Roll media holder (Right)
3 Roll media
4 Fixing lever
5mm 5mm 5mm5mm
2
1
2
1
2
1
2
3
31 2
1
3
4
4
