Oce PlotWave 360 - Replacing Media Rolls

Replace the Media
The media drawer

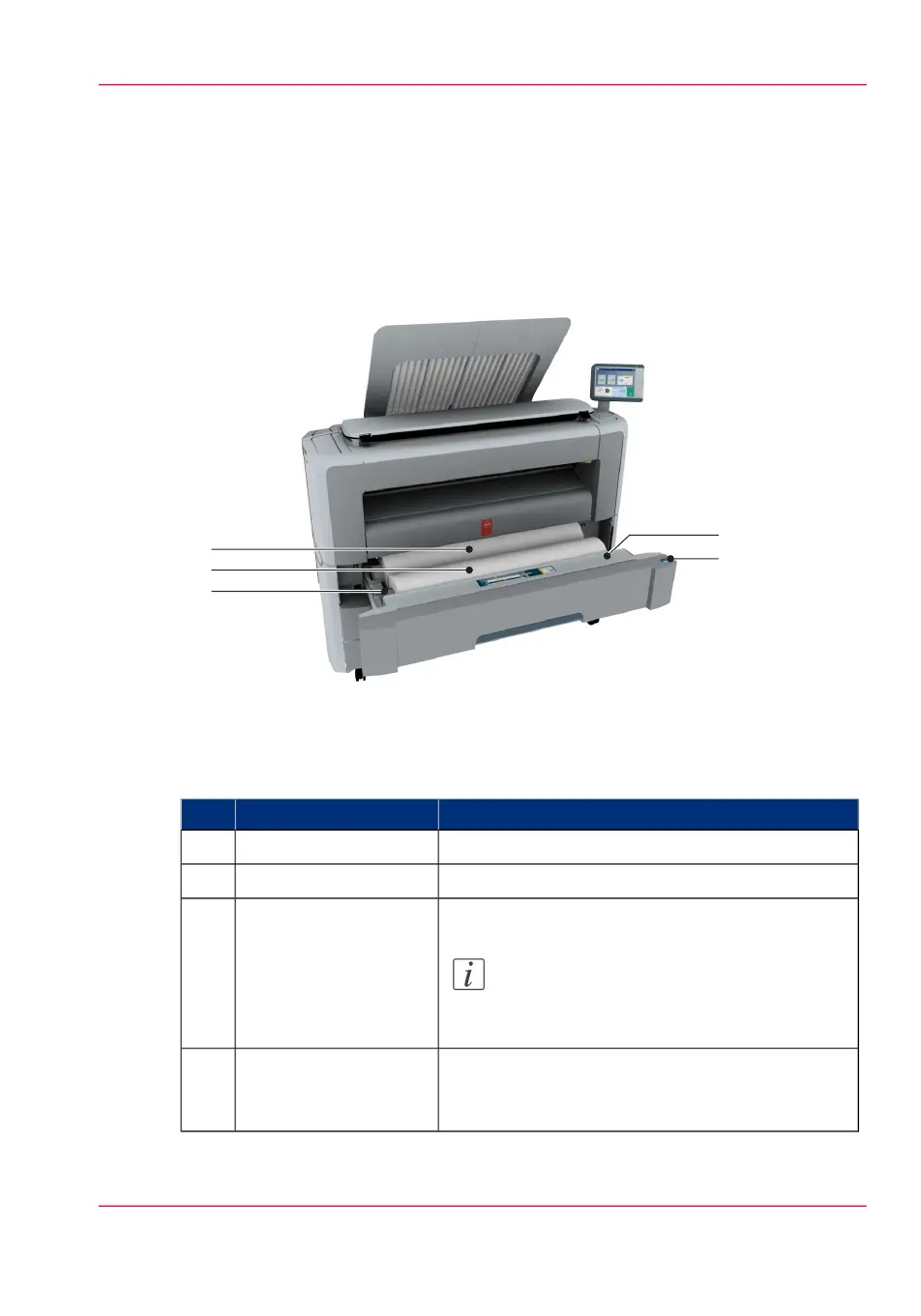

Illustration
1
2
3
5
4
Component - function table
#
Description / FunctionComponentNr
Carries the media rollroll holder1
Media placed on roll holder in first position.media roll 12
Media placed on roll holder in second position.
Note:
The scanner calibration sheet is located at
the back of roll 2.
media roll 2 (optional)3
Groove integrated behind the front cover of the
media drawer, on which the media can be easily
loaded.
roll loading station4
