Oce PlotWave 360 User Manual

2.

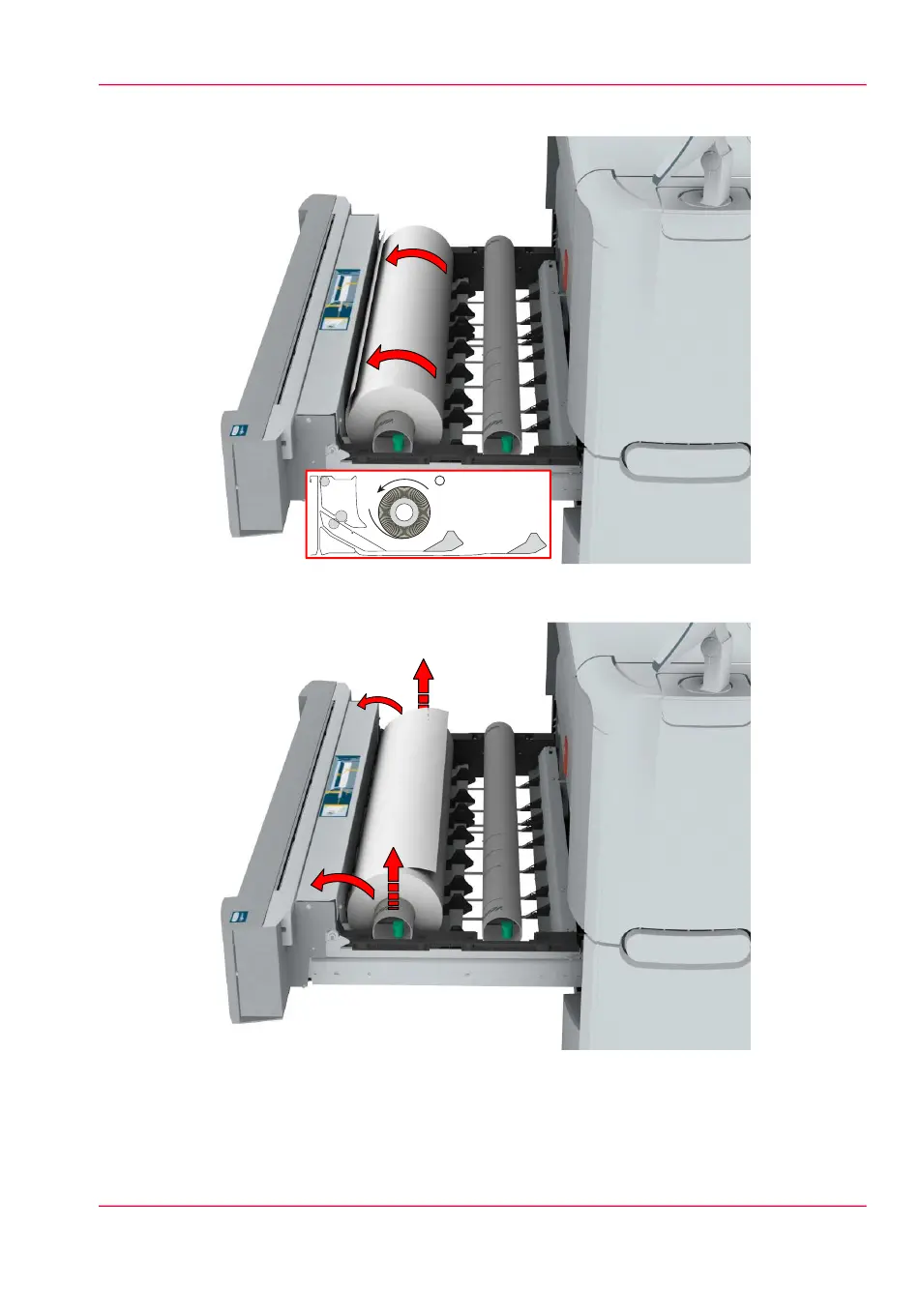

Roll the media back manually, to remove the media from the metal paper guide.
1
3.
Use both hands (as indicated) to lift the roll holder with the media roll, and put it on the
roll loading station.
4.
Pull the handle of the roll holder locking mechanism towards you, and remove the roll
holder from the core of the media roll.
Chapter 5 - Maintain the Printing System 295
Remove a media roll

Oce PlotWave 360 Specifications

General

Print Technology	Océ Radiant Fusing technology
Resolution	600 x 1200 dpi
Maximum Media Width	36 inches
Print Speed	6 A1/D prints per minute
Media Handling	2 rolls
Warm-up Time	Instant On
Weight	195 kg
Media Width	Up to 36 inches
