© 2011 Omnicell, Inc. 1-, 2-, 3-Cell Color Touch Installation and Service Guide/67-2014 Rev G
Installing a G4 Console 12-5
Prepare for Installation of the G4 Console

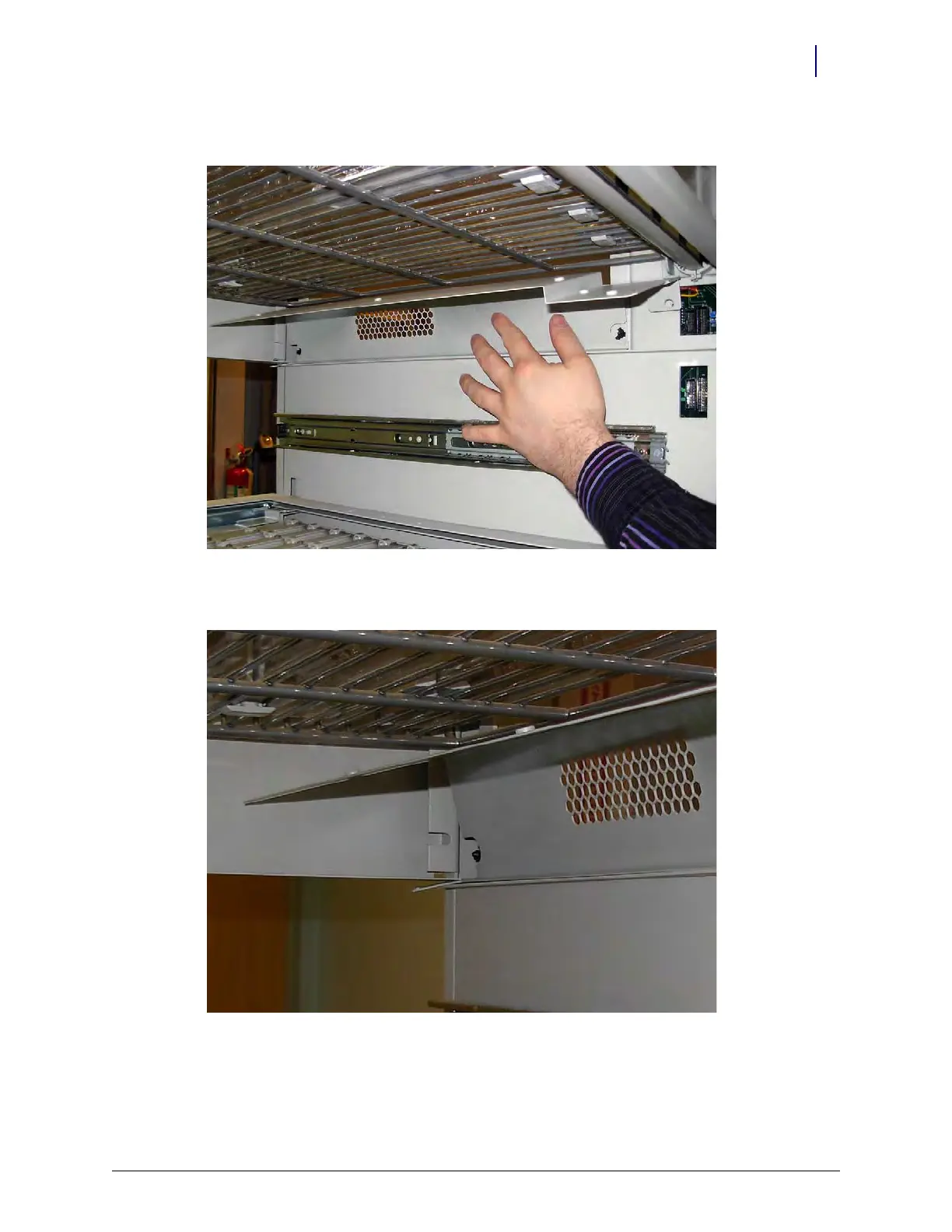

1. Place the smaller cover on the right side of the console enclosure and set it on the ridge.
Figure 12-7. Place the smaller cover in the enclosure
2. Ensure that the tab of the small cover is positioned below the rear and side flange of the frame.
Figure 12-8. Ensure the tab is below the rear and side flange
